Tire Pressure Monitoring System Coupe
Tire Pressure Monitoring System Coupe

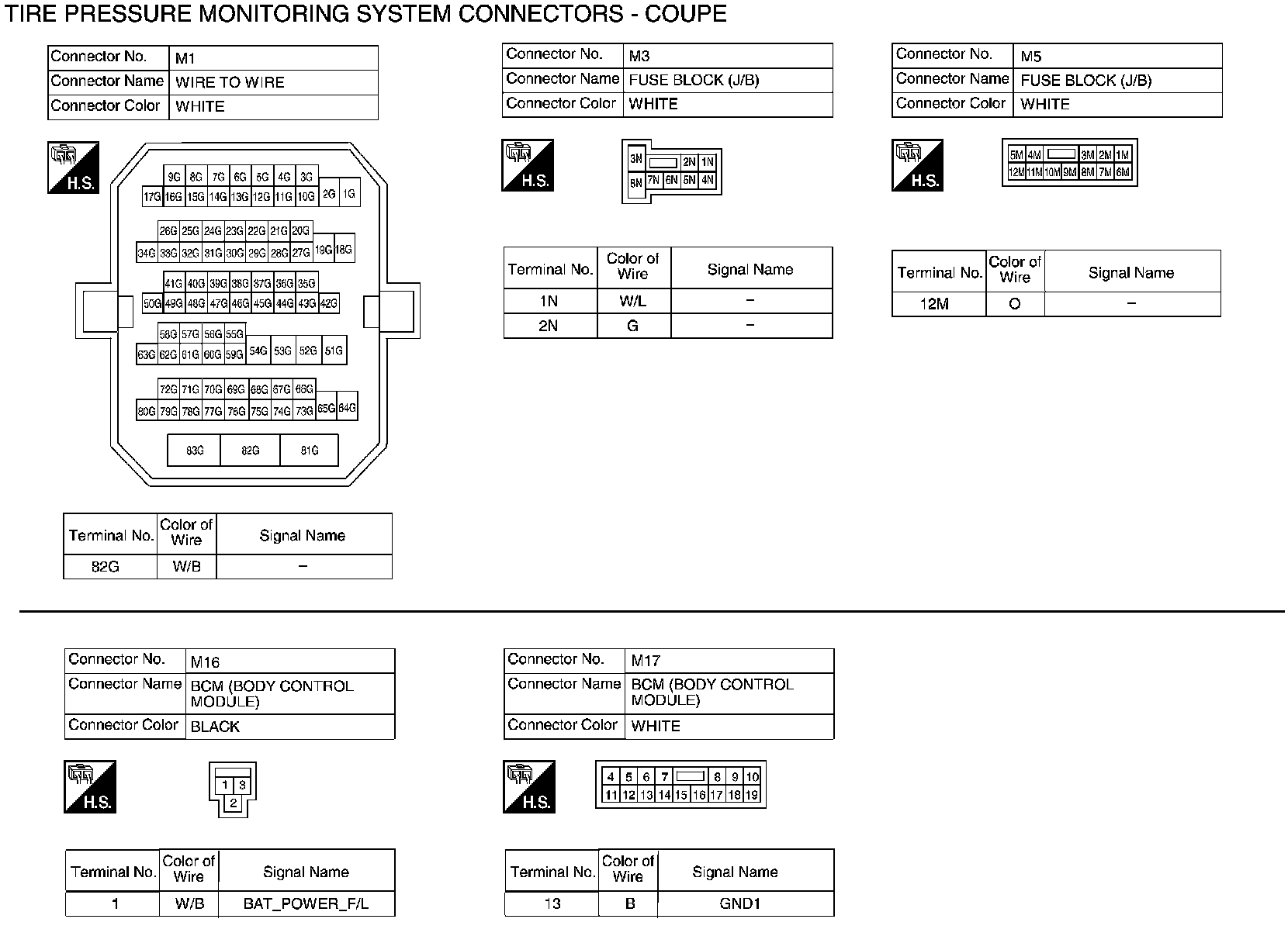

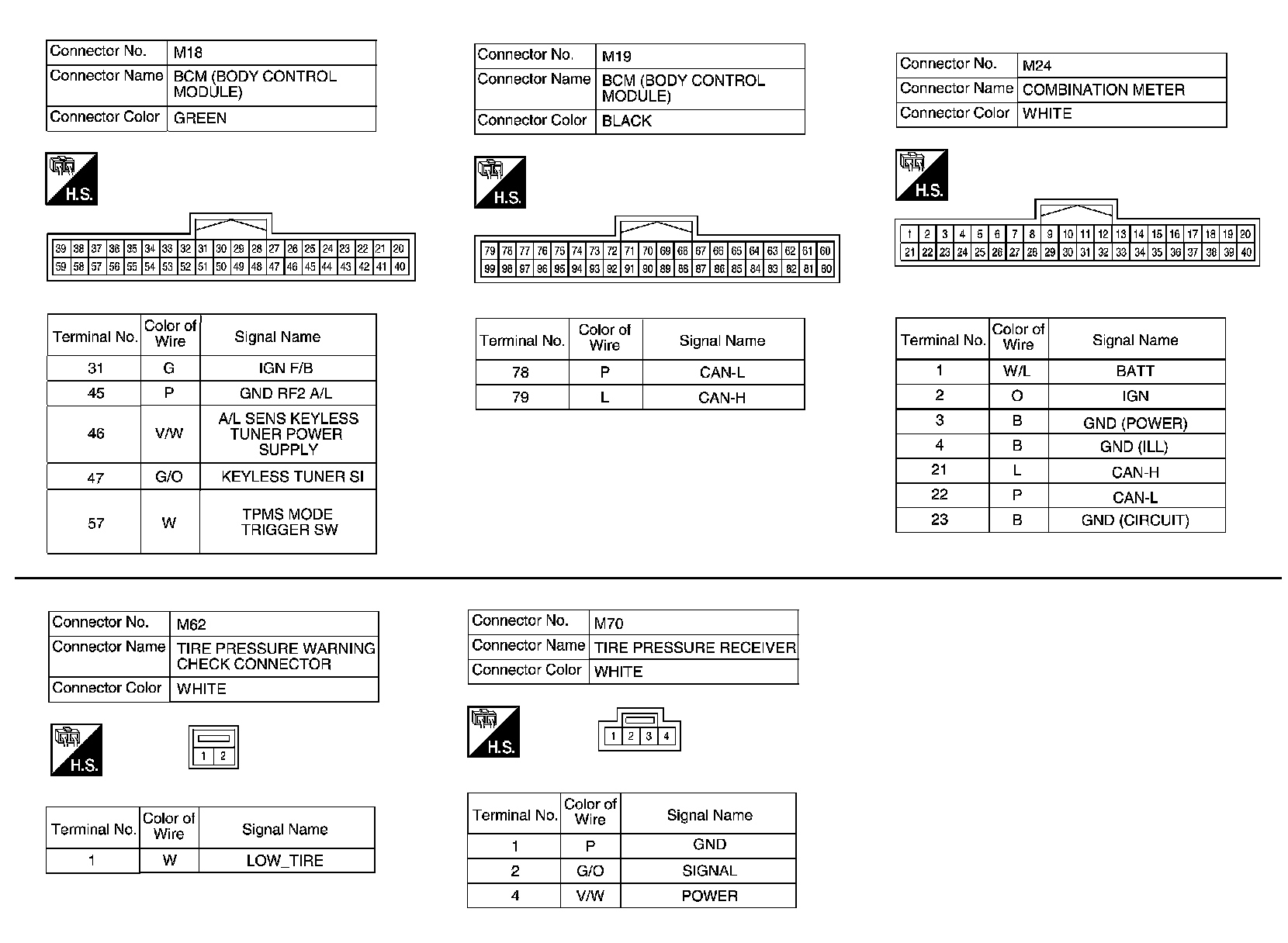

TIRE PRESSURE MONITORING SYSTEM
Wiring Diagram -- Coupe
