Trunk / Liftgate Switch
>>
Trunk Lid Opener Sedan Without Intelligent Key
Trunk Lid Opener Sedan Without Intelligent Key

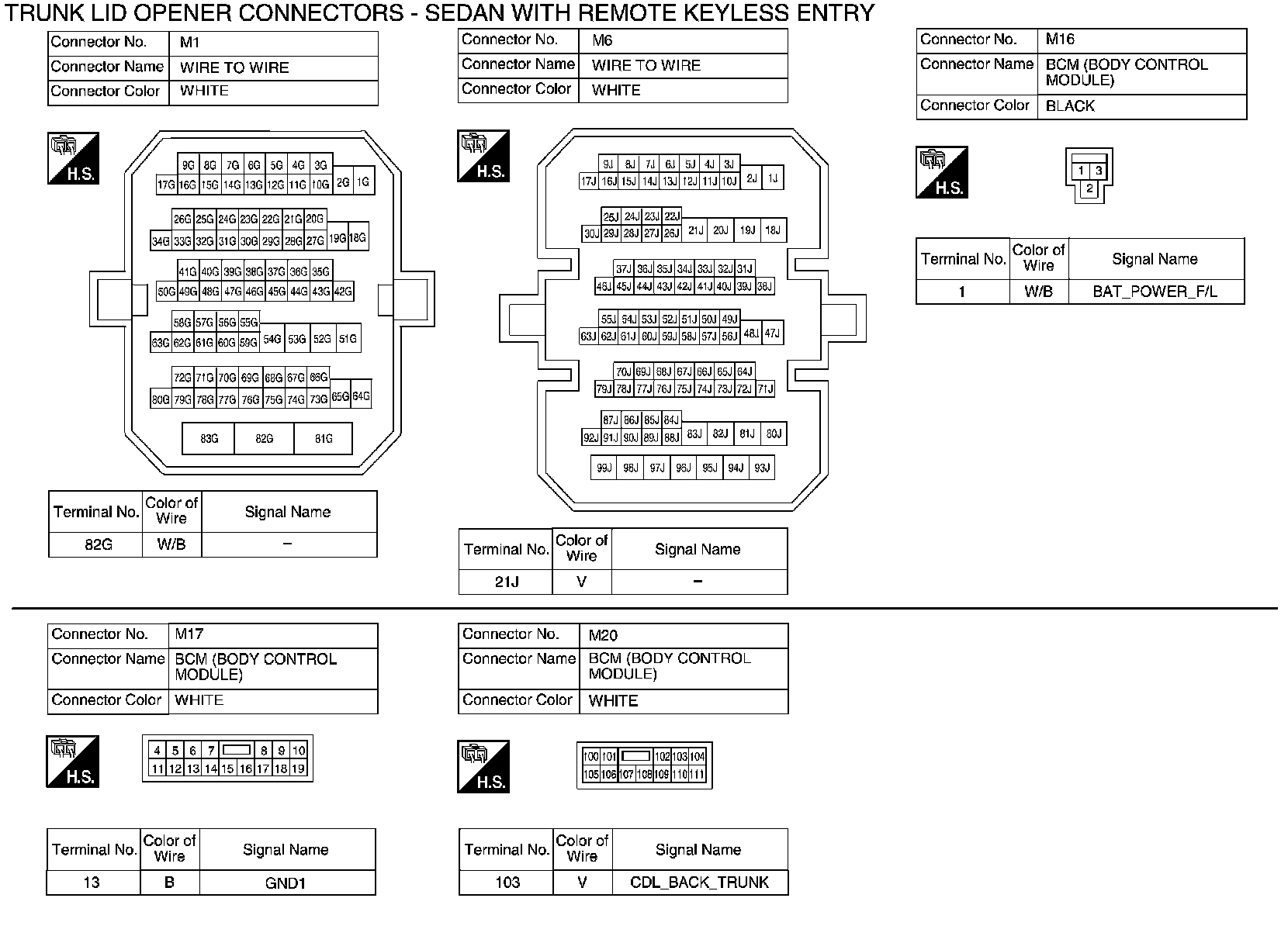

TRUNK LID OPENER
Wiring Diagram - Sedan With Remote Keyless Entry
