Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2011
>>
Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Sedan With Left Front Only Power Window Anti- Pinch
Sedan With Left Front Only Power Window Anti- Pinch
POWER WINDOW SYSTEM

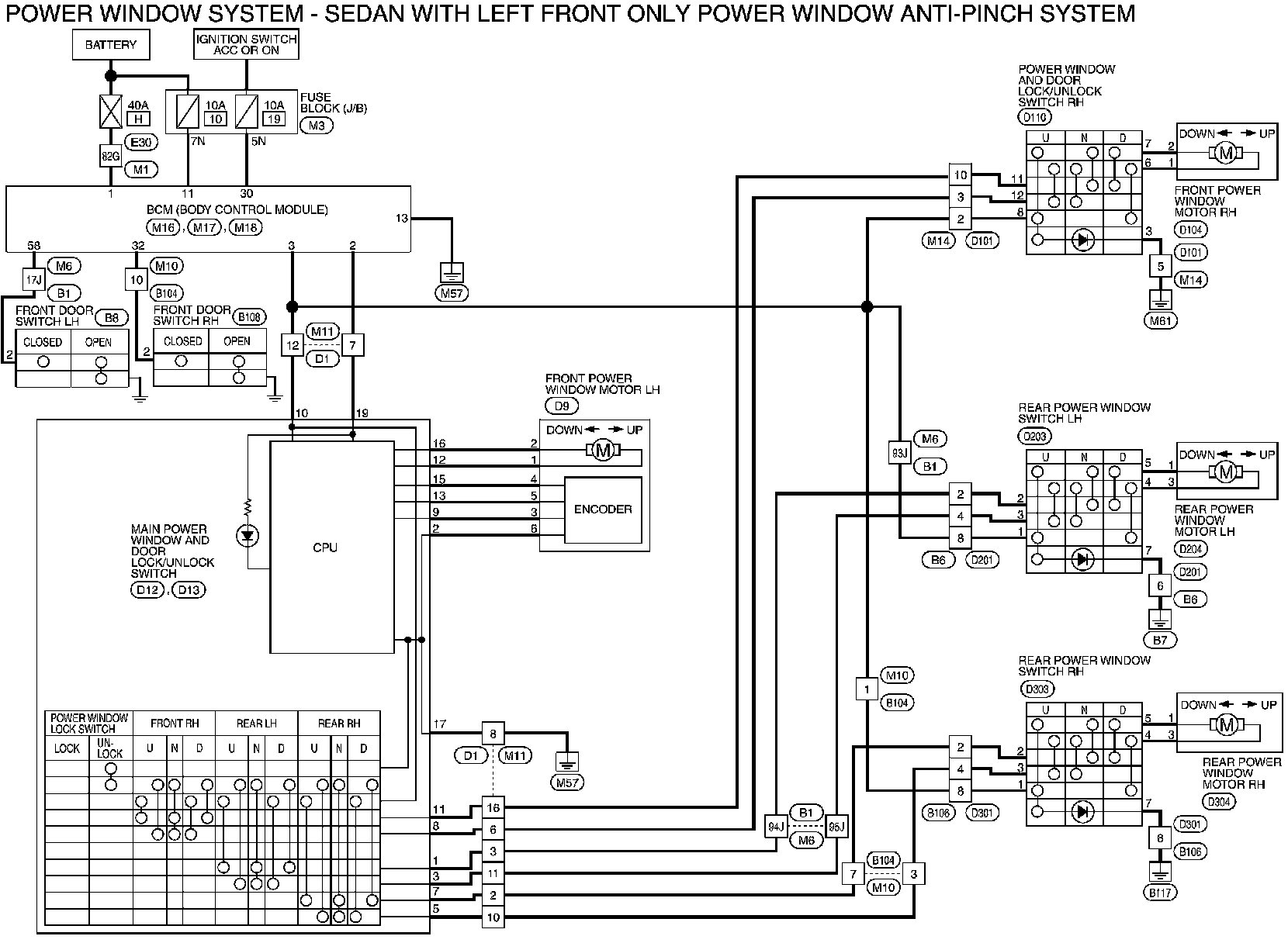

Wiring Diagram - Sedan With Left Front Only Power Window Anti- Pinch
