Compressor Clutch Relay: Locations





FUNCTION INFORMATION

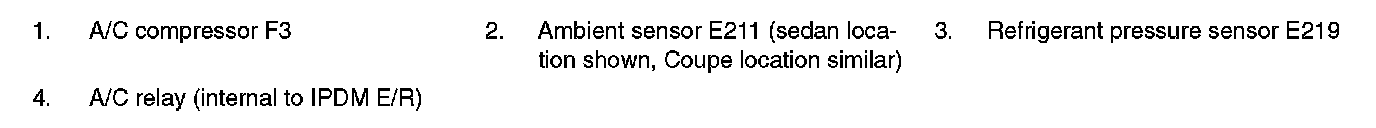

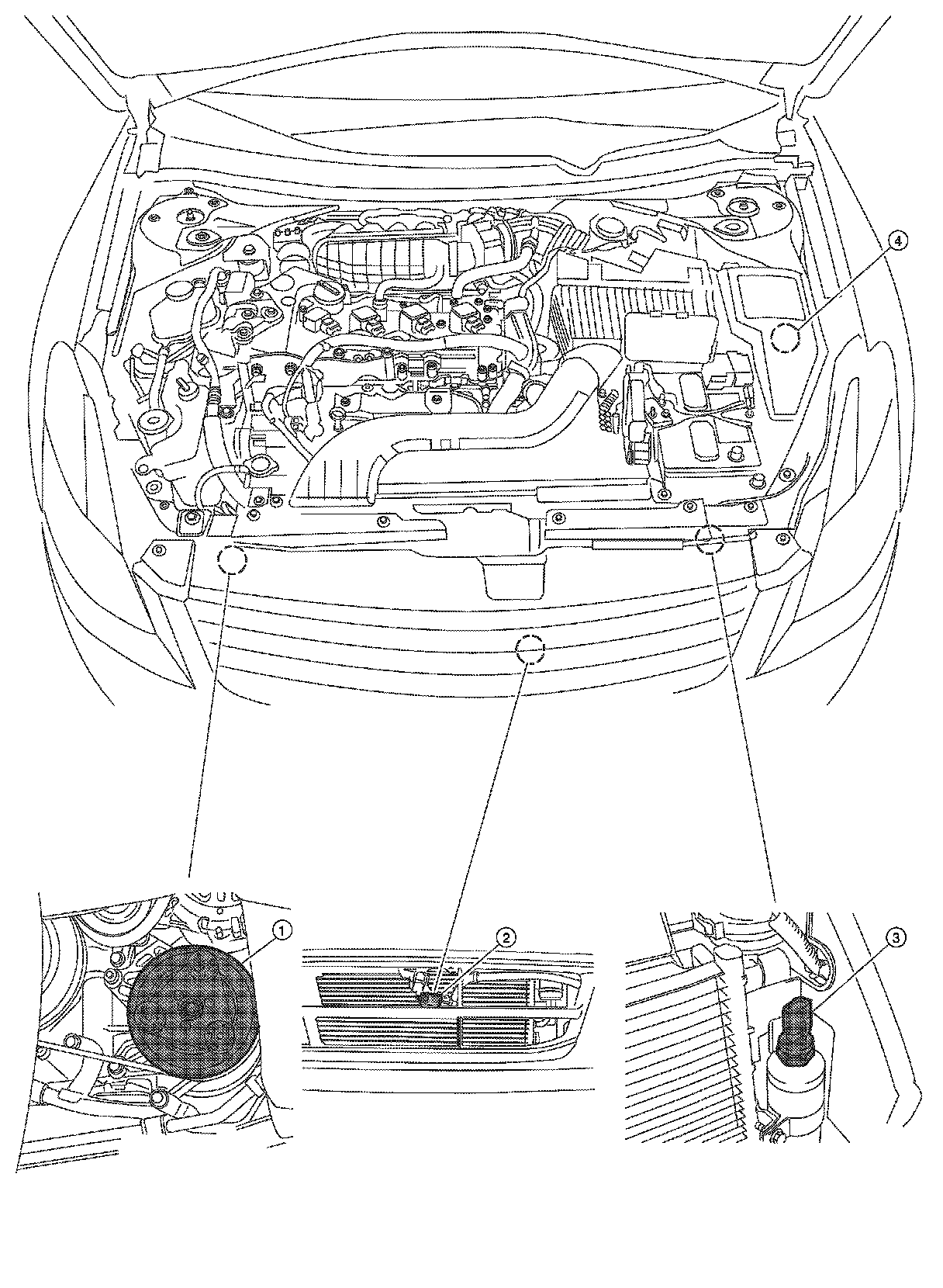

Component Part Location


ENGINE COMPARTMENT
QR25DE Models
