Ignition Power Supply Coupe





POWER SUPPLY ROUTING CIRCUIT

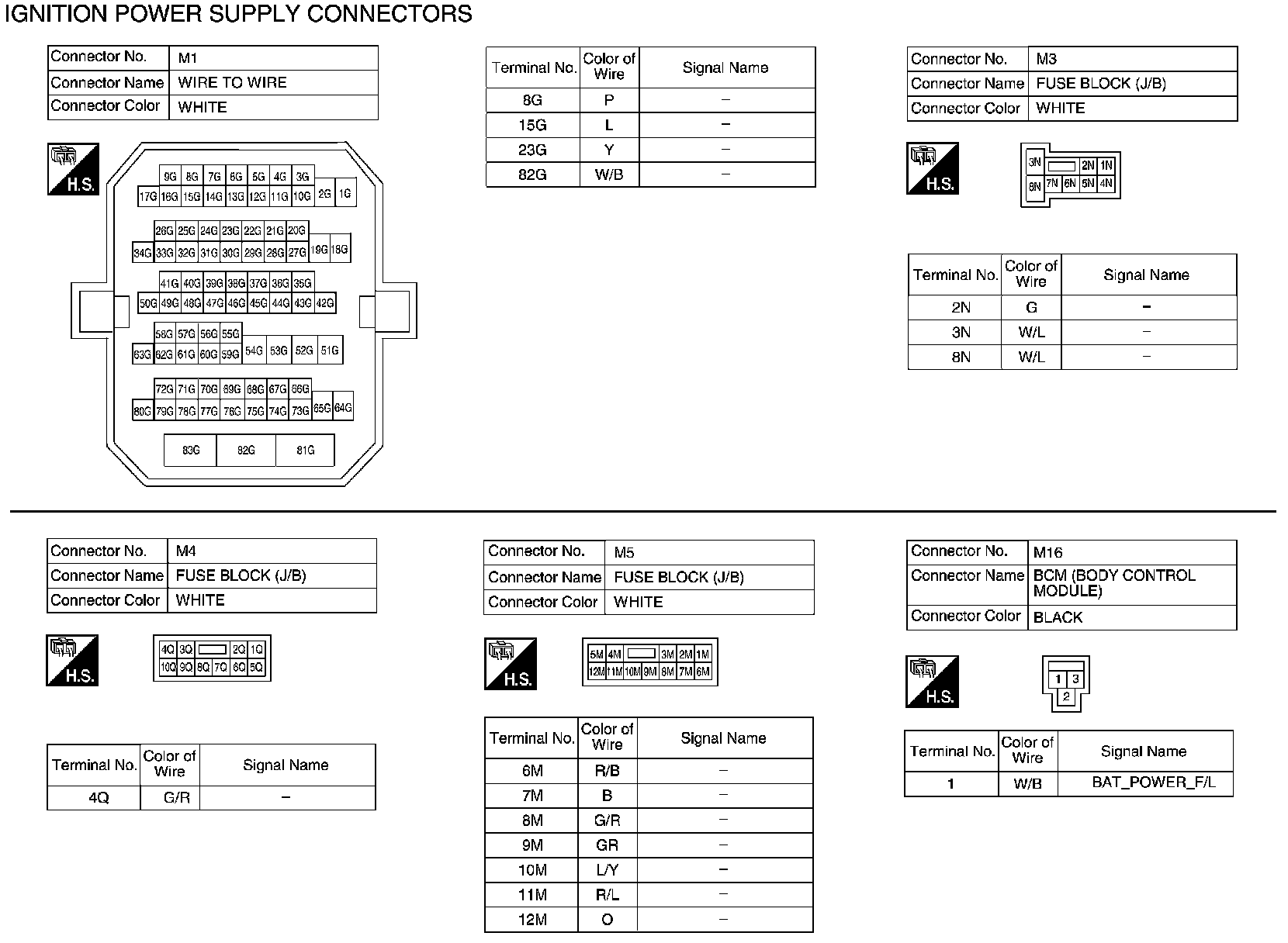

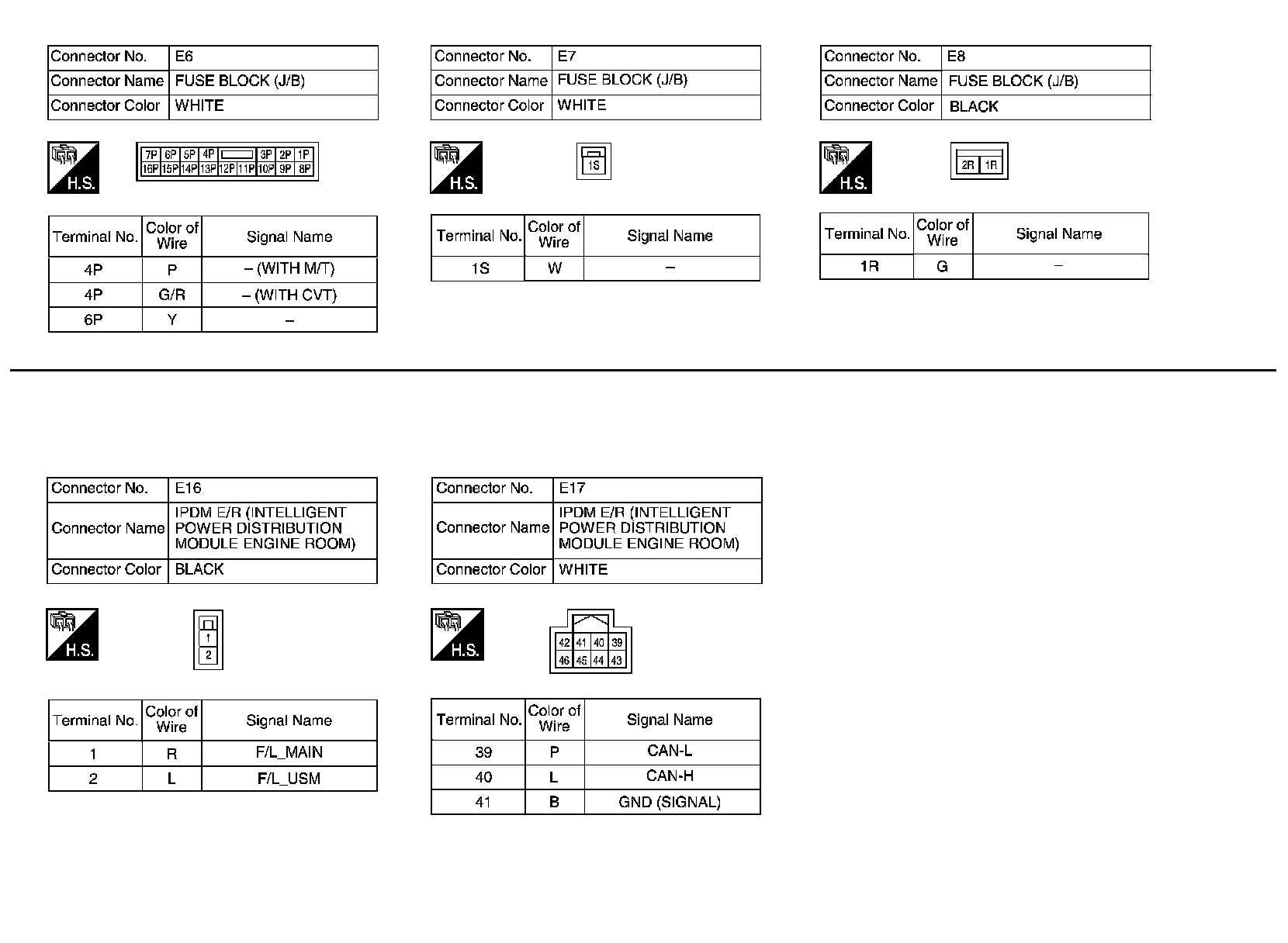

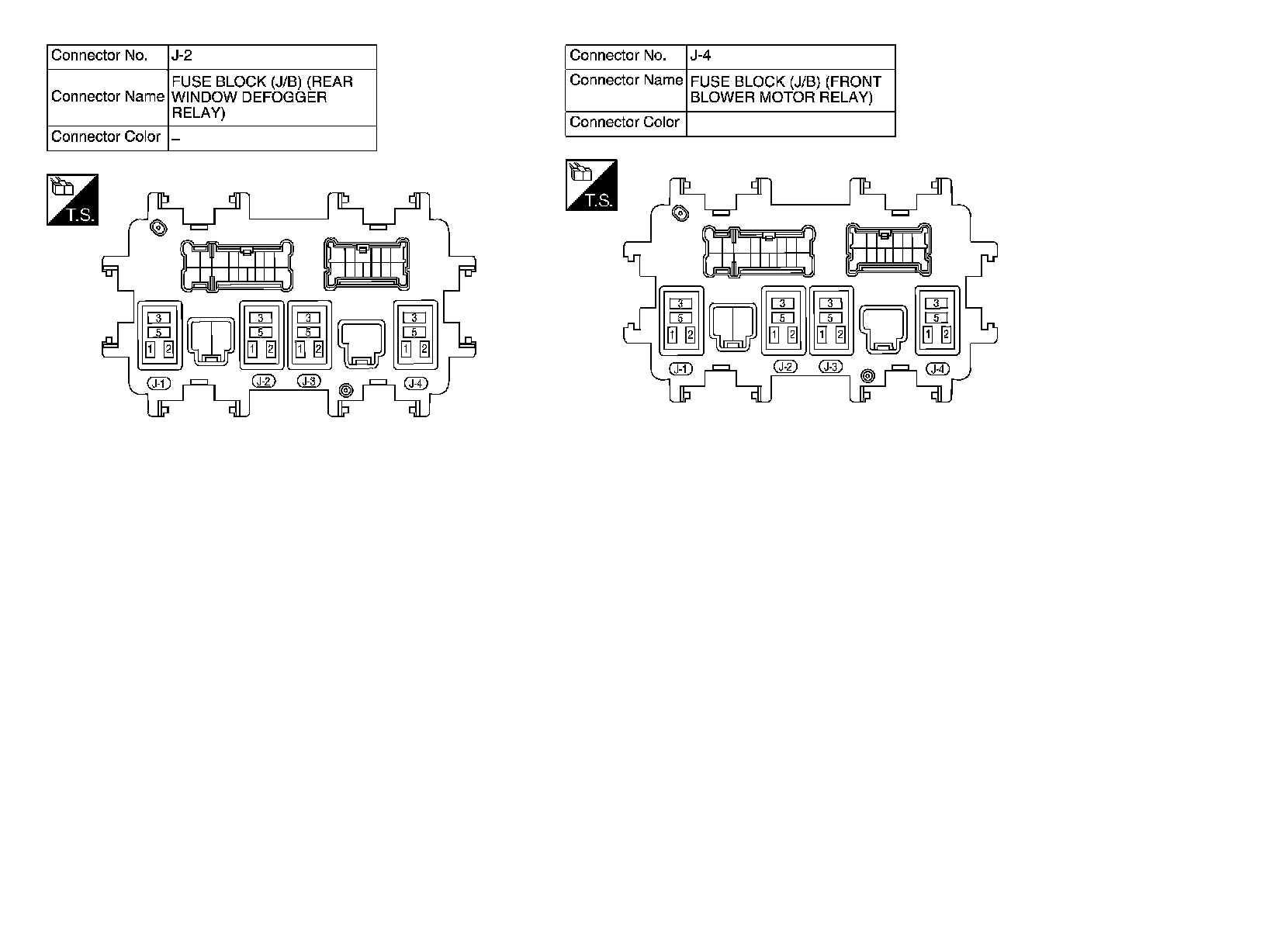

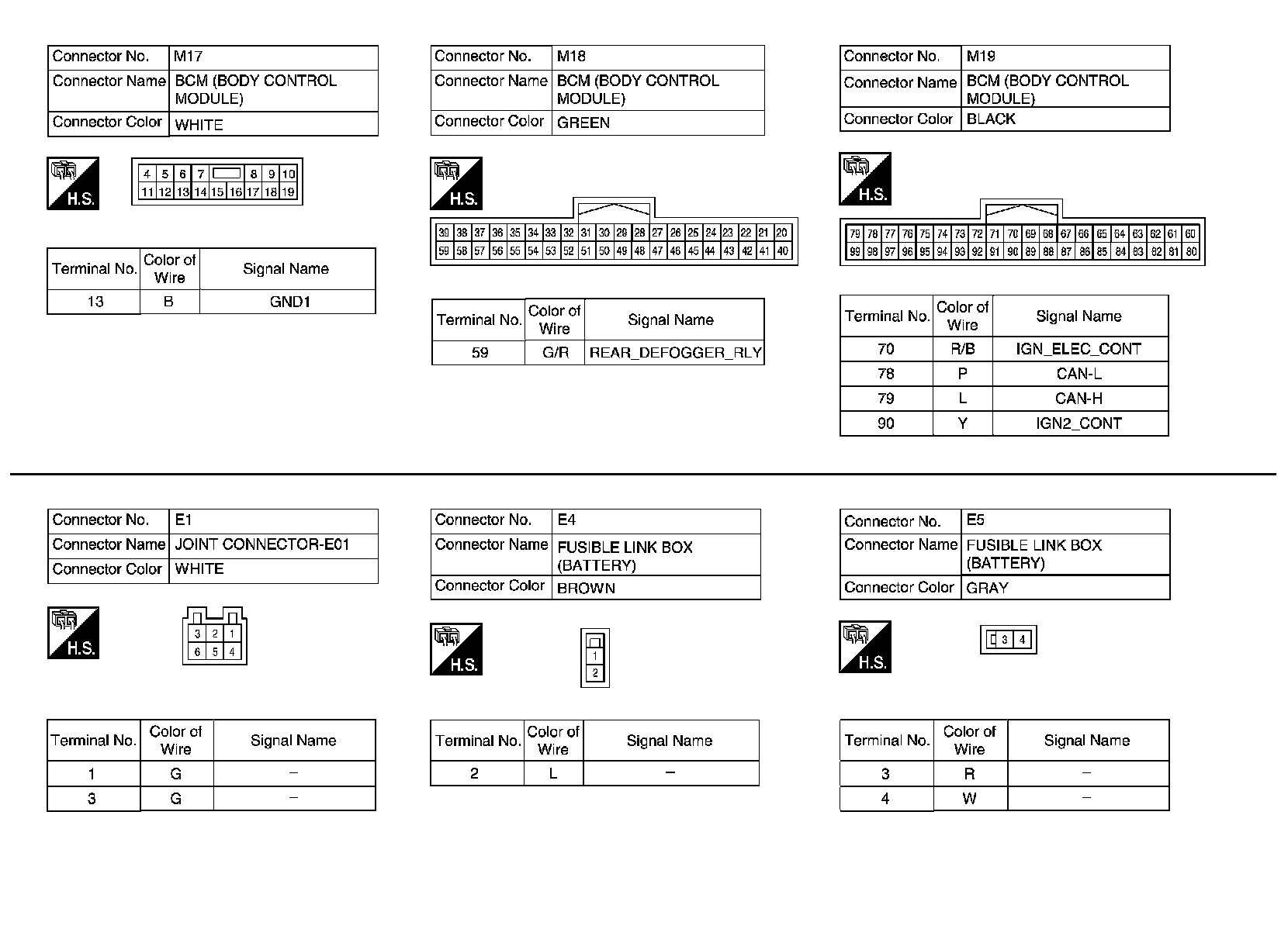

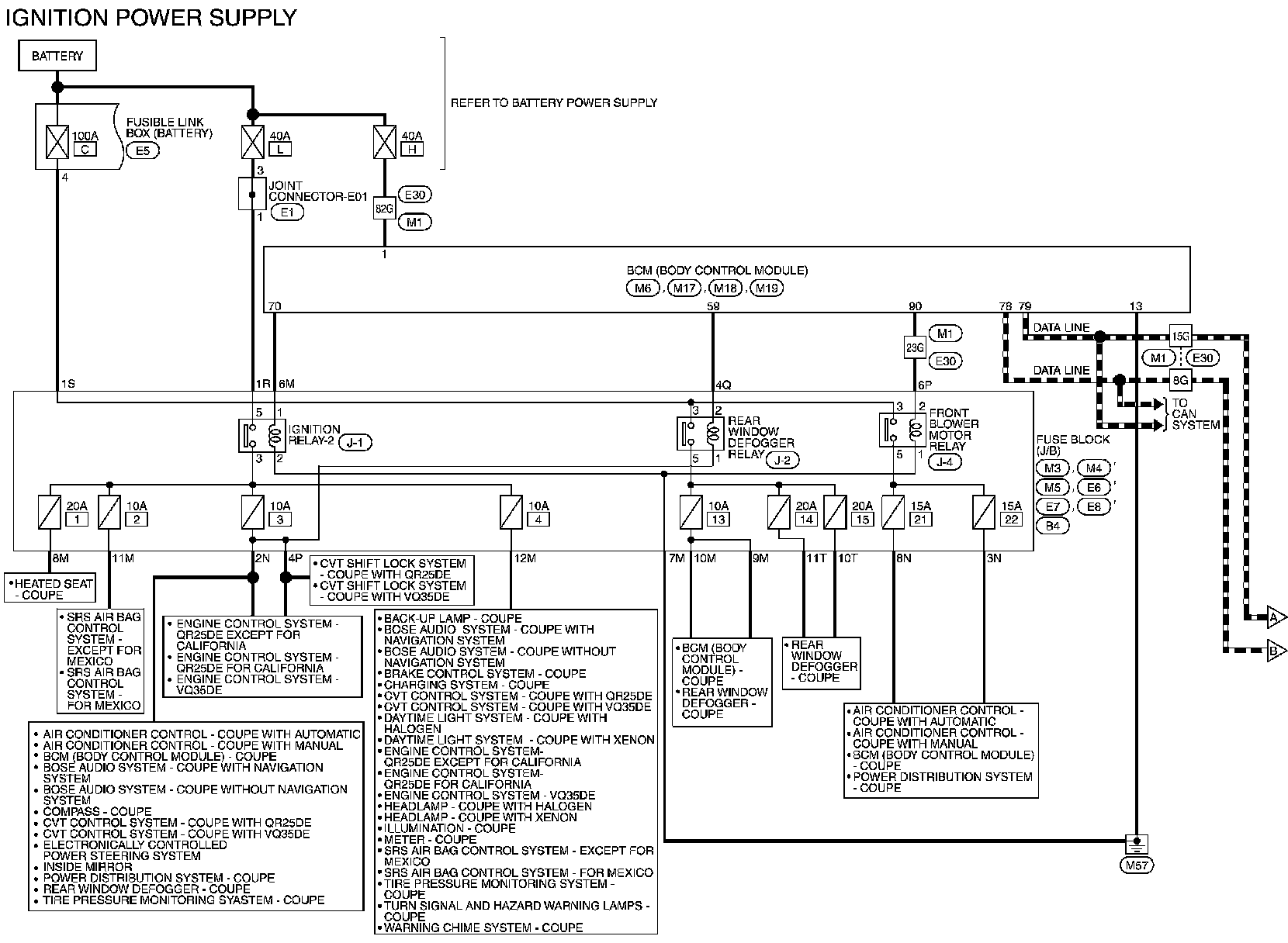

Wiring Diagram --Ignition Power Supply --
