Home >> Nissan-Datsun >> 2011 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ignition Power Supply Sedan

Ignition Power Supply Sedan





POWER SUPPLY ROUTING CIRCUIT

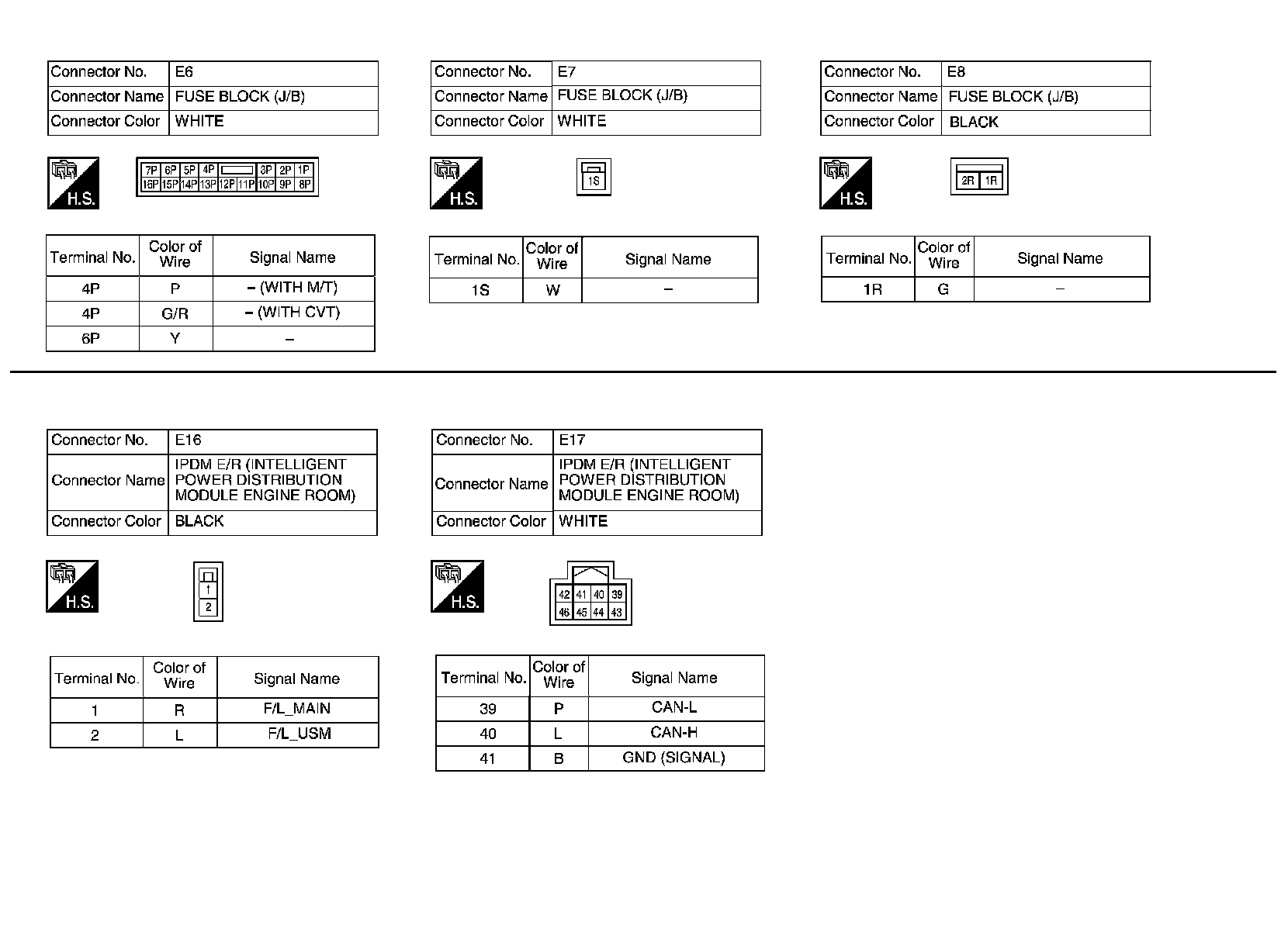

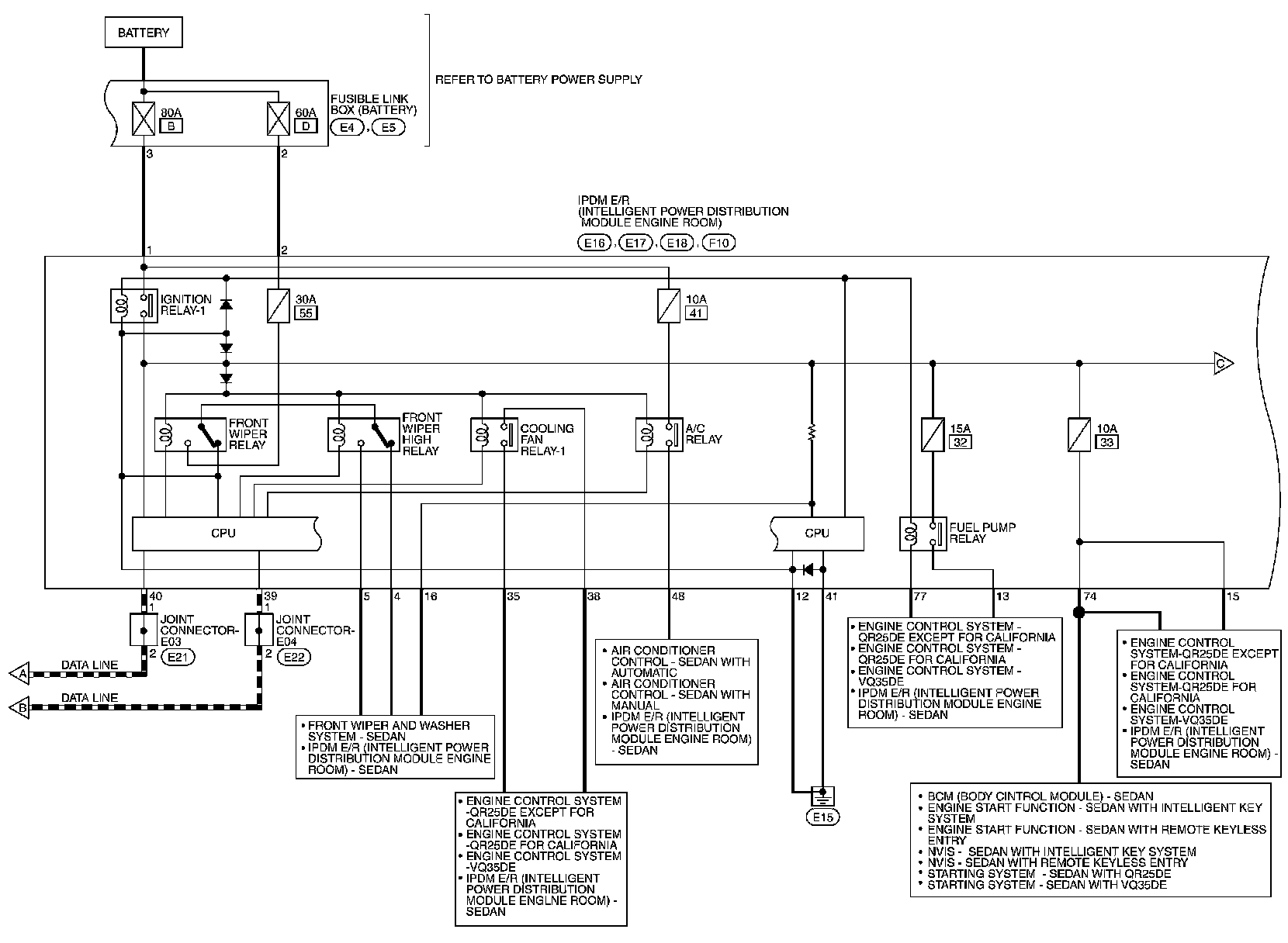

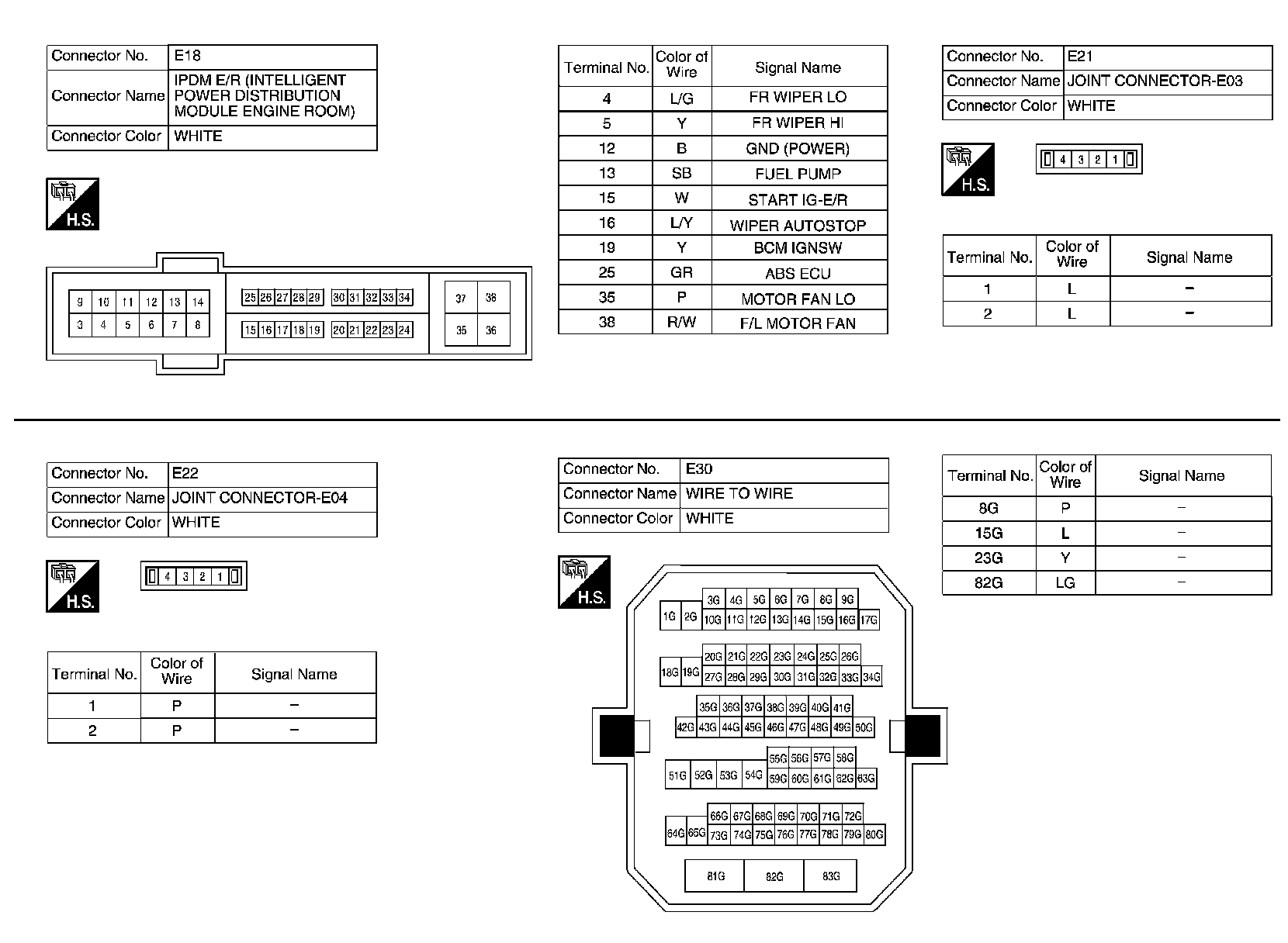

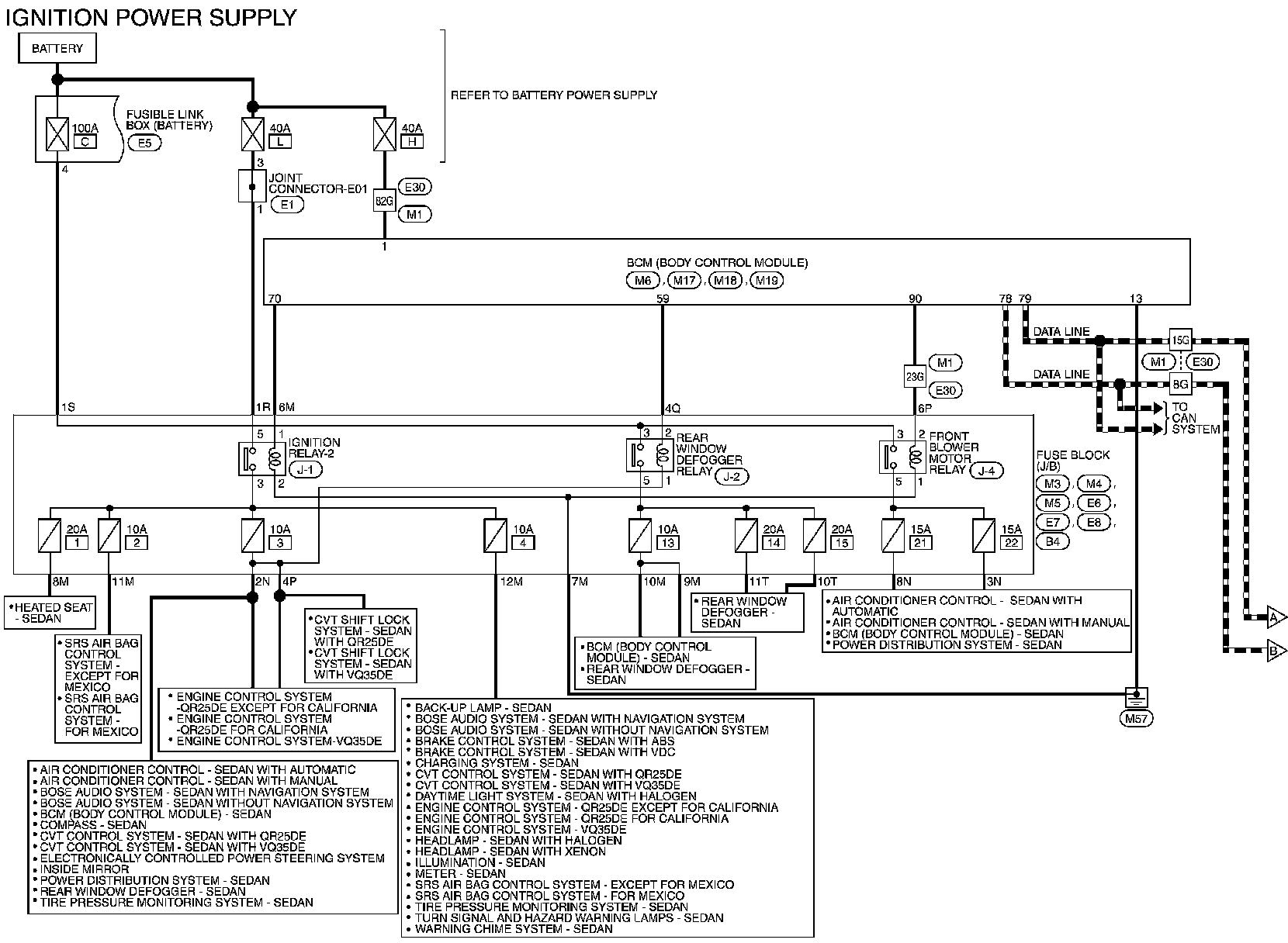

Wiring Diagram --Ignition Power Supply --
