Power Distribution System Sedan
Power Distribution System Sedan
POWER DISTRIBUTION SYSTEM

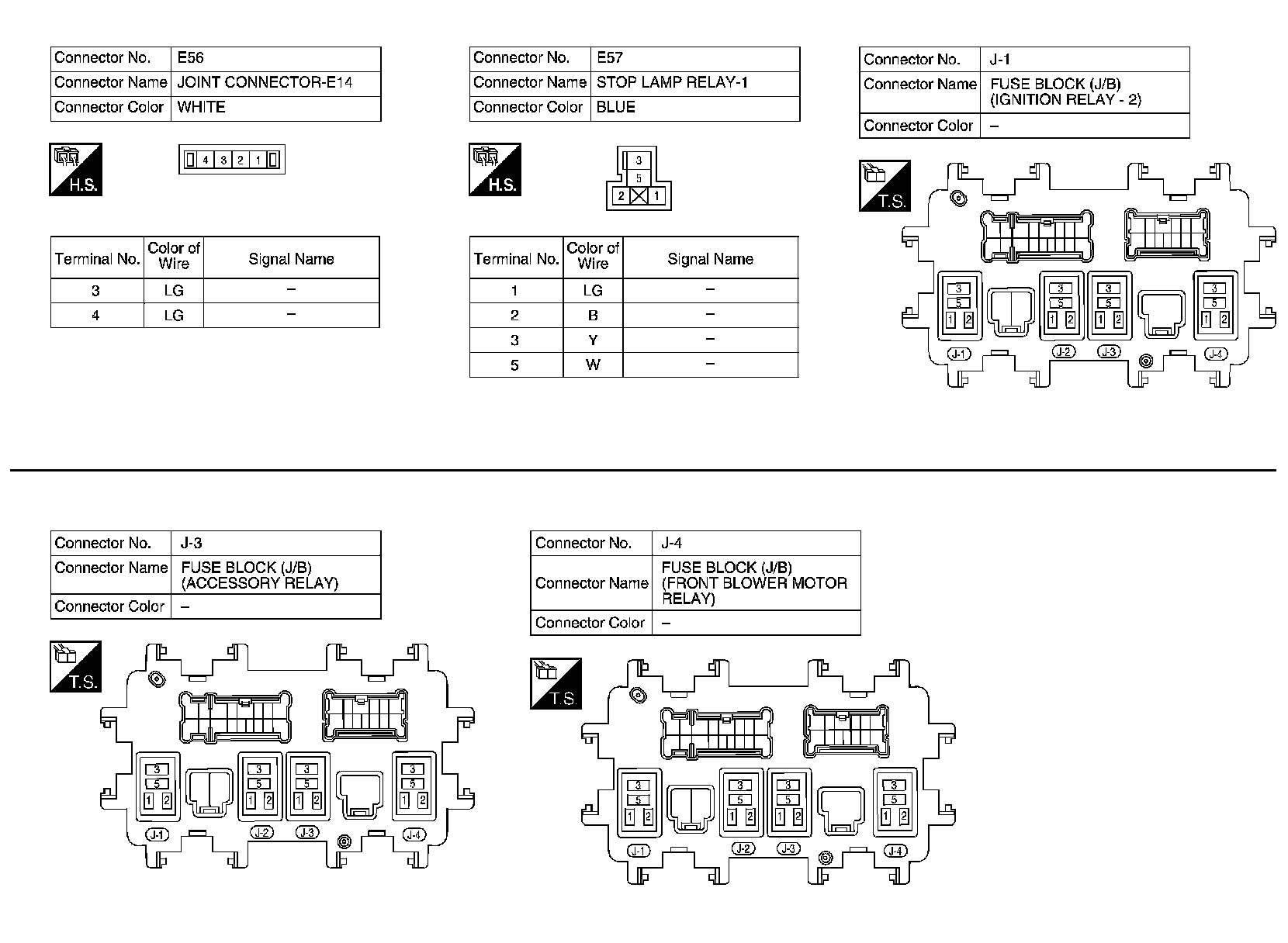

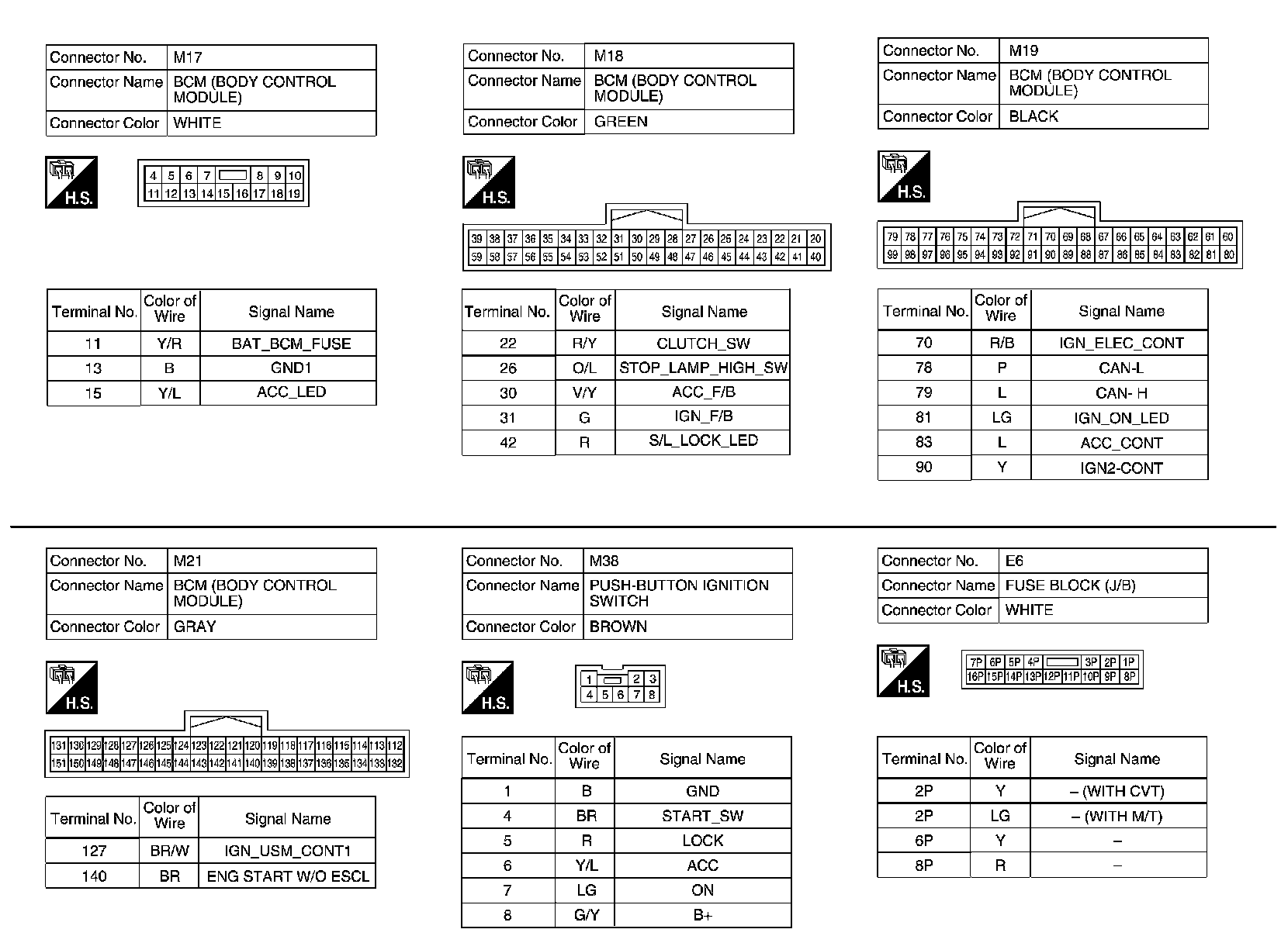

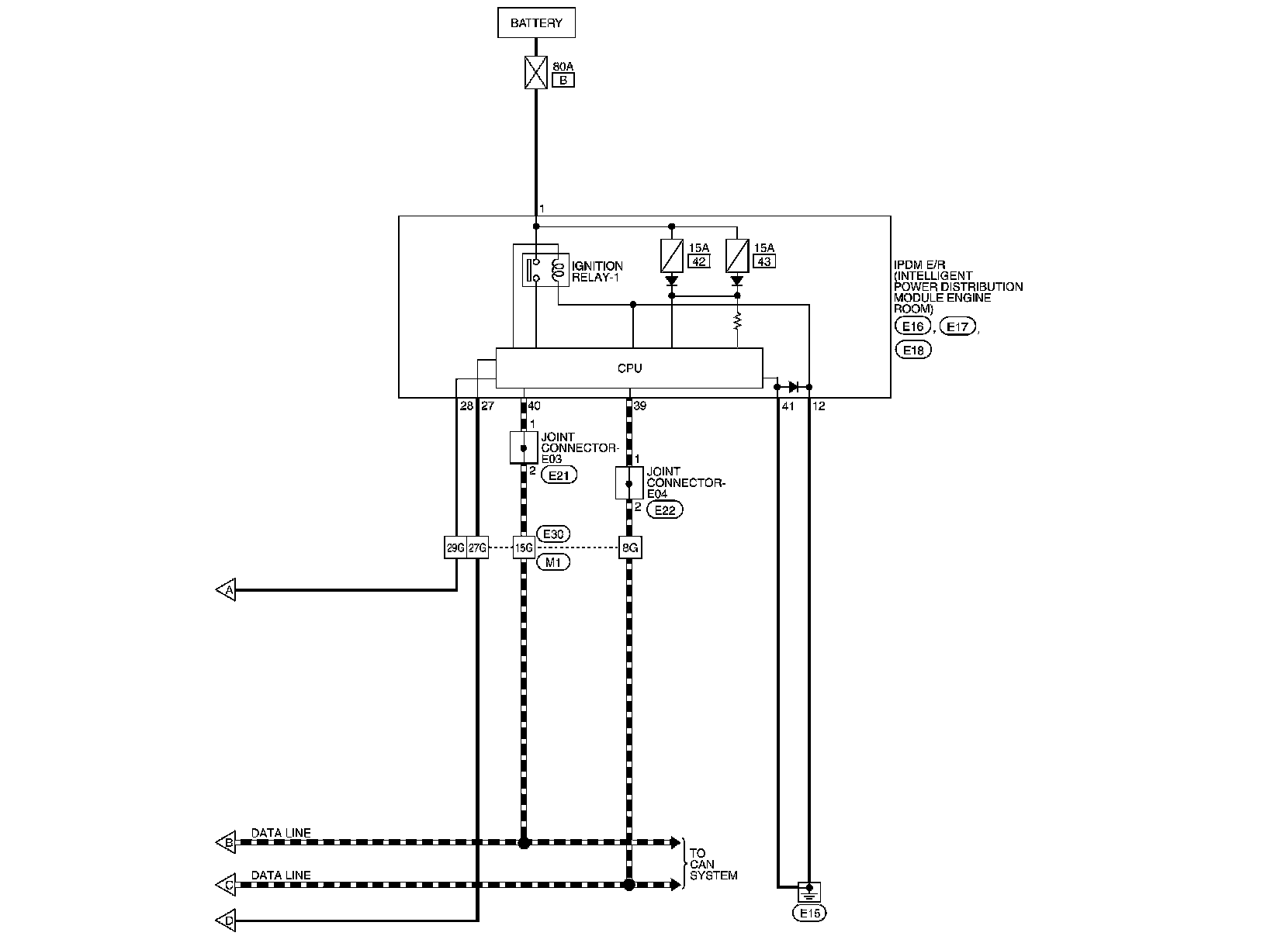

Wiring Diagram - Sedan
