Fluid Pan, CVT

Oil Pan Bolt

Oil pan bolt 7.9 N.m (0.81 kg-m, 70 in-lb)

Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.

CAUTION: Never reuse oil pan bolts.

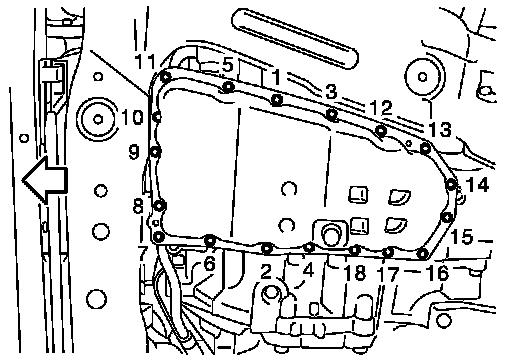

Tighten the oil pan bolts in the order shown to the specified torque.

Tighten the oil pan bolts again clockwise from (1) shown to the specified torque.
