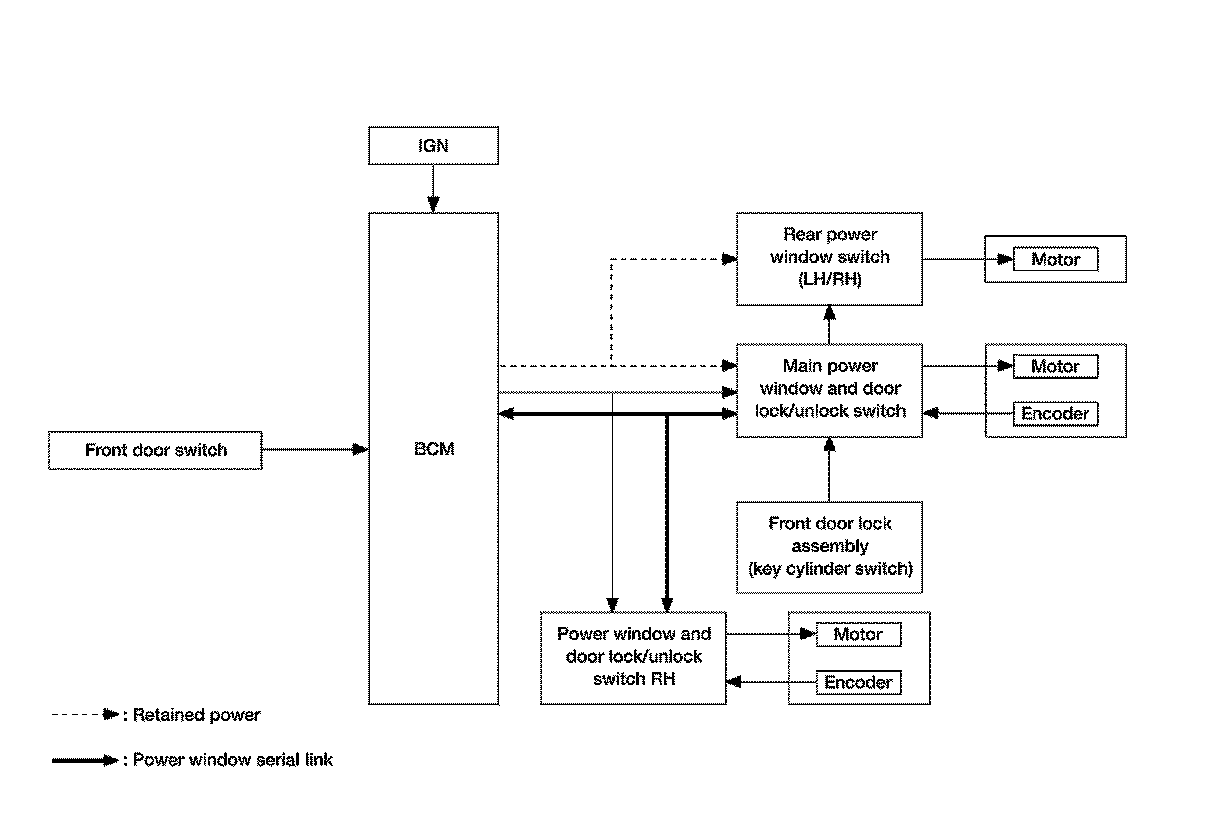

System Diagram LH&RH Front Anti-Pinch Sedan
System Diagram LH&RH Front Anti-Pinch Sedan
POWER WINDOW SYSTEM
System Diagram
FRONT WINDOW ANTI-PINCH SYSTEM
