Windshield Washer Spray Nozzle: Service and Repair

FRONT WASHER


FRONT WASHER NOZZLE : Removal and Installation


REMOVAL
1. Remove the cowl top cover For Sedan Removal And Installation Sedan. For Coupe Removal And Installation Coupe

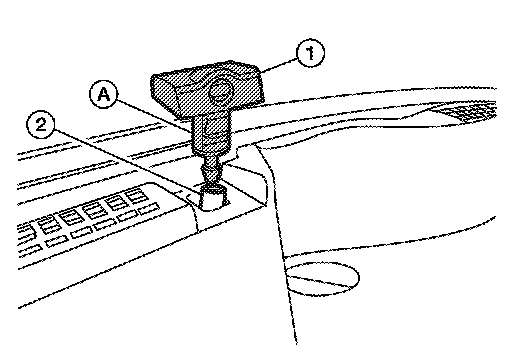

2. Push washer nozzle tab (A), to release the washer nozzle (1) from the cowl top cover, then disconnect the washer nozzle hose (2).

INSTALLATION
1. Installation is in the reverse order of removal.
2. Adjust nozzle spray location. Adjustments.
