ASCD Indicator

ASCD INDICATOR





Description
The ASCD operation status is indicated by two indicators, (CRUISE and SET on the information display) on the combination meter.
CRUISE indicator is displayed to indicate that ASCD system is ready for operation when MAIN switch on
ASCD steering switch is turned ON.
SET indicator is displayed when the following conditions are met.
- CRUISE indicator is displayed.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD setting.
SET indicator is displayed during ASCD control. System Description for the ASCD function.




Component Function Check
1.ASCD INDICATOR FUNCTION

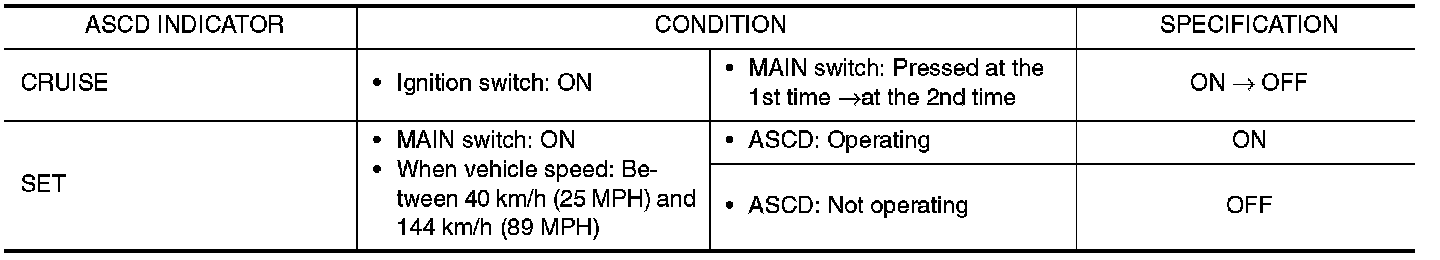

Check ASCD indicator under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Go to ASCD Indicator.




Diagnosis Procedure
1.CHECK DTC
Check that DTC UXXXX is not displayed.
Is the inspection result normal?
YES - GO TO 2.
NO - Perform trouble diagnosis for DTC UXXXX.
2.CHECK COMBINATION METER OPERATION
.
Is the inspection result normal?
YES - GO TO 3.
NO - Check combination meter circuit. U1001.
3.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
