Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER


Removal and Installation


REMOVAL
1. Remove the glove box assembly. Service and Repair.
2. Remove the console side finisher RH. Exploded View.

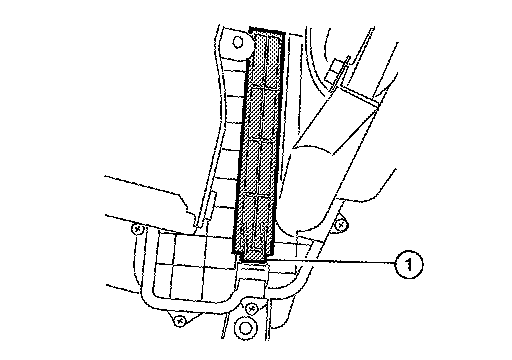

3. Disengage the filter cover tab (1) to remove the filter cover.
4. Remove the in-cabin microfilter from the blower unit.

INSTALLATION
Installation is in the reverse order of removal.
