Timing Cover

FRONT TIMING CHAIN CASE





Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.






Install intake valve timing control covers as follows:

Tighten bolts in numerical order as shown.





A: Bank 1
B: Bank 2
C: Dowel pin hole

IVT cover bolts 11.3 N.m (1.2 kg-m, 8 ft-lb)

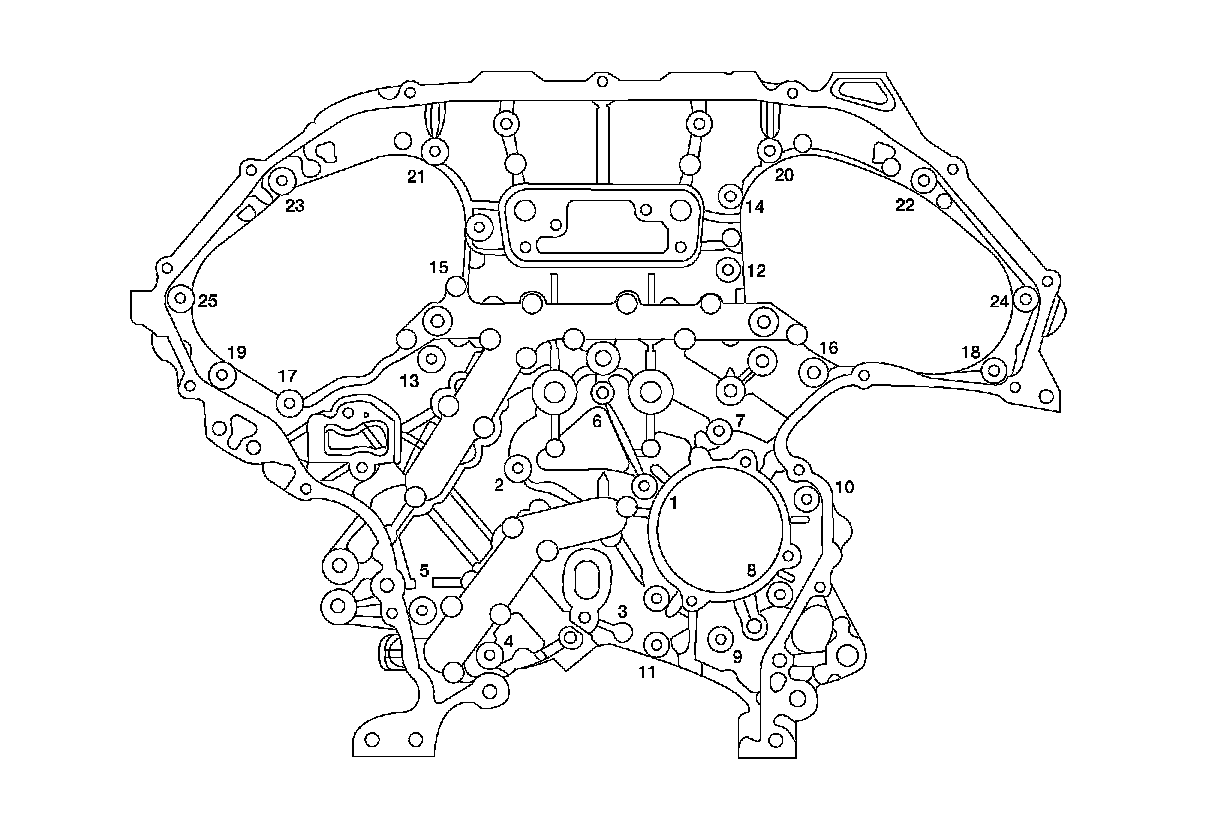

REAR TIMING CHAIN CASE

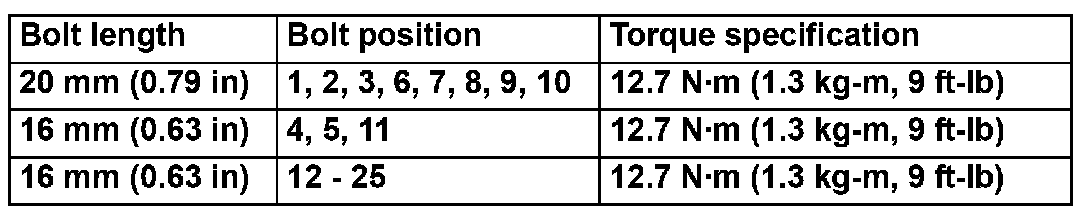

Tighten the bolts in the numerical order as shown. There are two bolt lengths used. Follow the chart below for proper bolt length specifications.











After all bolts are initially tightened, retighten them to the specification in the numerical order as shown.
