P0725

P0725 ENGINE SPEED





Description
TCM receives engine speed signal from ECM via CAN communication.




DTC Logic

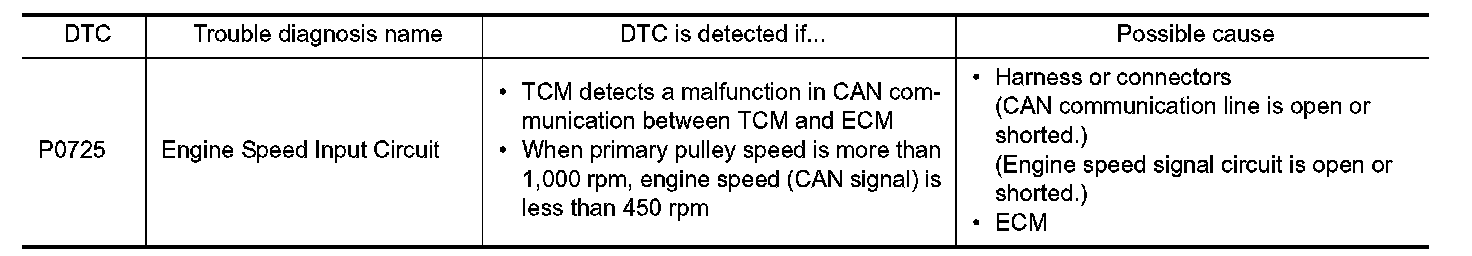

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

CAUTION:
Always drive vehicle at a safe speed.
1.PRECONDITIONING
Immediately after performing any "DTC CONFIRMATION PROCEDURE", always turn ignition switch OFF.
Then wait at least 10 seconds before performing the next test.
- GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Start the engine.
2. Select "Data Monitor" in "TRANSMISSION".
3. Select "PRI SPEED SEN".
4. Drive the vehicle.
5. Maintain the following conditions for 10 seconds or more.






6. Stop the vehicle.
7. Select "Self Diagnostic Results" in "TRANSMISSION".
Is "P0725" detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC WITH ECM
With CONSULT-III
1. Turn ignition switch ON.
2. Perform "Self Diagnostic Results" in "ENGINE".
Is the inspection result normal?
YES - Check intermittent incident. Intermittent Incident.
NO - Check DTC detected item. Testing and Inspection.
