System Diagram Audio Without Navigation

HANDS-FREE PHONE SYSTEM

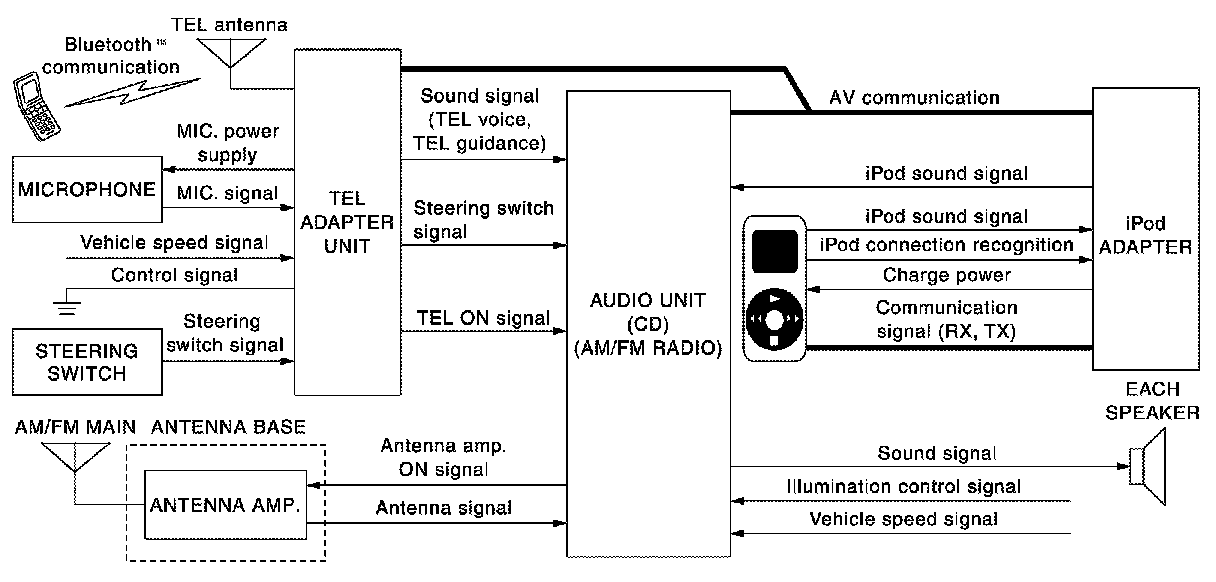

System Diagram


MODELS WITH iPod(R) CONNECTION FUNCTION AND HANDS-FREE PHONE SYSTEM






NOTE:
An antenna base integrated with radio antenna amp. is adopted.

MODELS WITHOUT iPod(R) CONNECTION FUNCTION






NOTE:
An antenna base integrated with radio antenna amp. is adopted.
iPod(R) is a trademark of Apple inc., registered in the U.S. and other countries.
