Symptom Related Diagnostic Procedures

NAVIGATION SYSTEM


Symptom Table

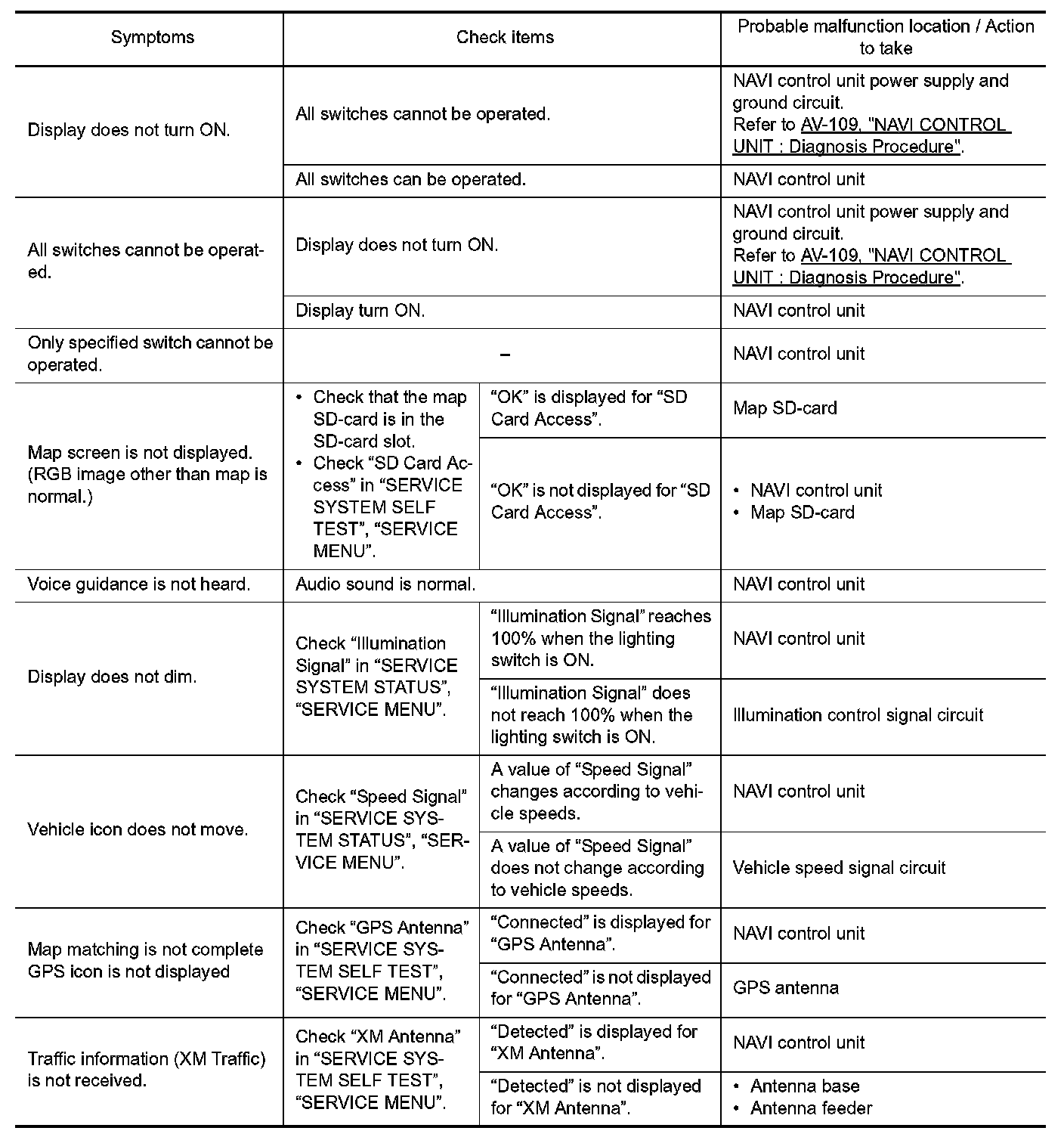

RELATED TO NAVIGATION

NOTE:
Combined part of AV switch and NAVI control unit.

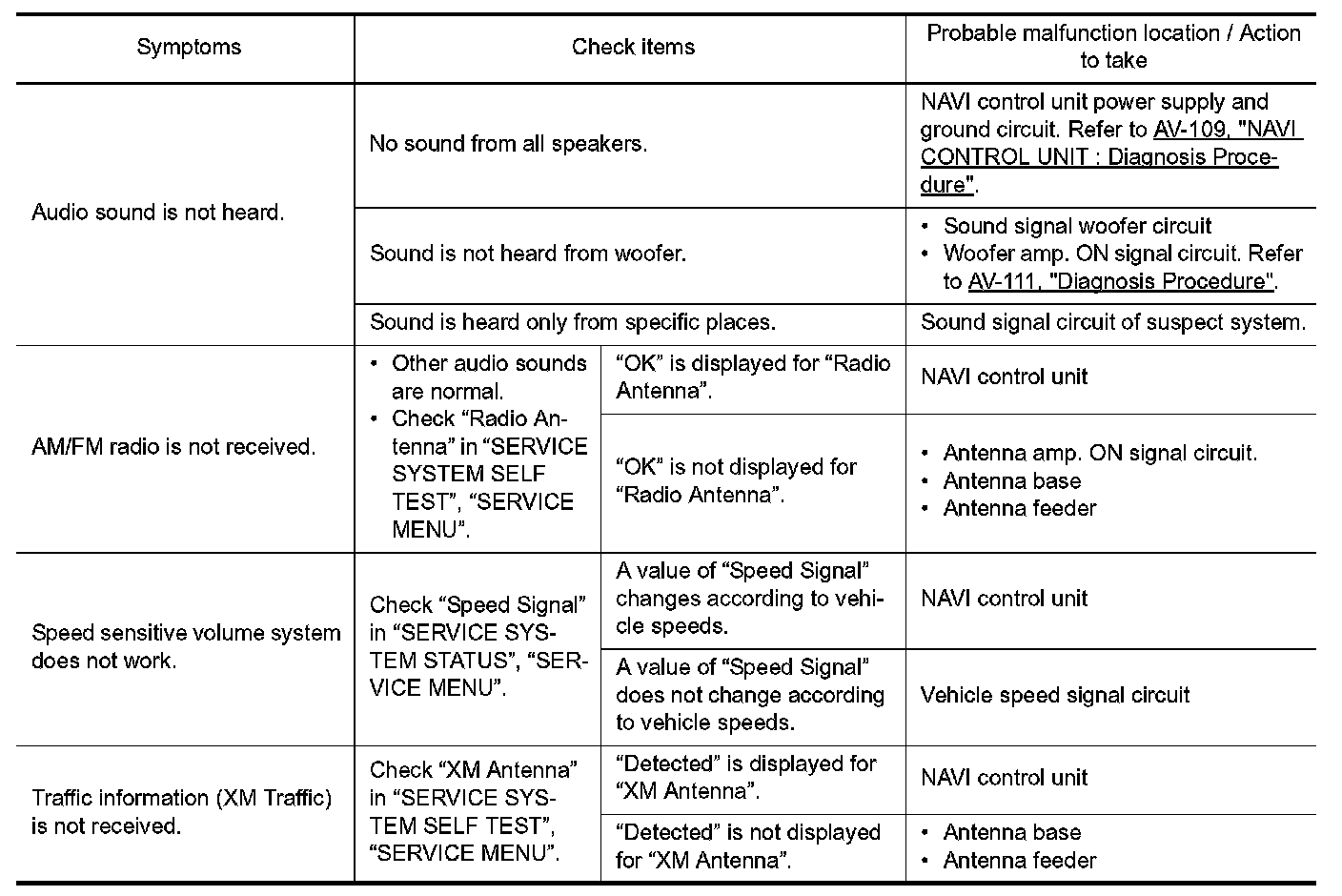

RELATED TO AUDIO






RELATED TO USB

NOTE:
Check that there is no malfunction of USB equipment main body before performing a diagnosis.






iPod� is a trademark of Apple inc., registered in the U.S. and other countries.

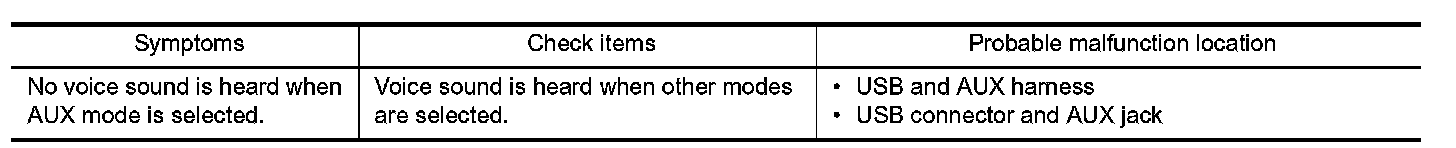

RELATED TO AUXILIARY INPUT

NOTE:
Check that there is no malfunction of AUX equipment main body before performing a diagnosis.

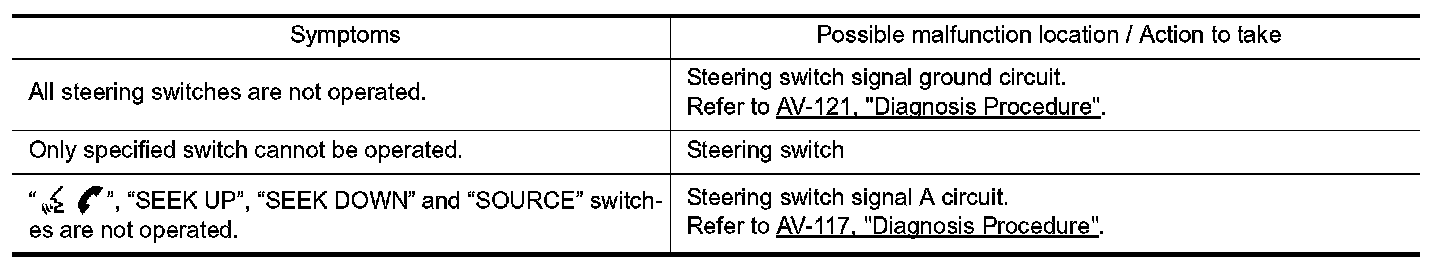

RELATED TO STEERING SWITCH

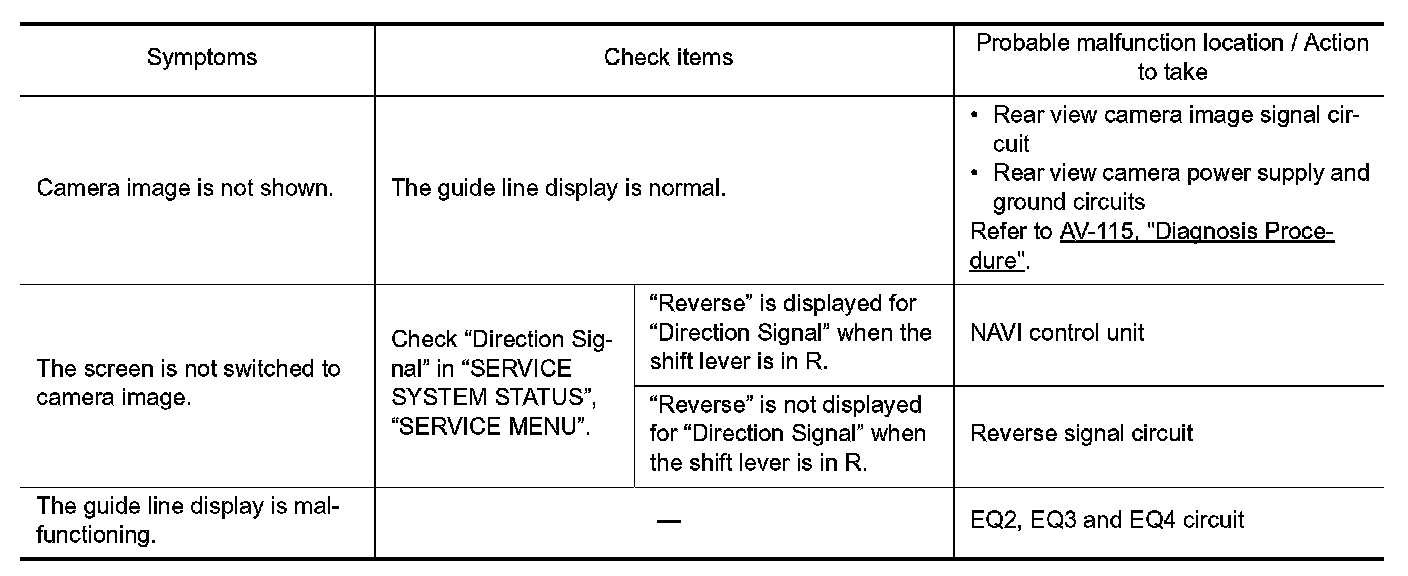

RELATED TO CAMERA
