Symptom Related Diagnostic Procedures

AUDIO SYSTEM SYMPTOMS


Symptom Table


AUDIO SYSTEM






RELATED TO iPod�

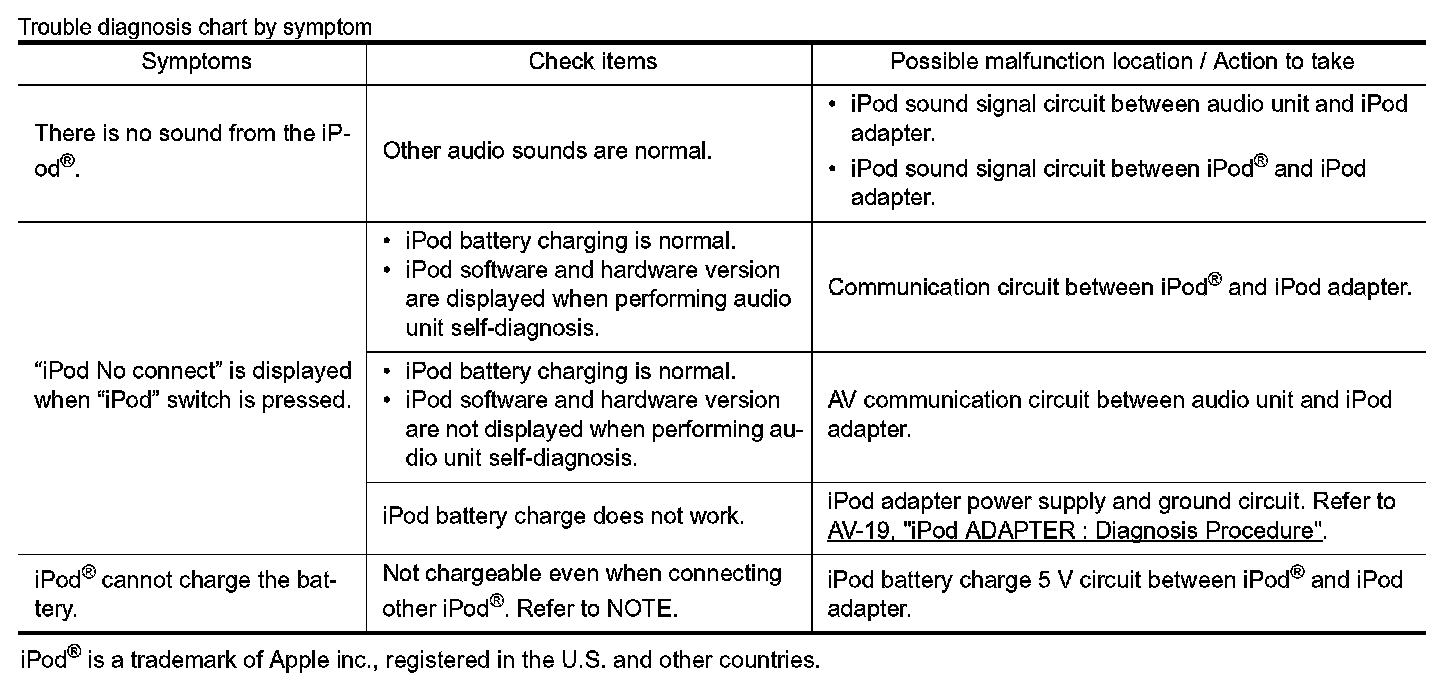

Trouble Diagnosis Chart by Symptom
Connect another iPod� and check if the symptom is reproduced or not. If the symptom is reproduced, diagnose the vehicle. If no malfunction is detected, replace the iPod harness.

NOTE:
- It is unable to read a connection between iPod� and iPod harness.
- Charging of iPod� with no 5 V charging circuit is not supported. (e.g. iPod 1G mechanical scroll wheel, iPod
Classic 2G touch-sensitive wheel, and iPod Classic 3G 4 touch button)






RELATED TO STEERING SWITCH
