Nissan Vehicle Immobilizer System-NATS Without Intelligent Key System





NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

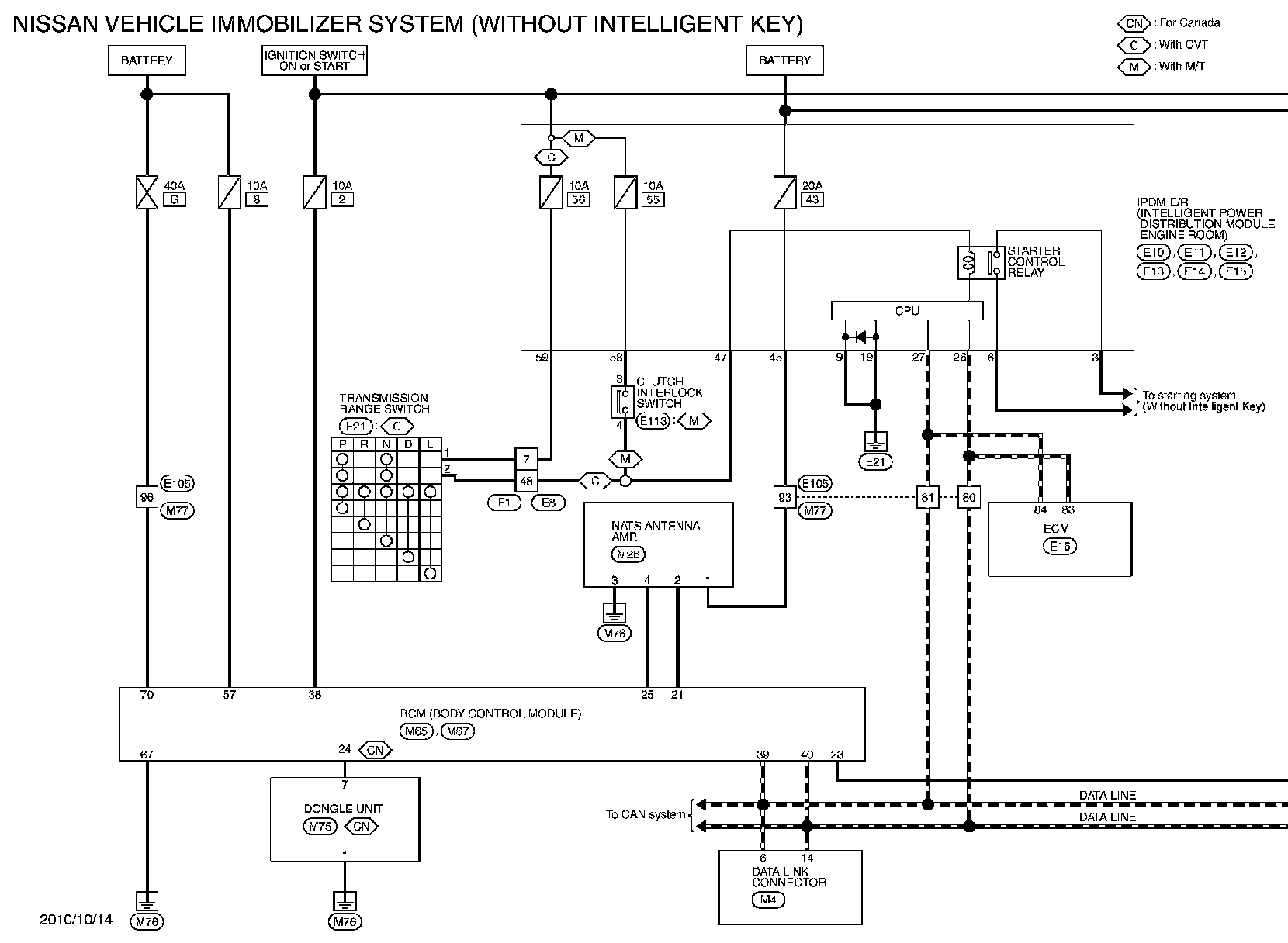

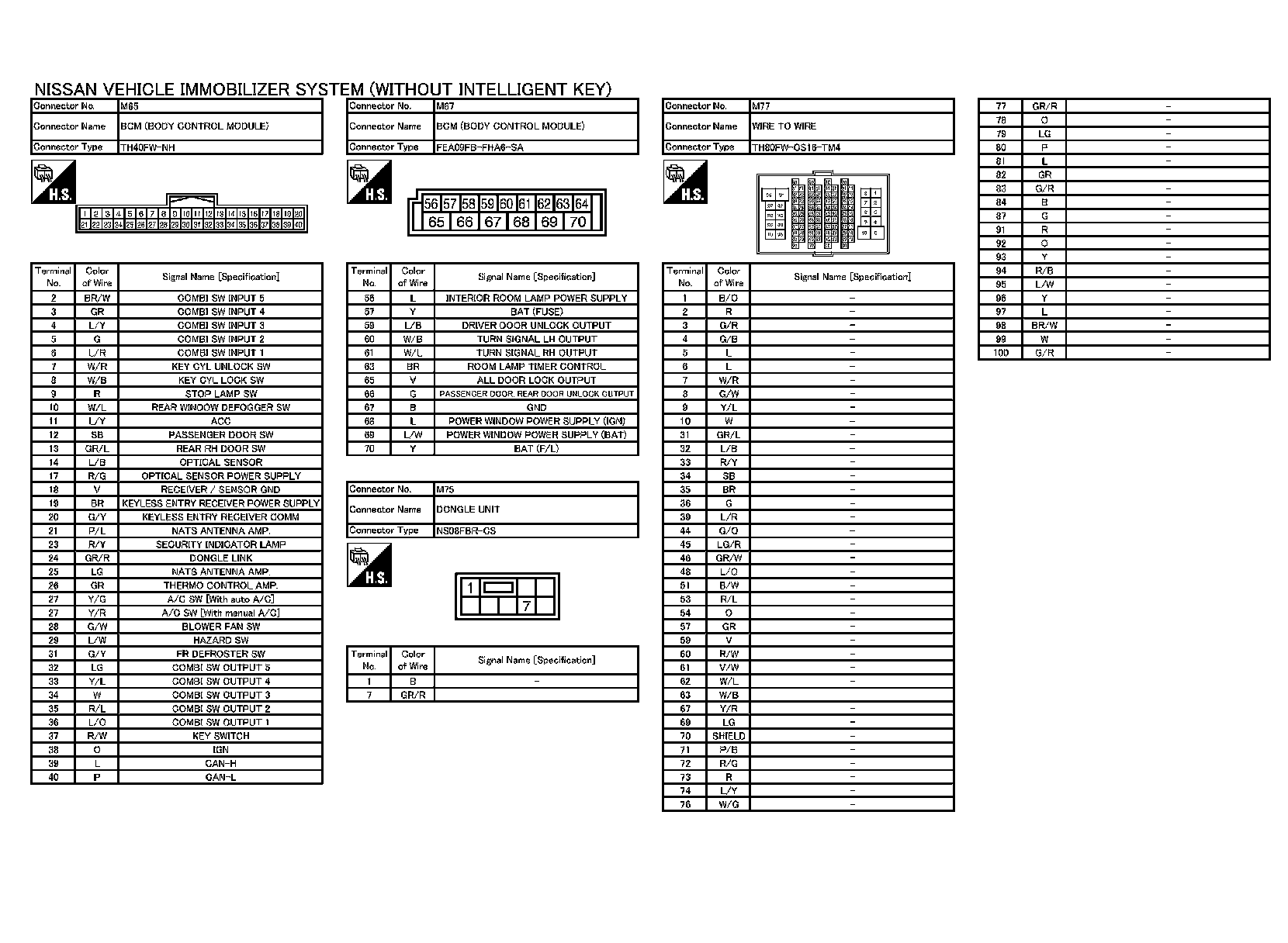

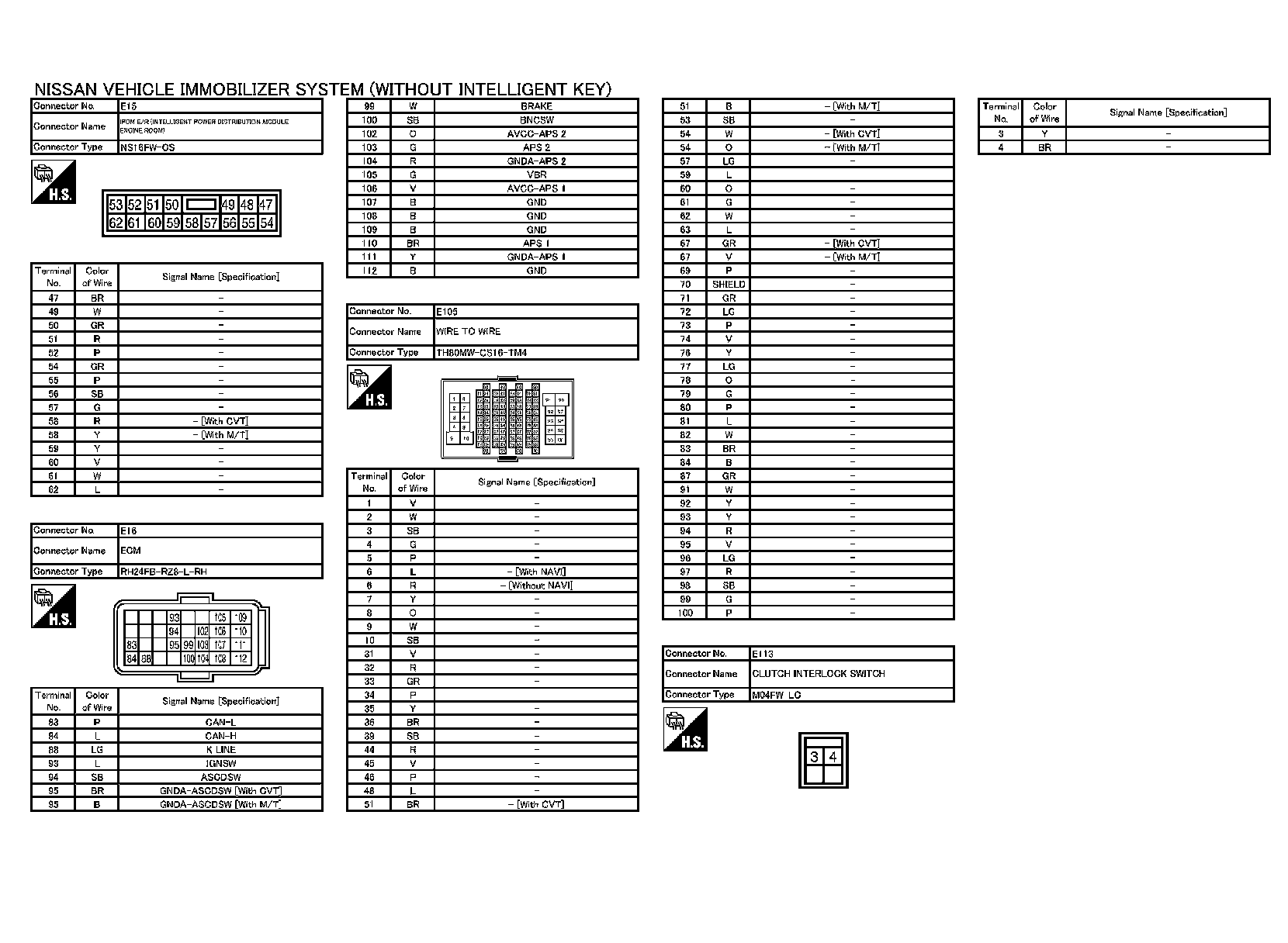

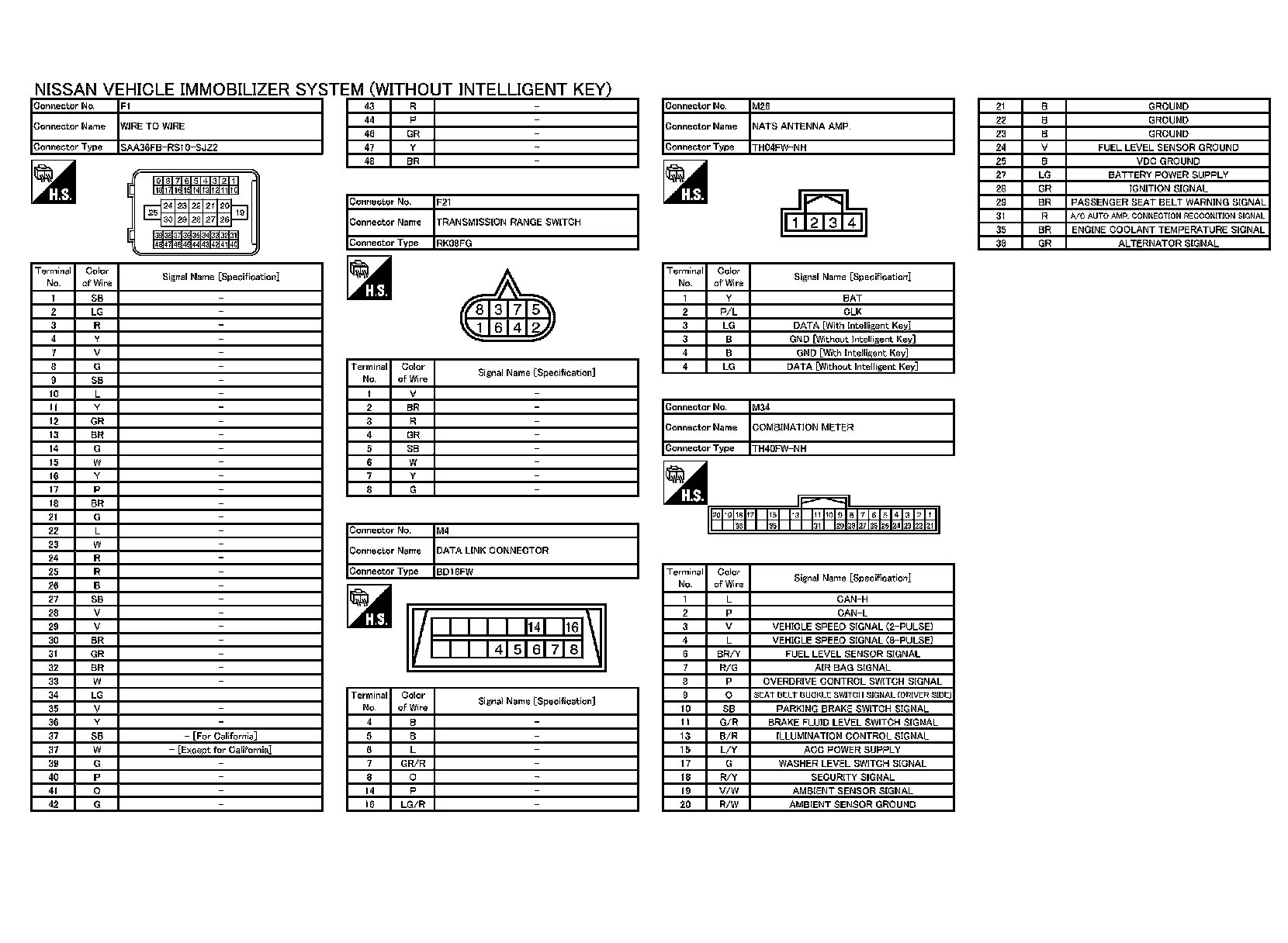

Wiring Diagram - NISSAN VEHICLE IMMOBILIZER SYSTEM -
