BCM (Body Control Module) With Intelligent Key System





BCM (BODY CONTROL MODULE)

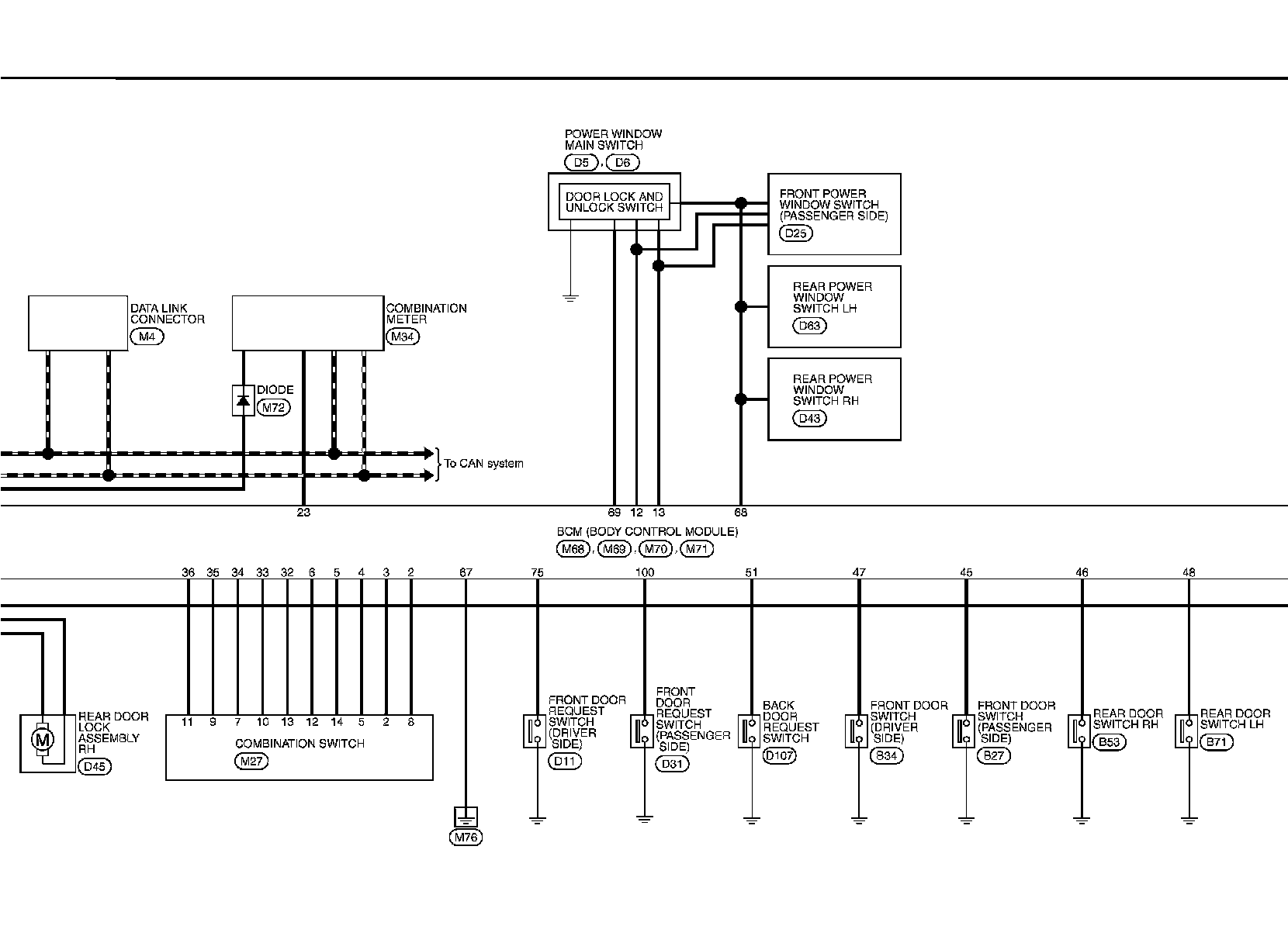

Wiring Diagram - BCM -
