Defogger System Without Intelligent Key

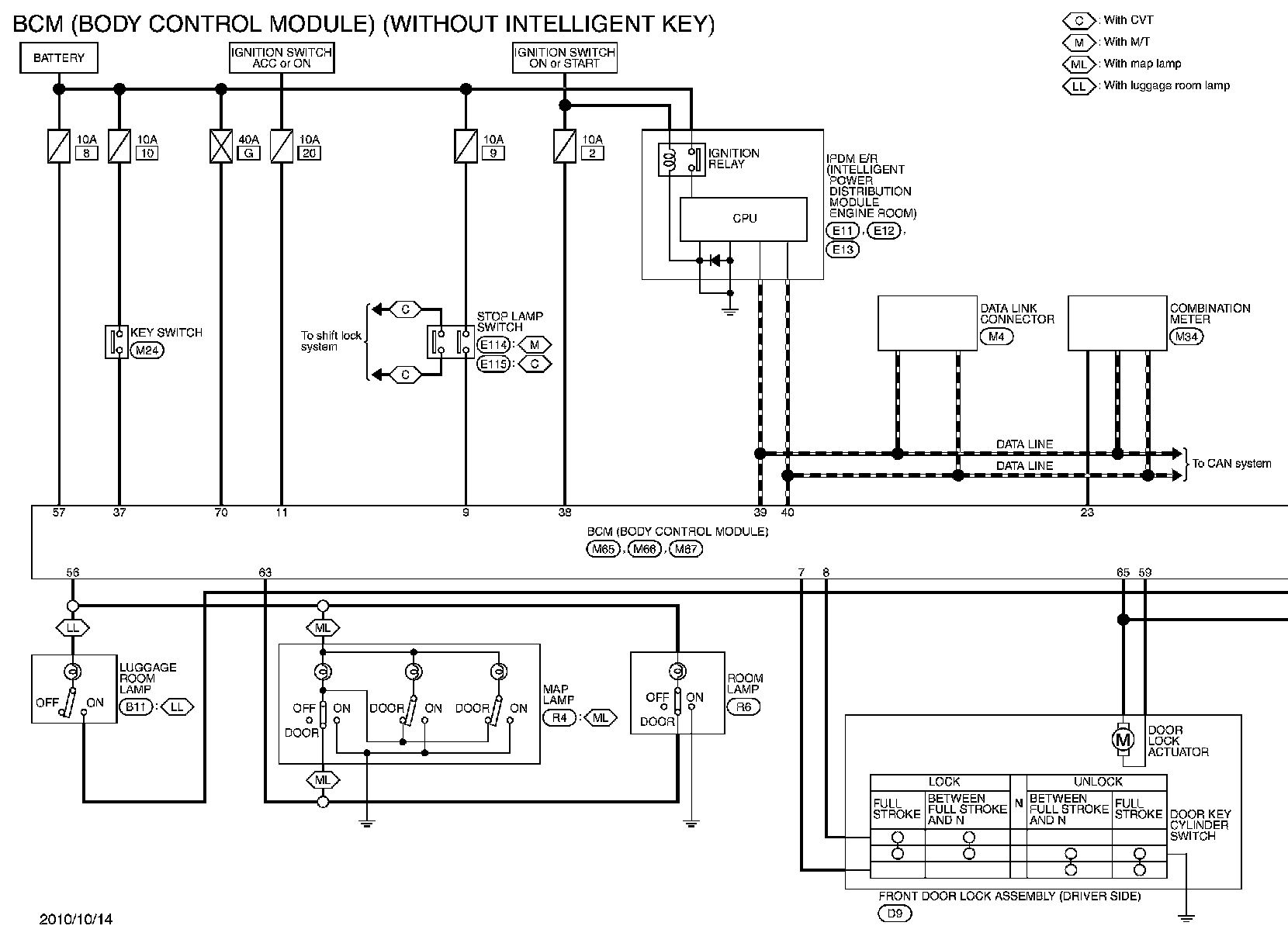

BCM (BODY CONTROL MODULE)

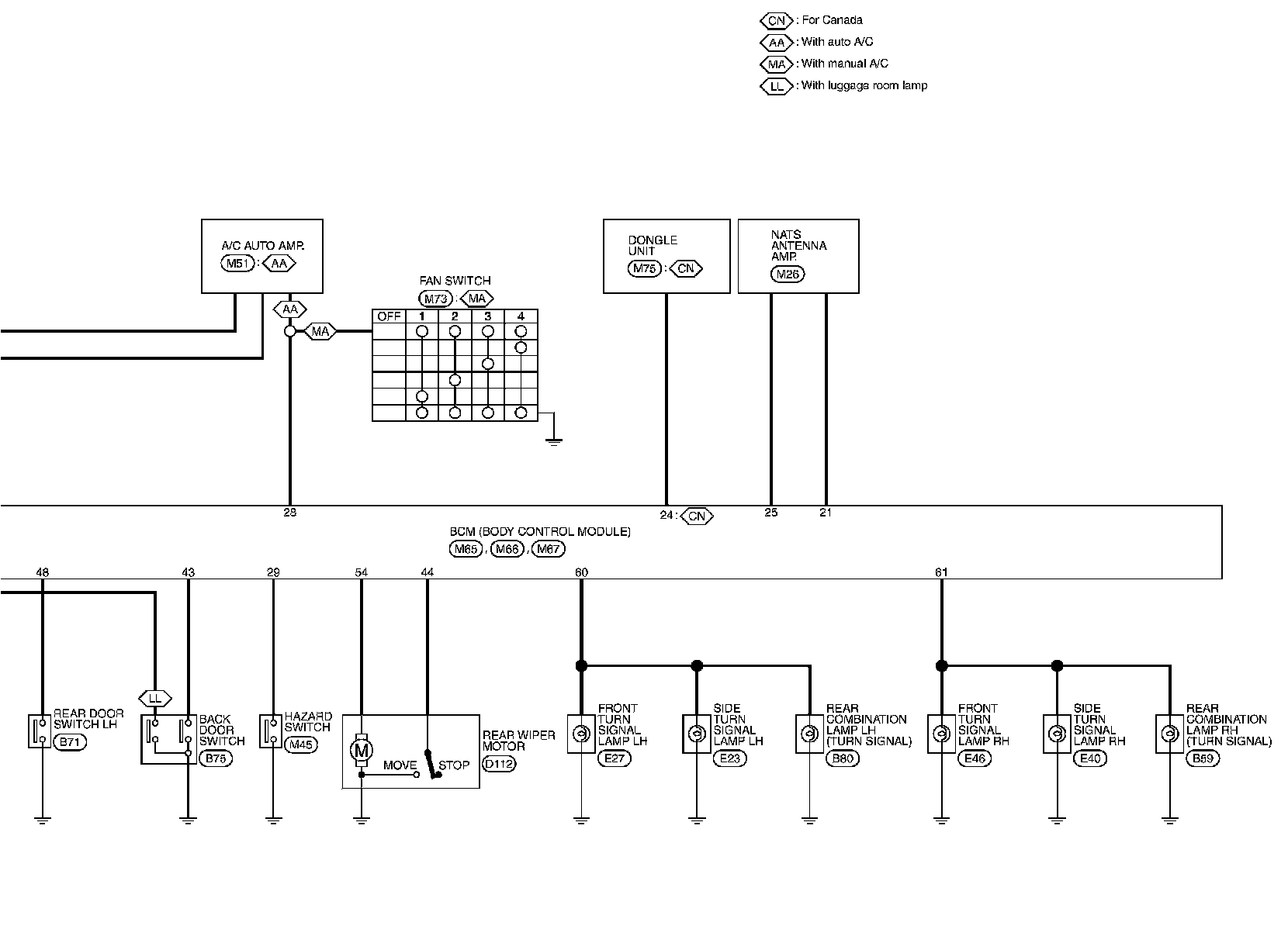

WITHOUT INTELLIGENT KEY : Wiring Diagram - BCM -
