Automatic Air Conditioner BCM (Body Control System) With Intelligent Key System





BCM (BODY CONTROL MODULE)

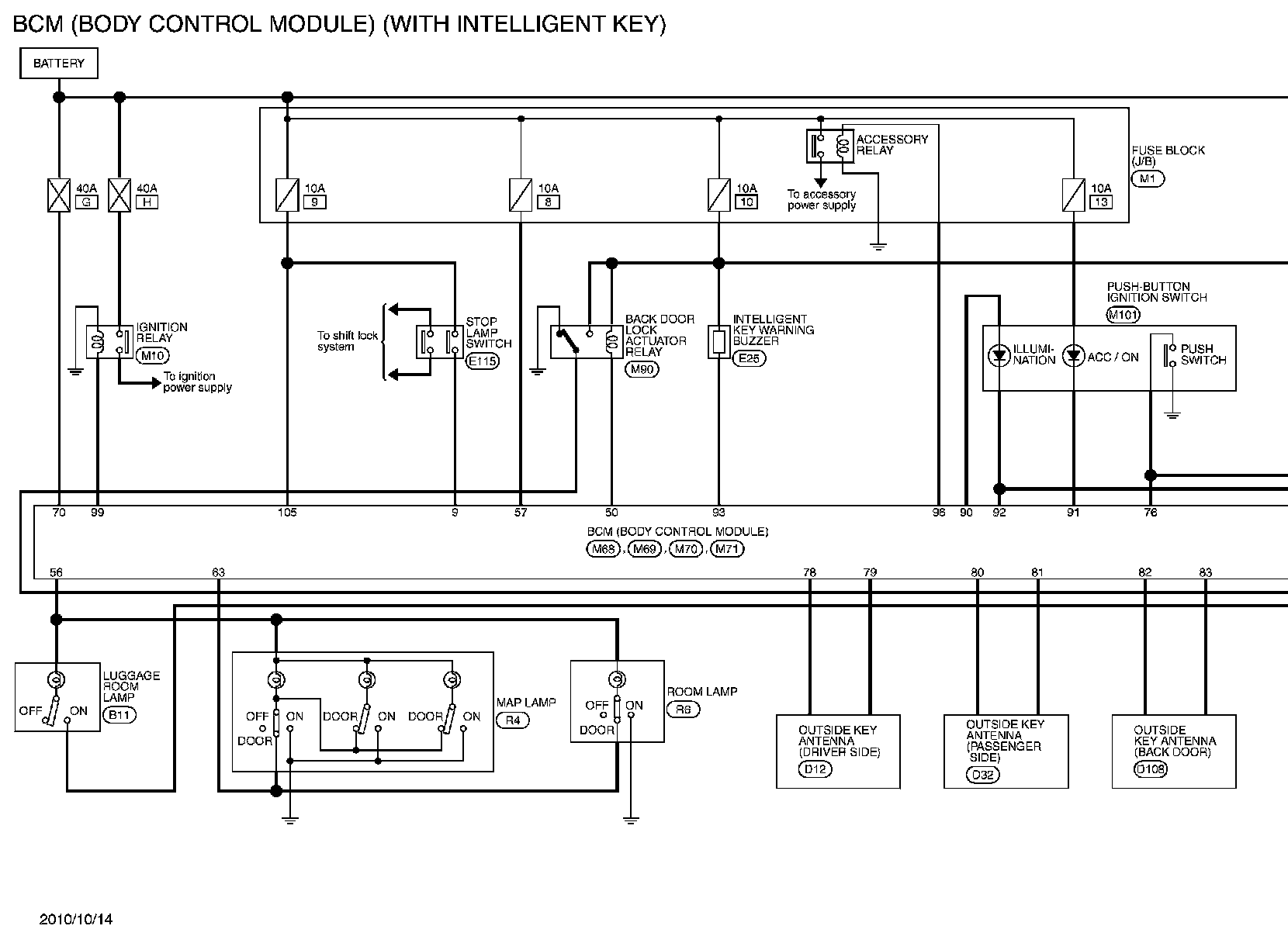

BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM) : Wiring Diagram - BCM -
