Starting System With Intelligent Key





STARTING SYSTEM

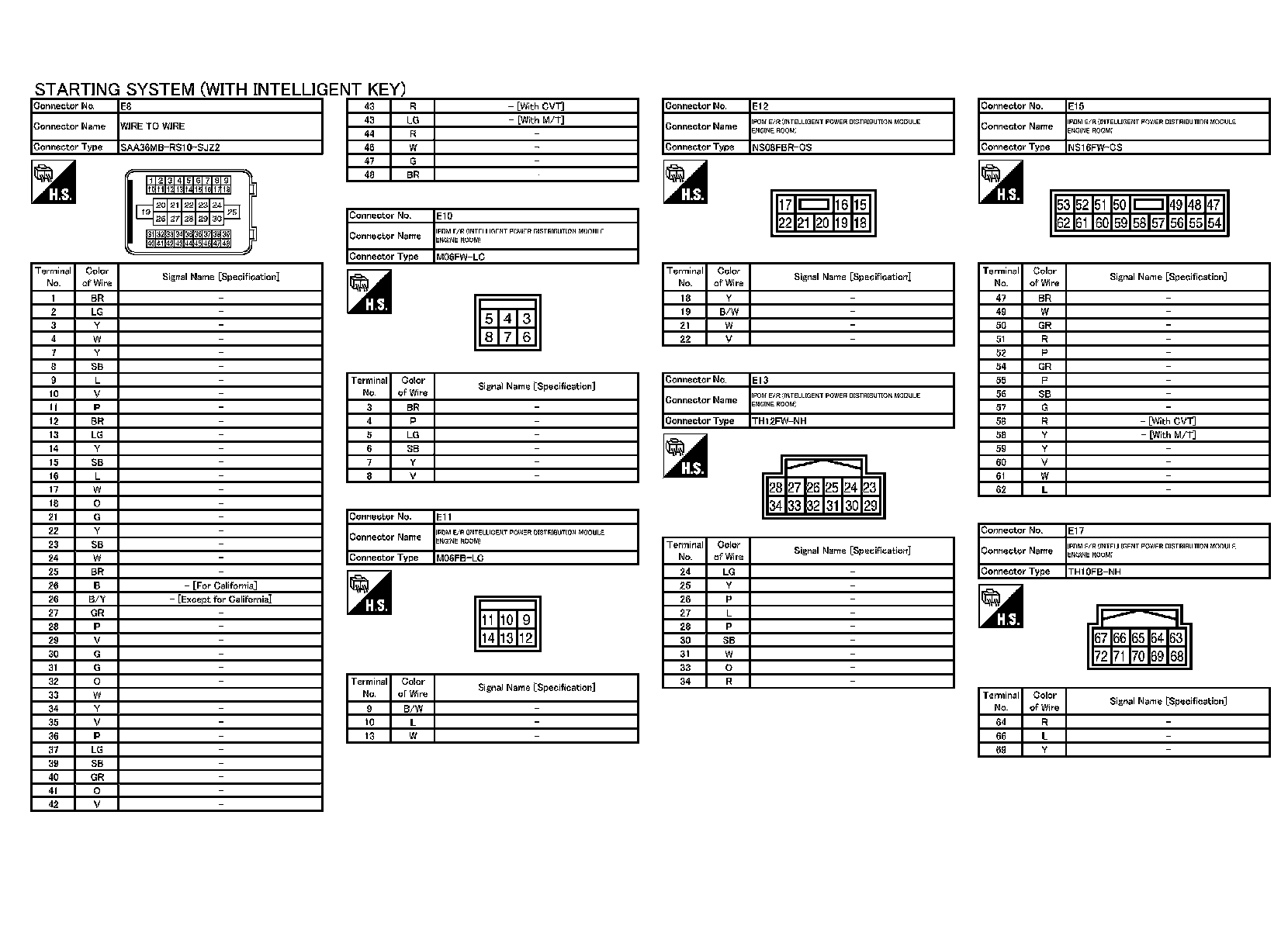

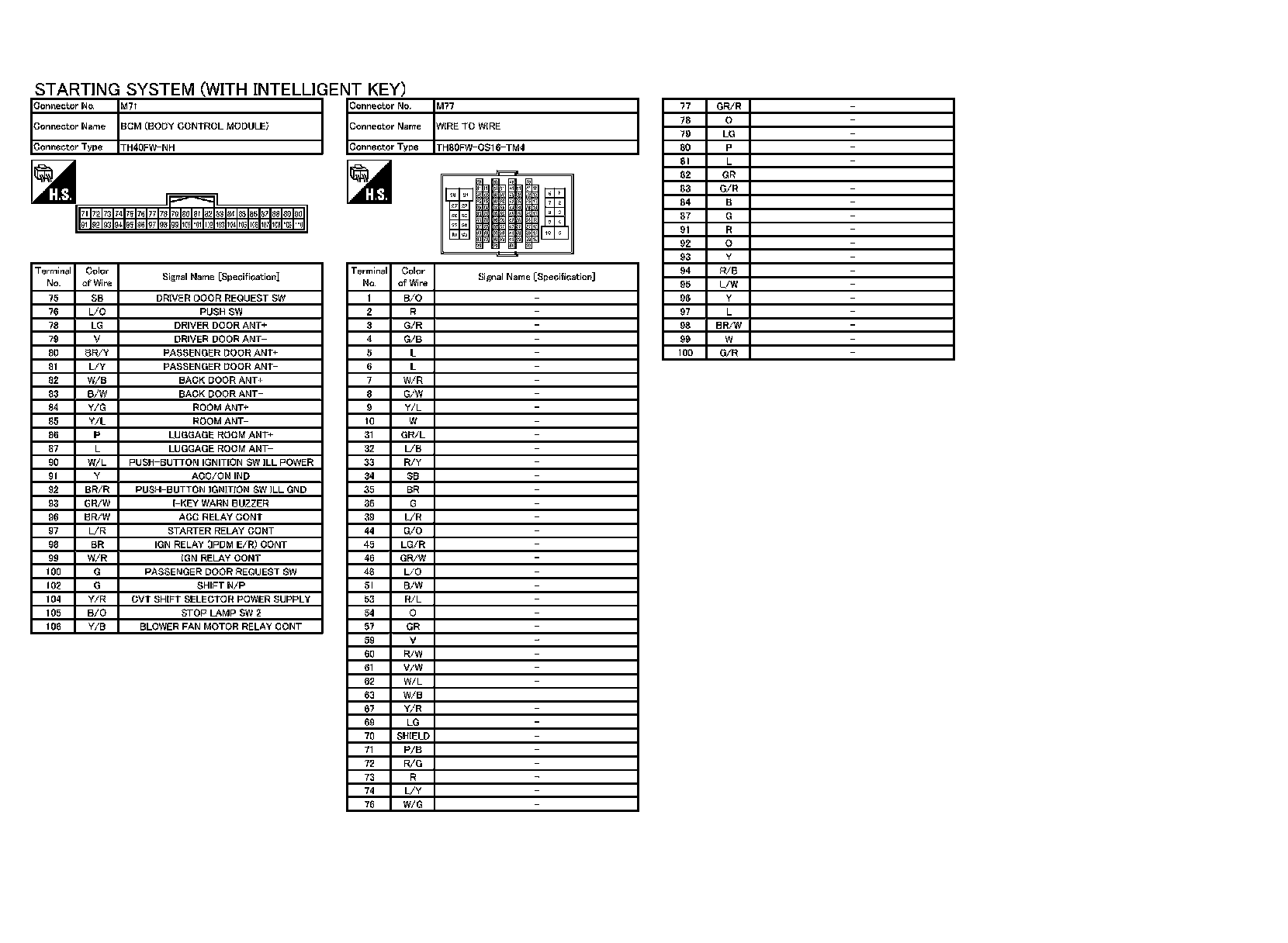

Wiring Diagram - STARTING SYSTEM (WITH INTELLIGENT KEY) -
