Power Window Main Switch
Power Window Main Switch
POWER WINDOW MAIN SWITCH

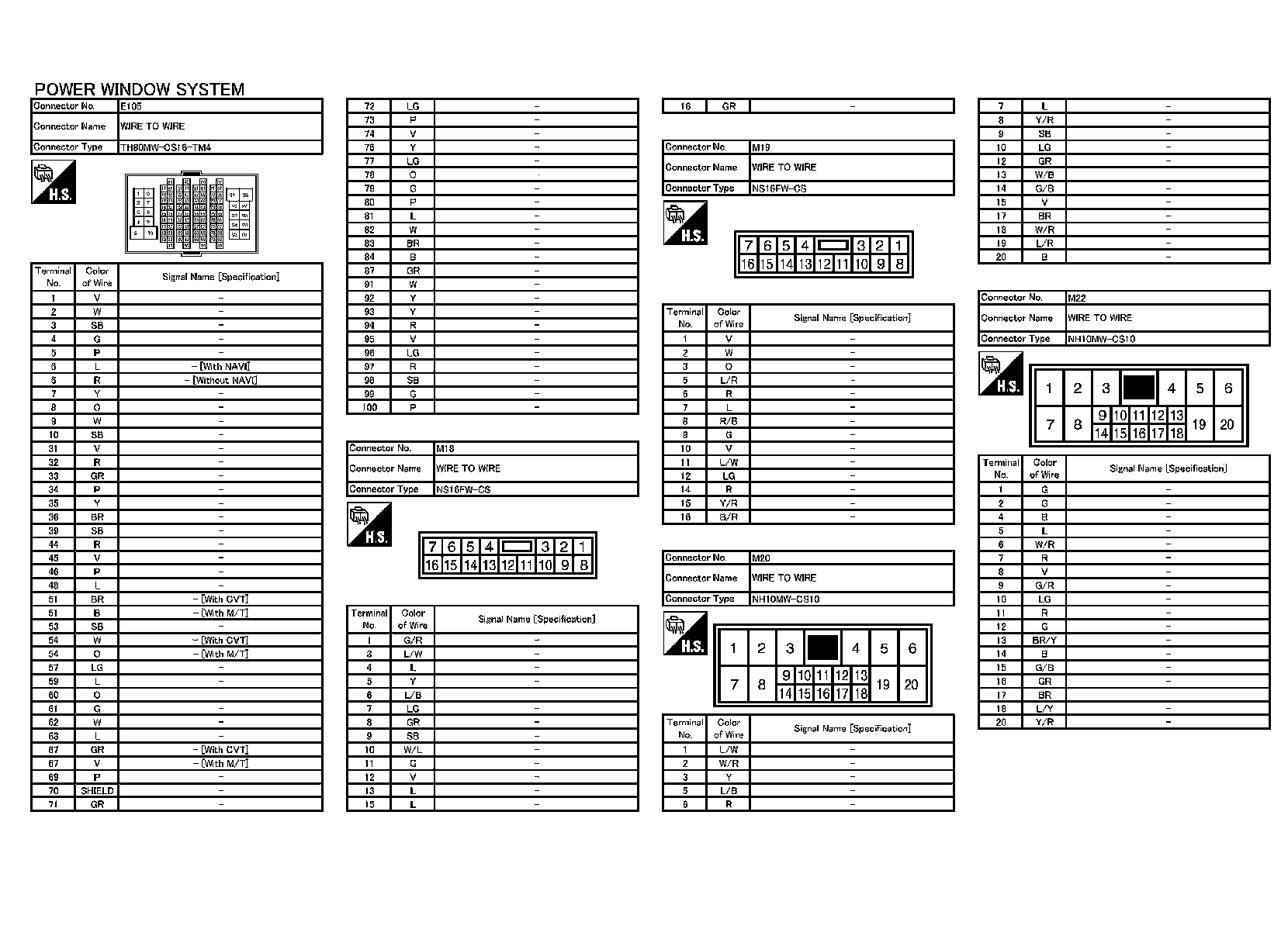

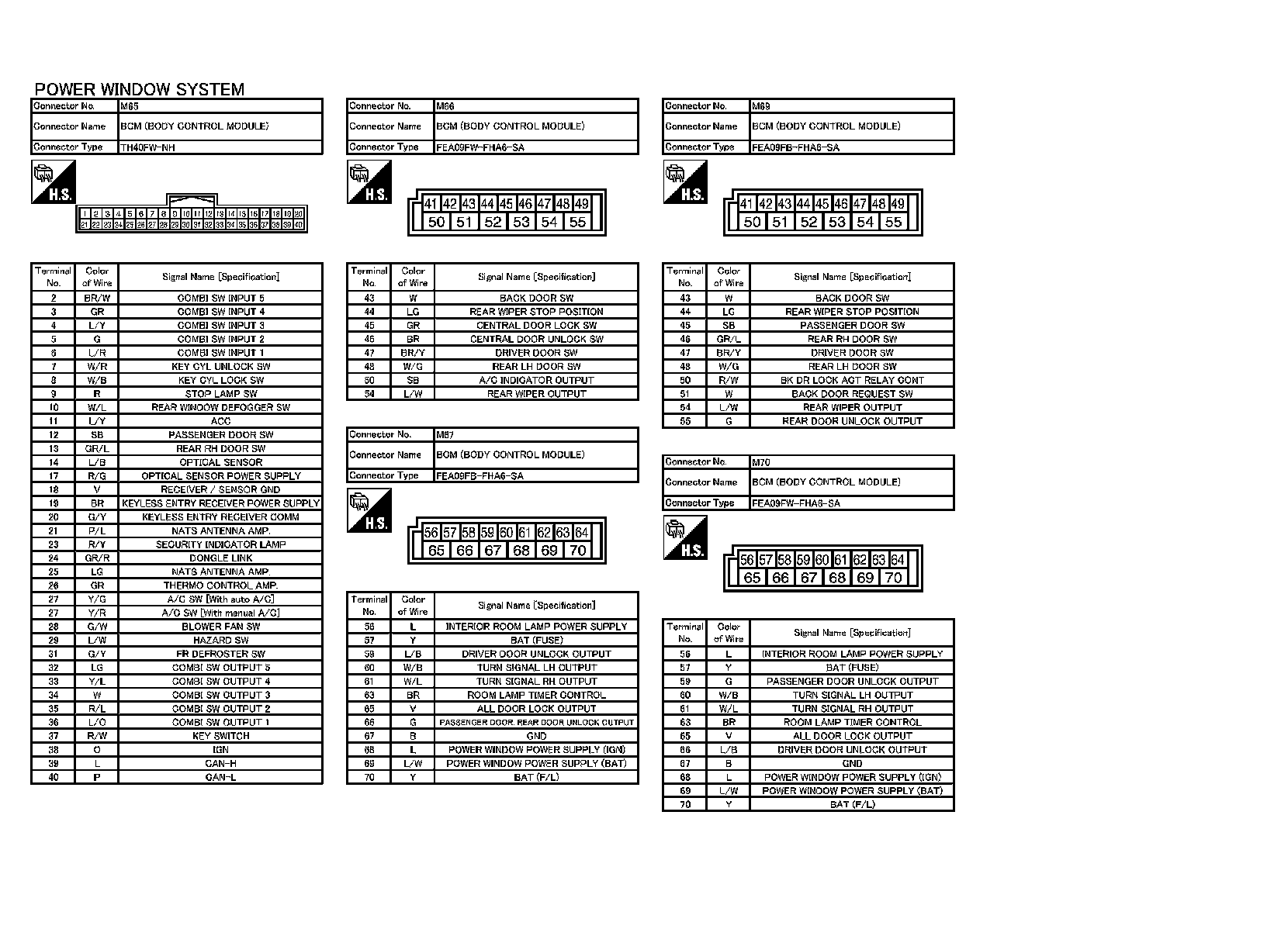

Wiring Diagram - POWER WINDOW CONTROL SYSTEM -
