BCM With Intelligent Key





BCM (BODY CONTROL MODULE)

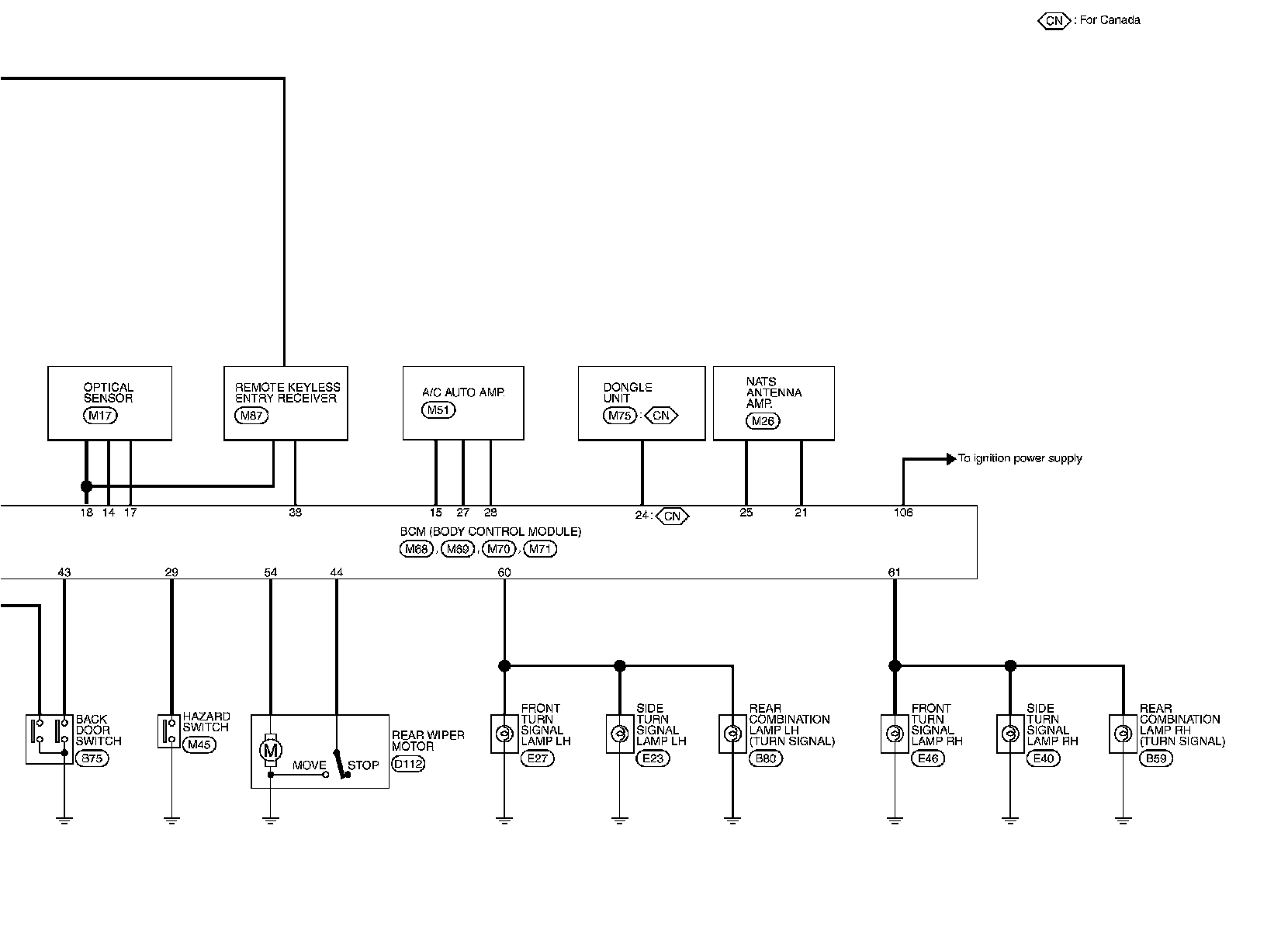

WITH INTELLIGENT KEY : Wiring Diagram - BCM -
