IPDM E/R Without Intelligent Key





IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

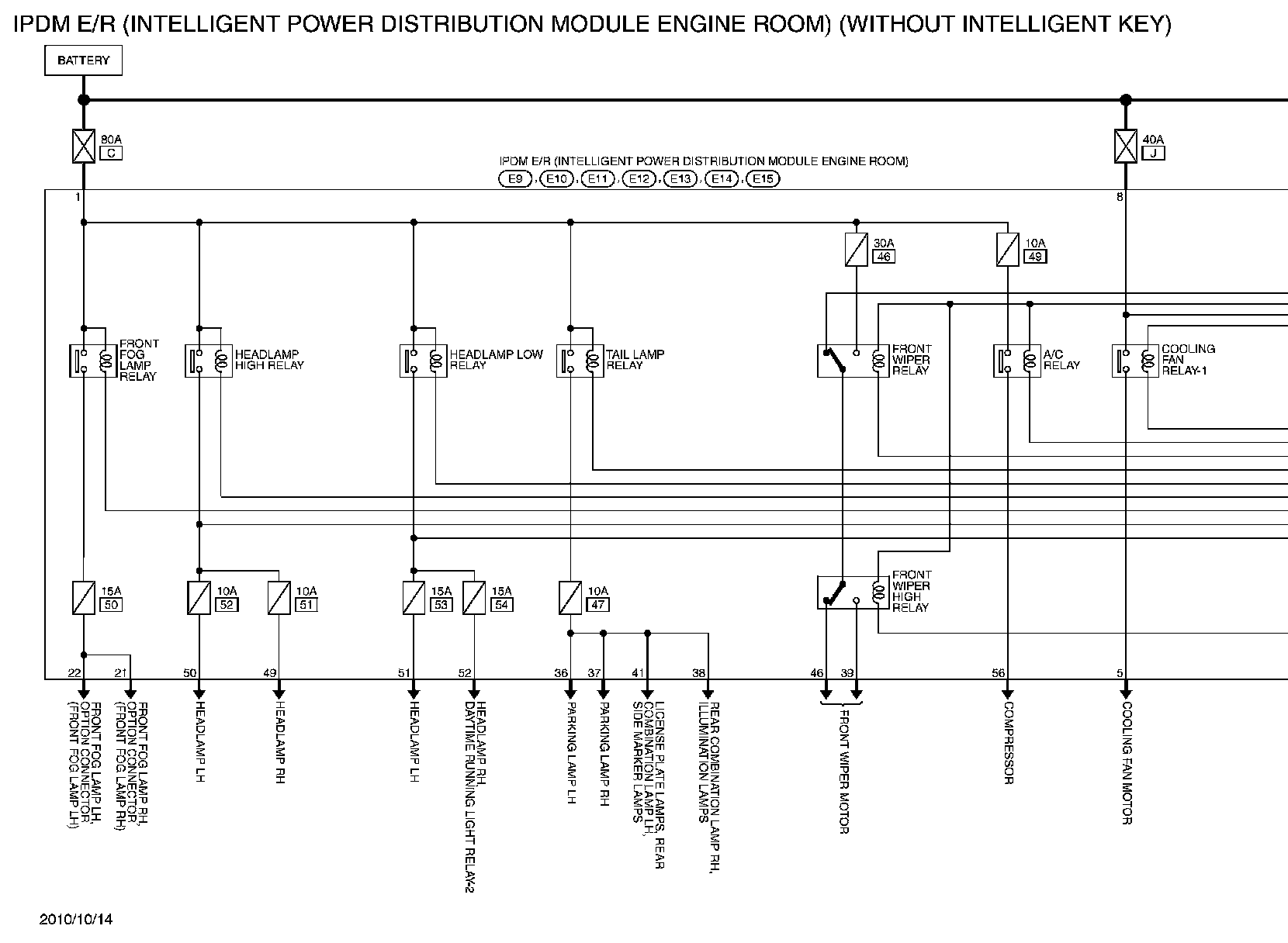

WITHOUT INTELLIGENT KEY : Wiring Diagram -- IPDM E/R --
