Interior lighting With Intelligent Key

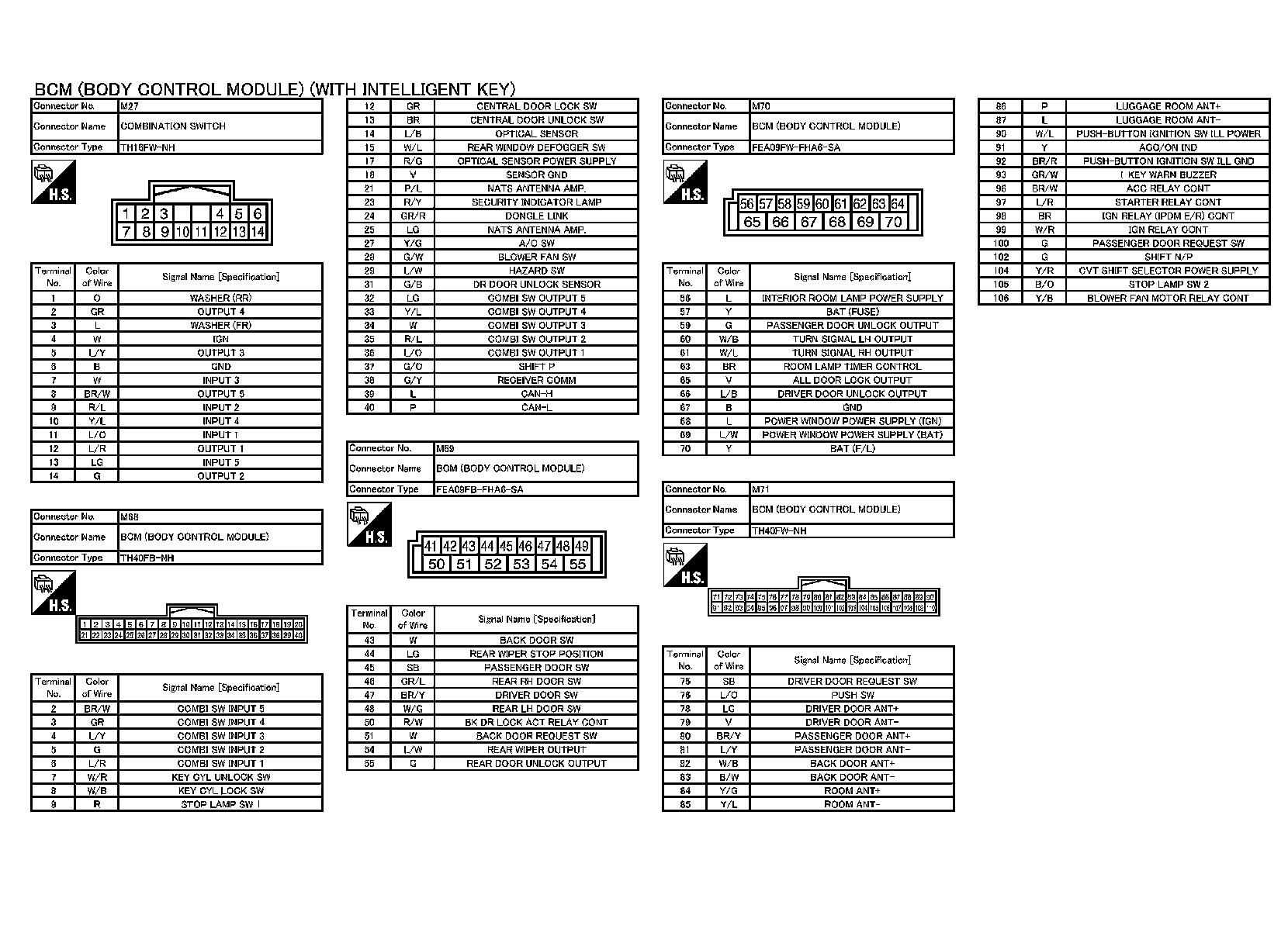

BCM (BODY CONTROL MODULE)

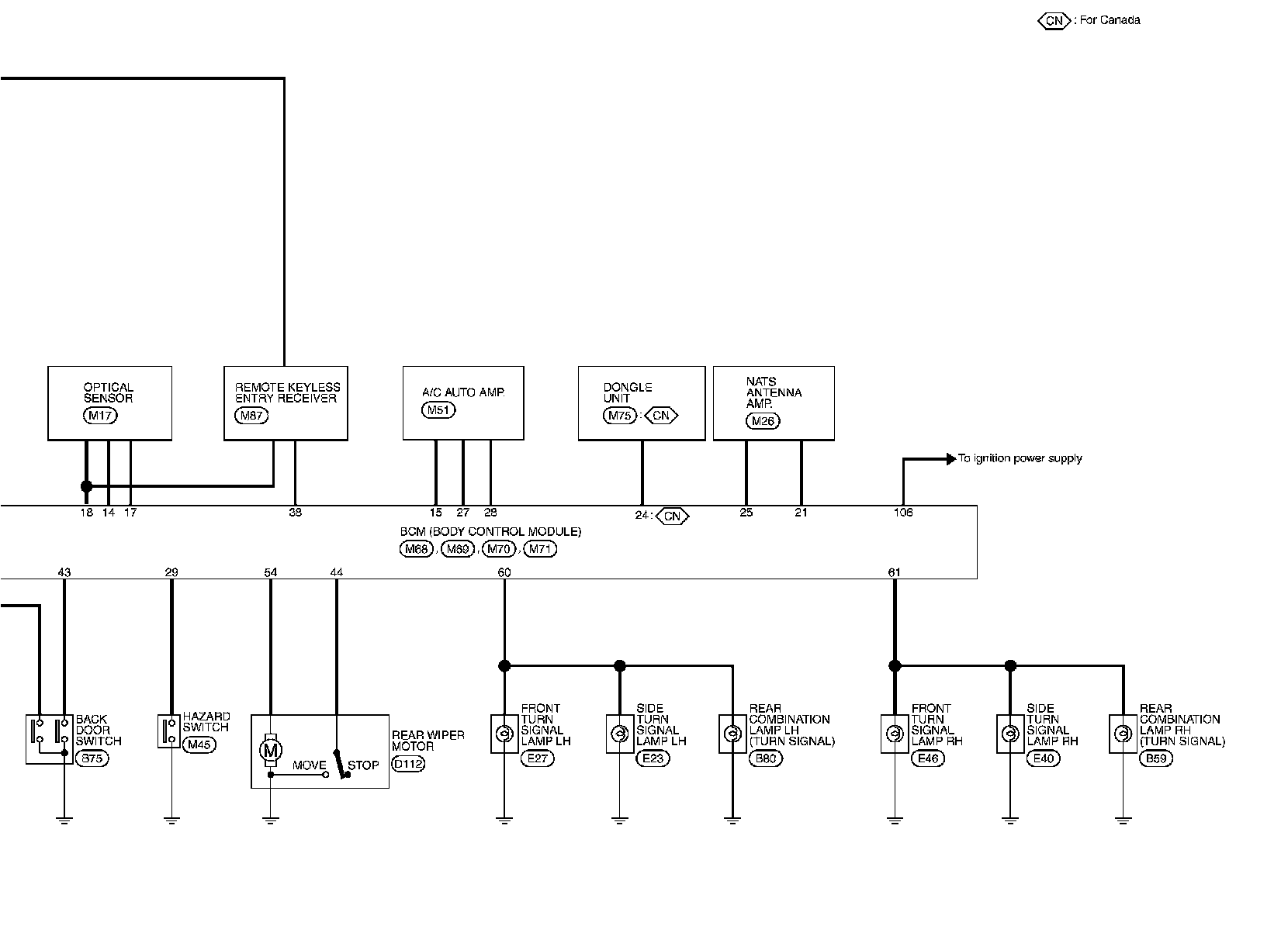

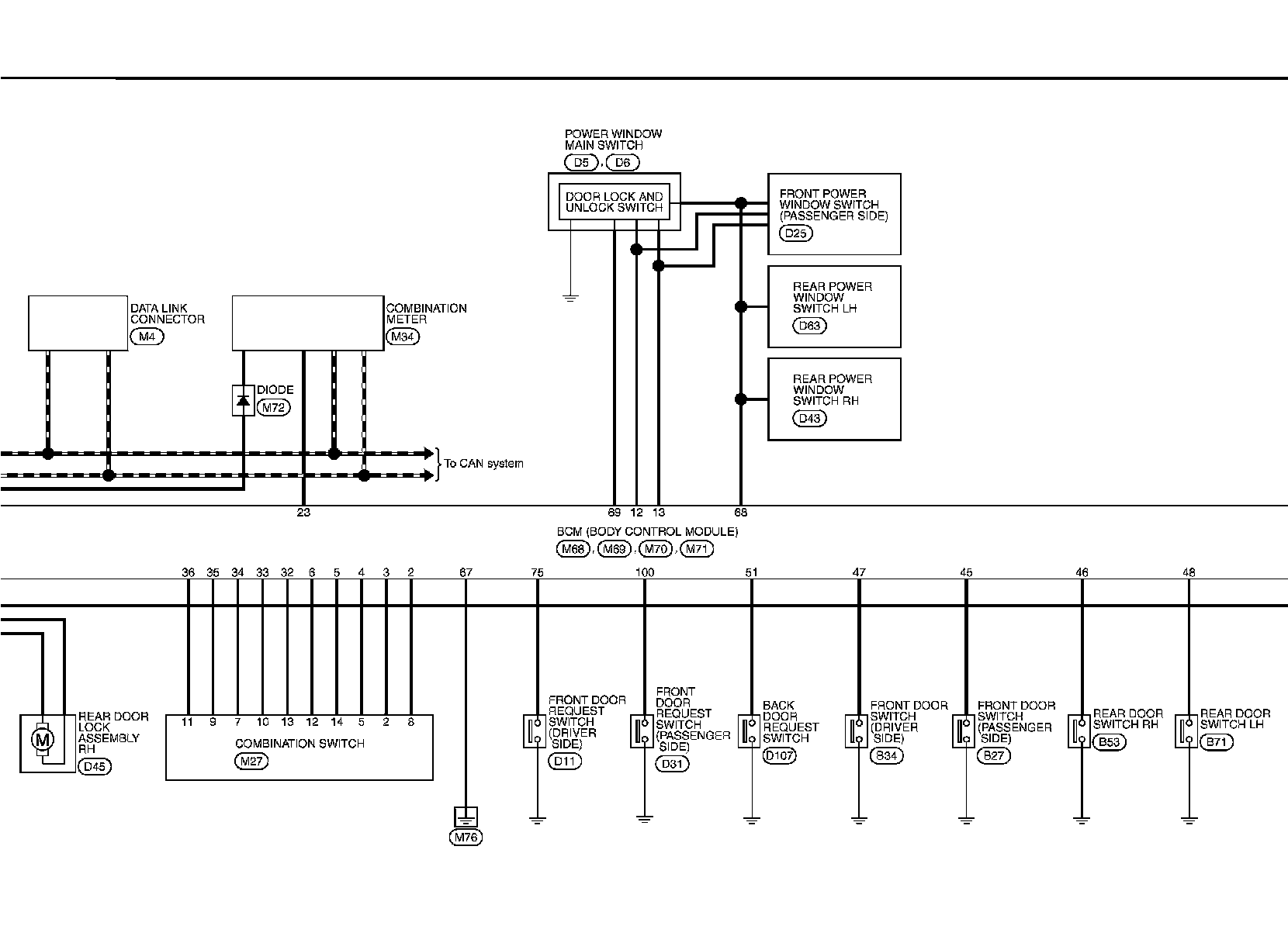

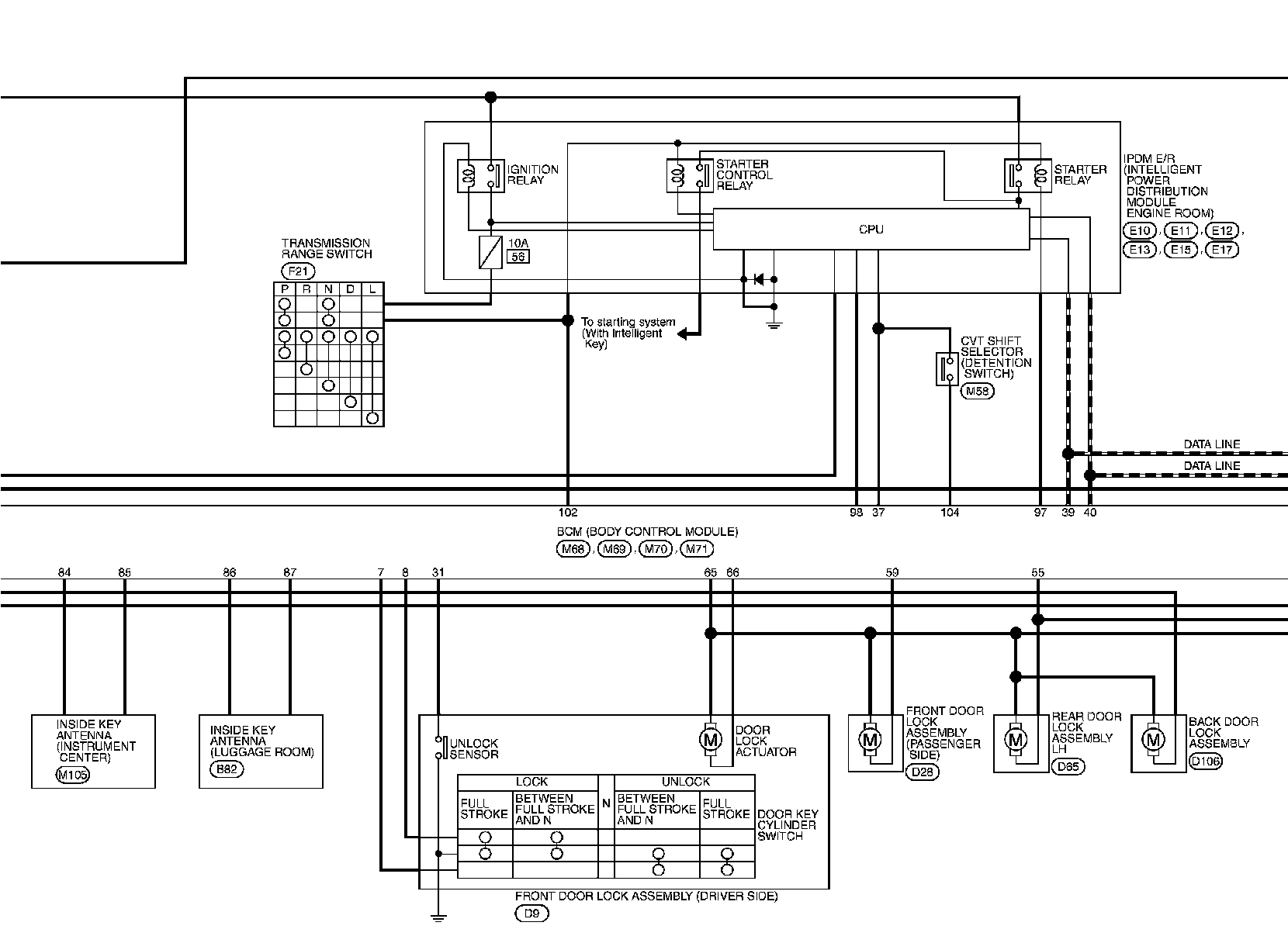

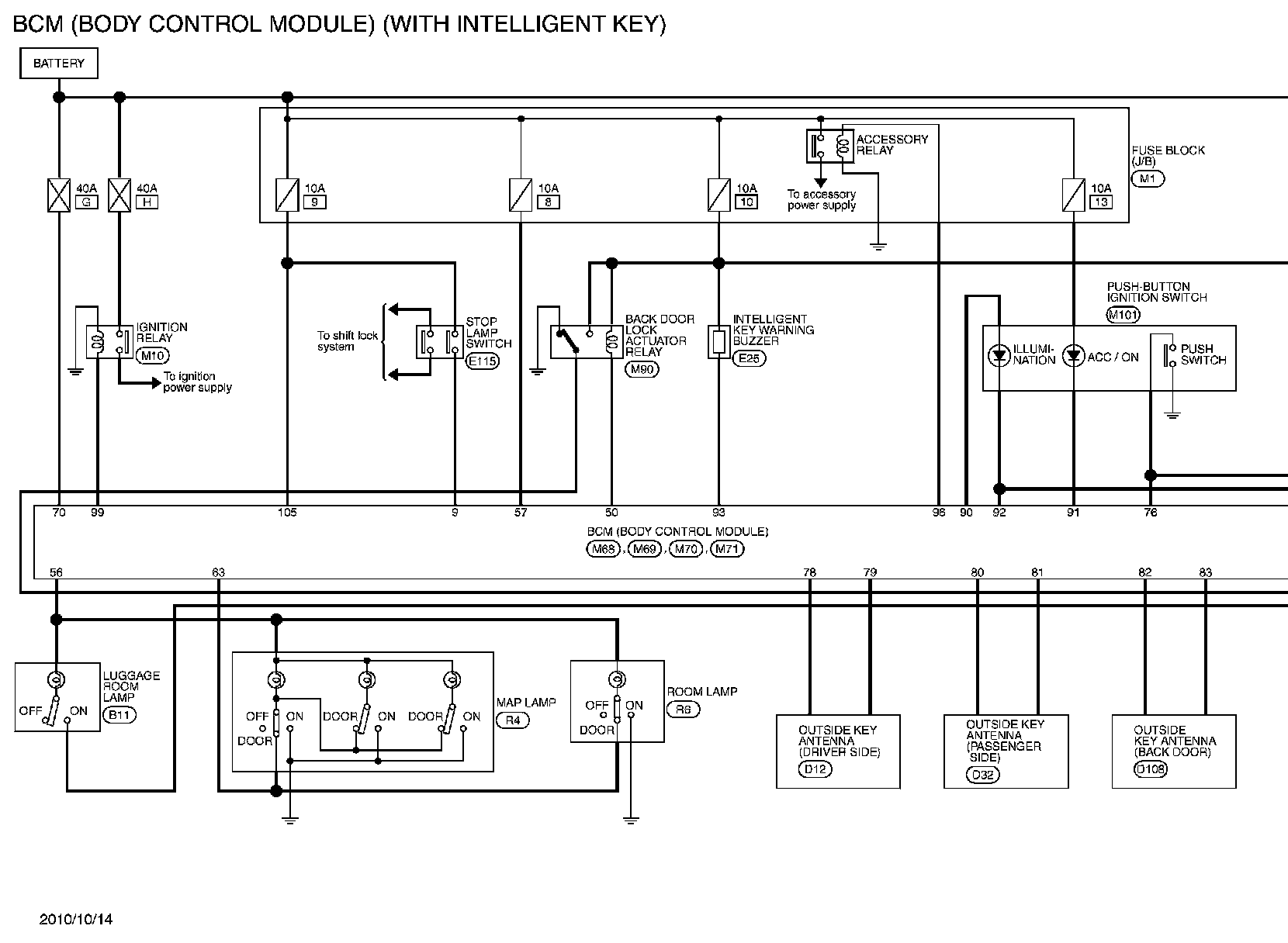

WITH INTELLIGENT KEY : Wiring Diagram - BCM -
