Interior lighting Without Intelligent Key

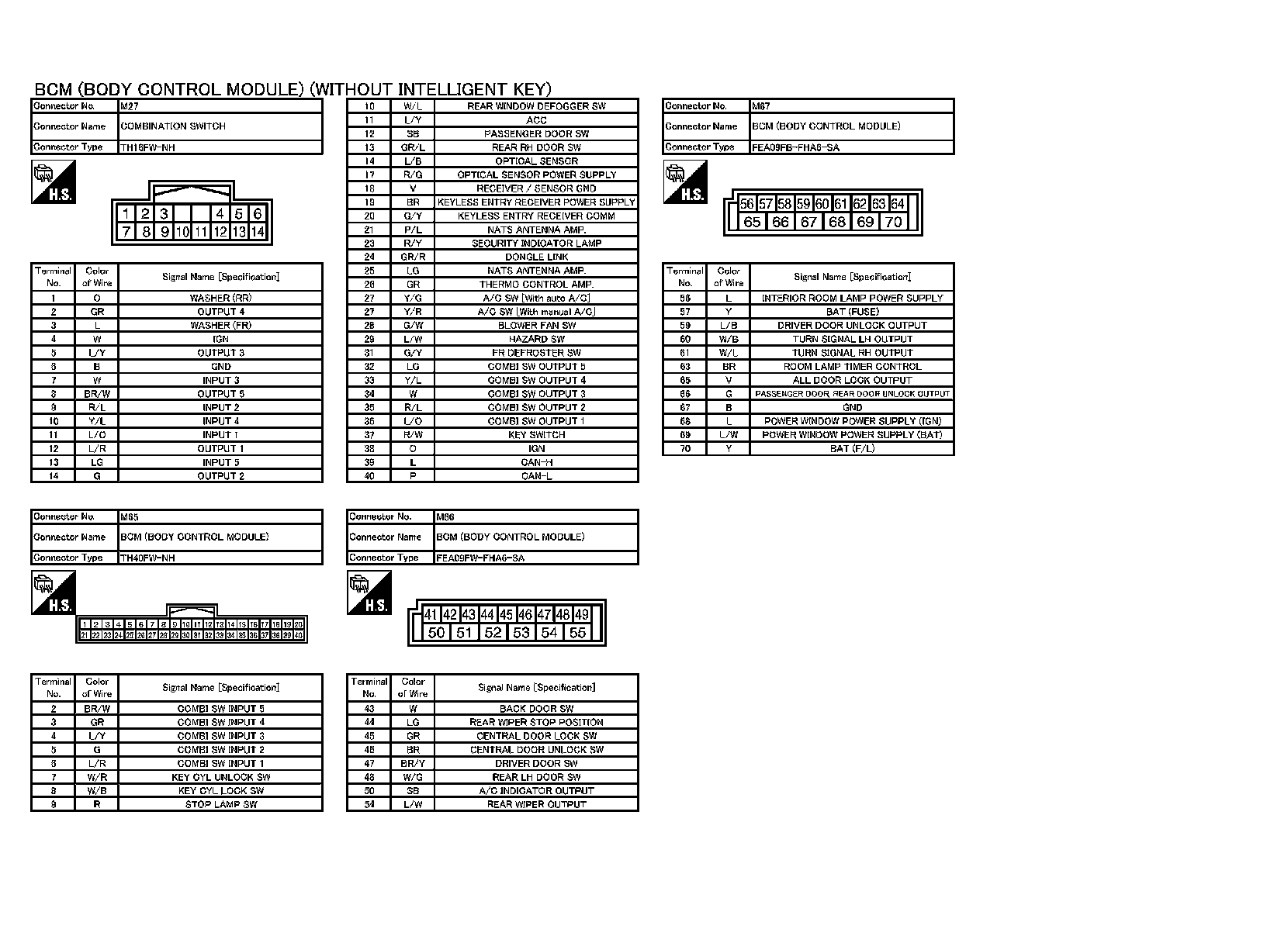

BCM (BODY CONTROL MODULE)

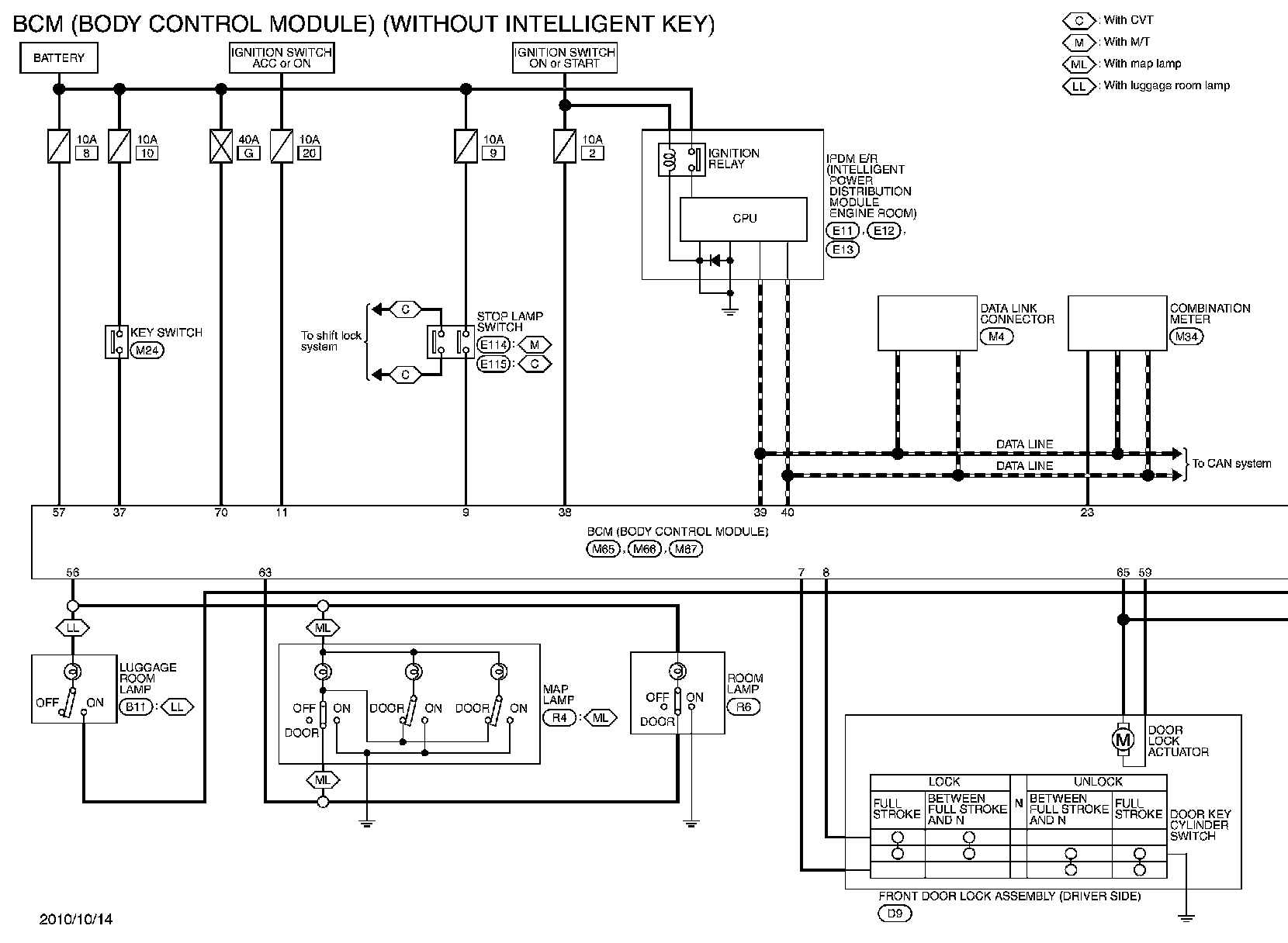

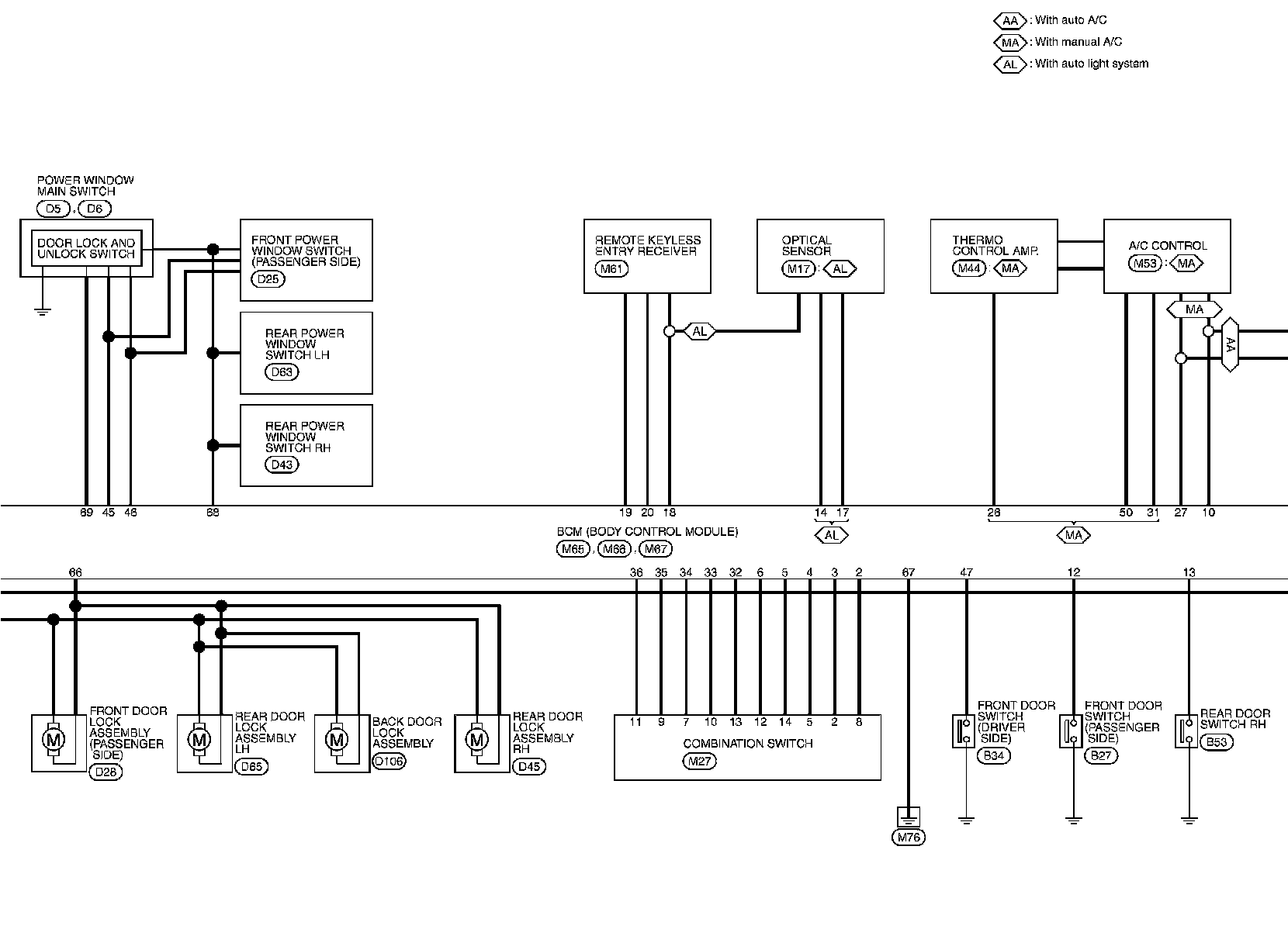

WITHOUT INTELLIGENT KEY : Wiring Diagram - BCM -
