Symptom Related Diagnostic Procedures

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON





Description
The front fog lamps are not turned ON in any condition.




Diagnosis Procedure
1.CHECK FUSE

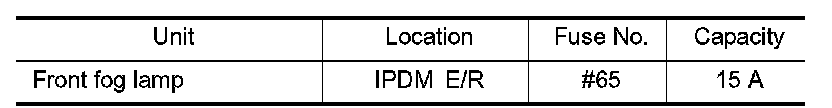

Check that the following fuse is fusing.






Is the fuse fusing?
YES - Repair the applicable circuit. And then replace the fuse.
NO - GO TO 2.
2.COMBINATION SWITCH INSPECTION
Check the combination switch. Combination Switch System Symptoms With Intelligent Key System.
Is the combination switch normal?
YES - GO TO 3.
NO - Repair or replace the malfunctioning part.
3.CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT
CONSULT-III DATA MONITOR

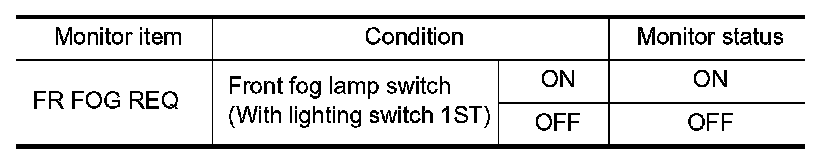

1. Select "FR FOG REQ" of IPDM E/R data monitor item.
2. With operating the front fog lamp switch, check the monitor status.






Is the item status normal?
YES - GO TO 4.
NO - Replace BCM. Exploded View.
4.FRONT FOG LAMP CIRCUIT INSPECTION
Check the front fog lamp circuit. Front Fog Lamp Circuit.
Is the front fog lamp circuit normal?
YES - Replace IPDM E/R.
NO - Repair or replace the malfunctioning part.
