Tail Lamp Circuit

TAIL LAMP CIRCUIT





Component Function Check

NOTE:
Check the parking lamp circuit if the parking lamp and the tail lamp are not turned ON.
1.CHECK TAIL LAMP OPERATION
IPDM E/R AUTO ACTIVE TEST
1. Activate IPDM E/R auto active test. Diagnosis Description.
2. Check that the tail lamp is turned ON.
CONSULT-III ACTIVE TEST

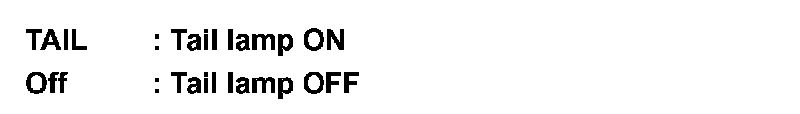

1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.
2. With operating the test items, check that the tail lamp is turned ON.






Is the tail lamp turned ON?
YES - Tail lamp circuit is normal.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK TAIL LAMP OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Disconnect the rear combination lamp connector.
2. Turn the ignition switch ON.
3. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

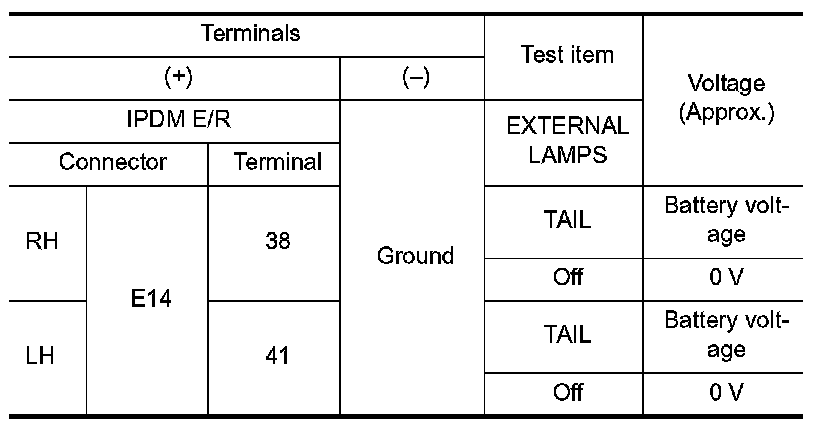

4. With operating the test items, check the voltage between the IPDM E/R harness connector and the ground.






Is the measurement value normal?
YES - GO TO 2.
NO - Replace IPDM E/R.
2.CHECK TAIL LAMP OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.

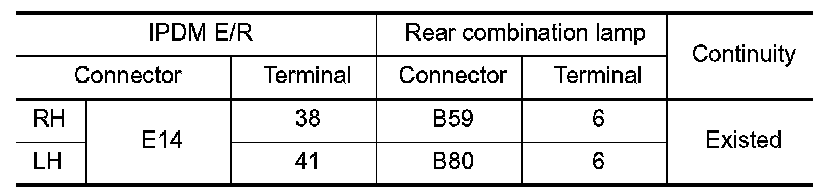

3. Check continuity between the IPDM E/R harness connector and the rear combination lamp harness connector.






Does continuity exist?
YES - GO TO 3.
NO - Repair the harnesses or connectors.
3.CHECK TAIL LAMP GROUND OPEN CIRCUIT
Check continuity between the rear combination lamp harness connector and the ground.






Does continuity exist?
YES - Replace the rear combination lamp.
NO - Repair the harnesses or connectors.
