Both Side Headlamps (LO) Are Not Turned ON

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON





Description
Both side headlamps (LO) are not turned ON in any condition.




Diagnosis Procedure
1.CHECK COMBINATION SWITCH
Check the combination switch. Combination Switch System Symptoms With Intelligent Key System.
Is the combination switch normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning part.
2.CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT
CONSULT-III DATA MONITOR

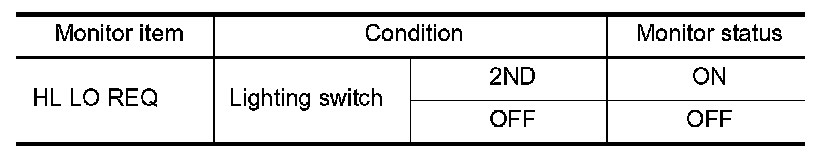

1. Select "HL LO REQ" of IPDM E/R data monitor item.
2. With operating the lighting switch, check the monitor status.






Is the item status normal?
YES - GO TO 3.
NO - Replace BCM. Exploded View.
3.HEADLAMP (LO) CIRCUIT INSPECTION
Check the headlamp (LO) circuit. Component Function Check.
Is the headlamp (LO) circuit normal?
YES - Replace IPDM E/R.
NO - Repair or replace the malfunctioning part.
