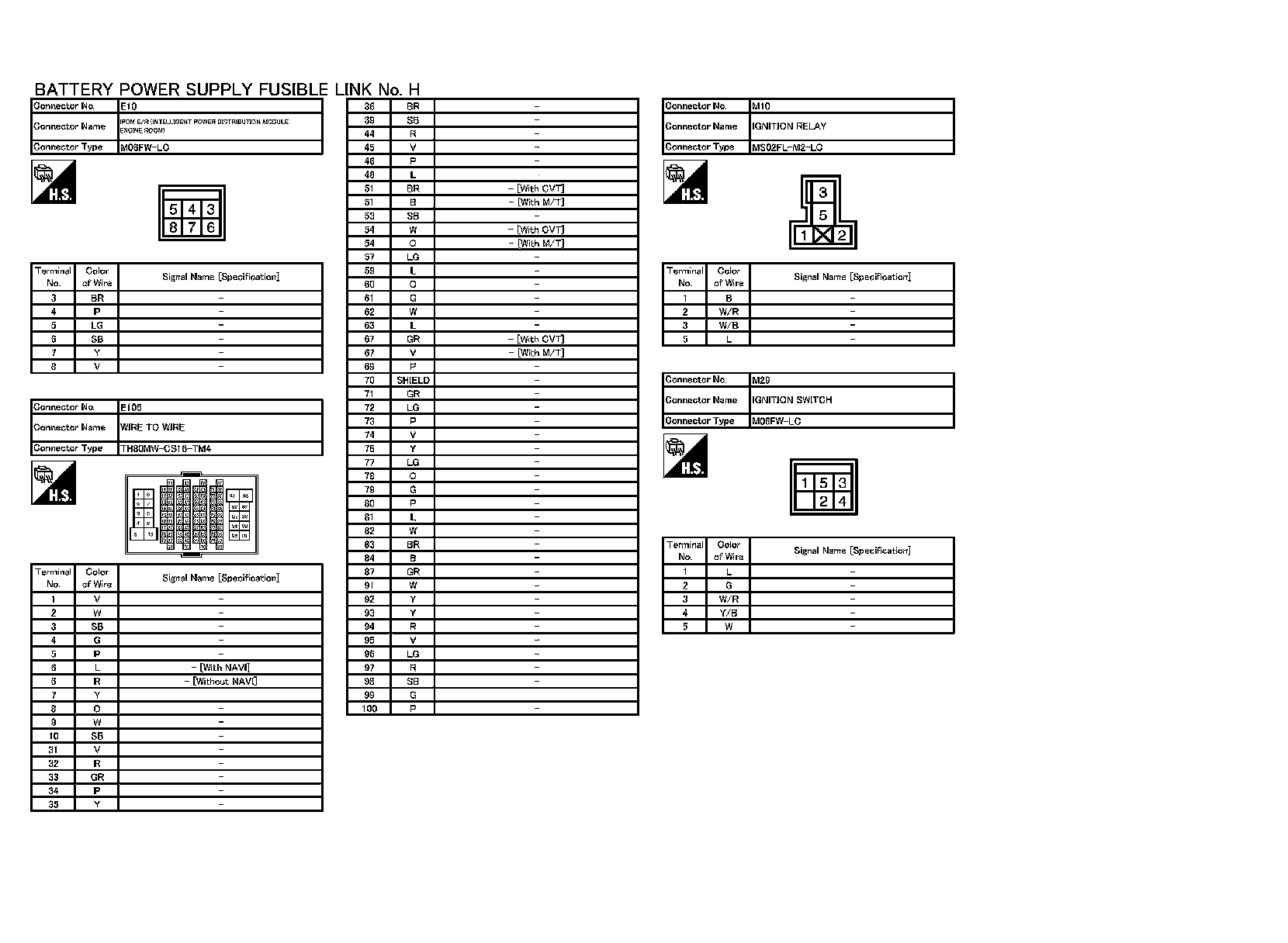

Battery Power Supply Fusible Link No. H
Battery Power Supply Fusible Link No. H
POWER SUPPLY ROUTING CIRCUIT

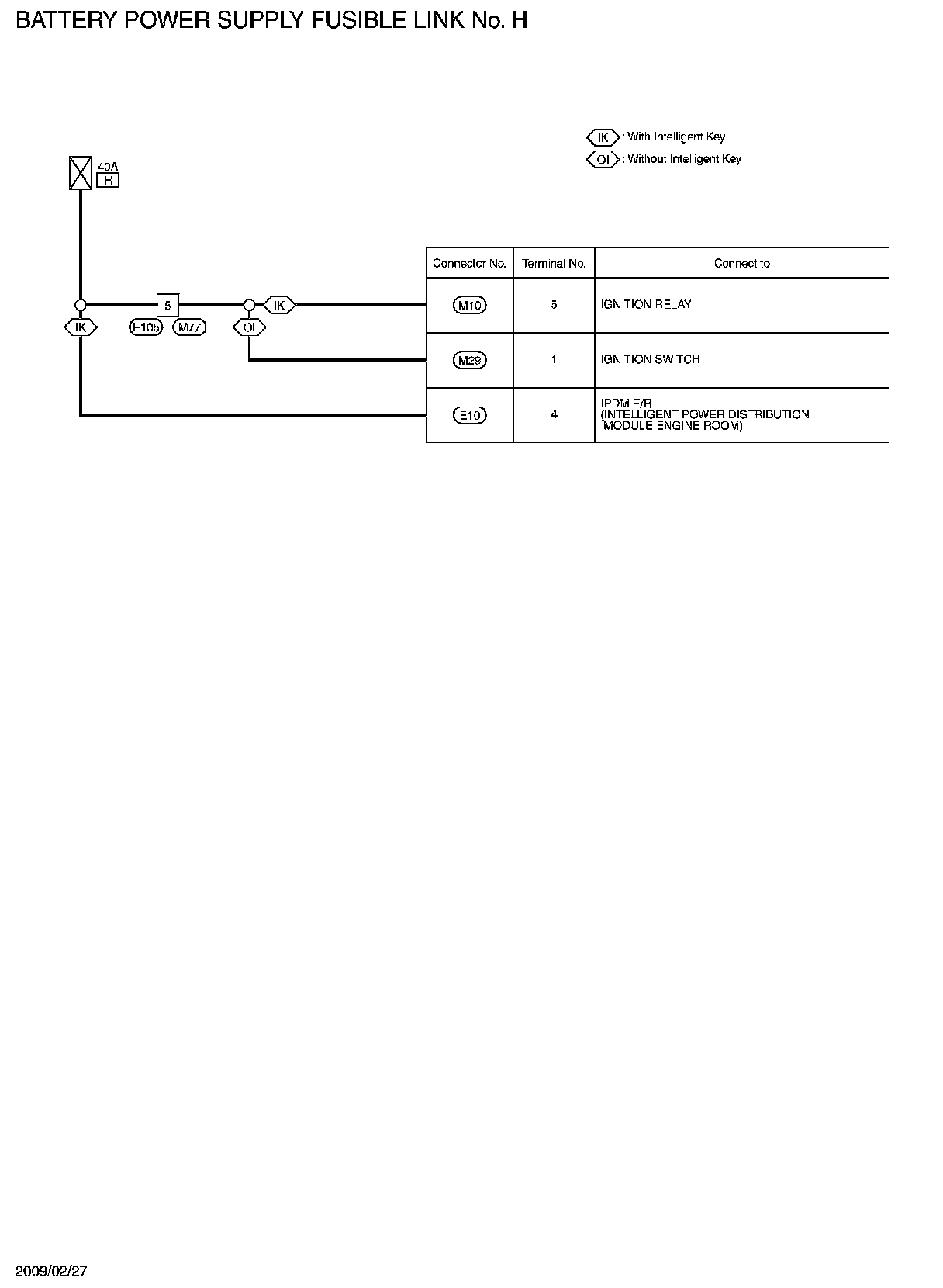

Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK
No. H -
