Electric Ignition System Except For California





ELECTRIC IGNITION SYSTEM

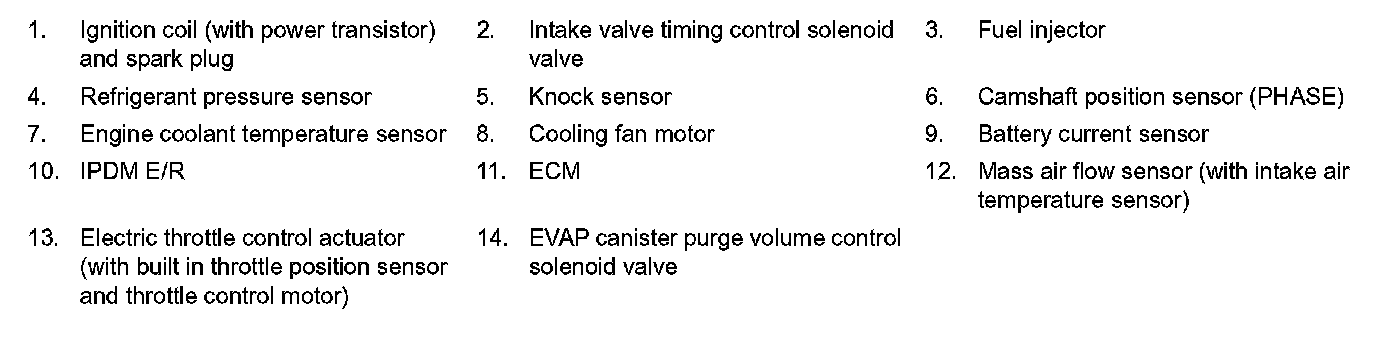

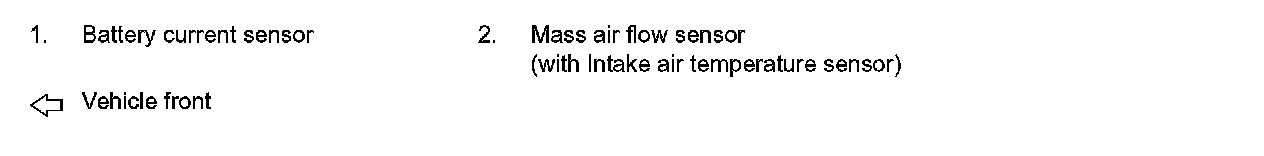

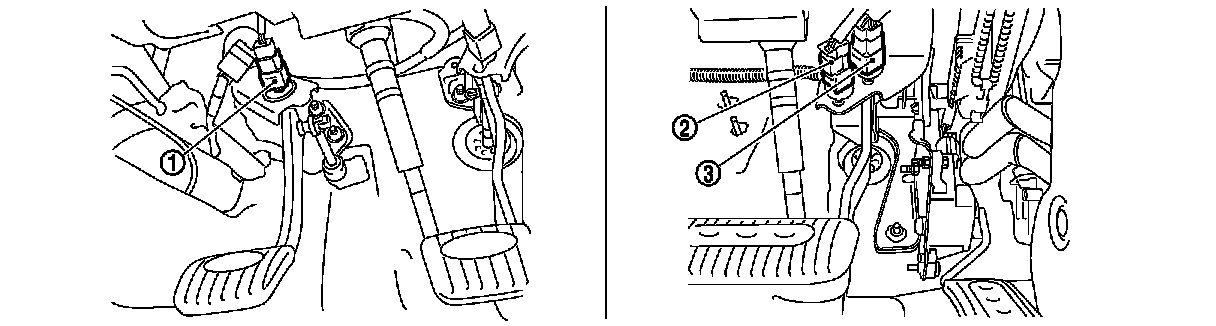

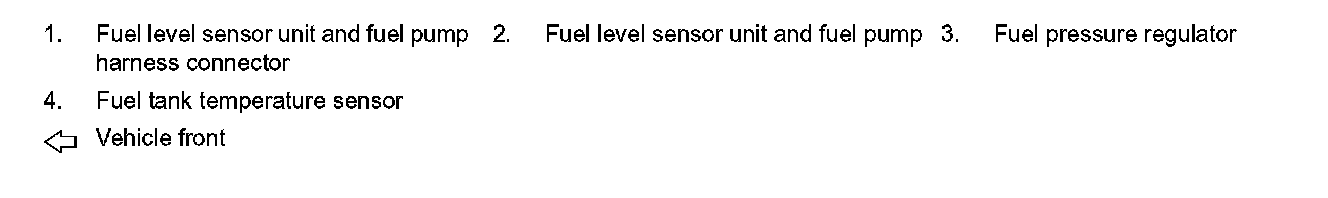

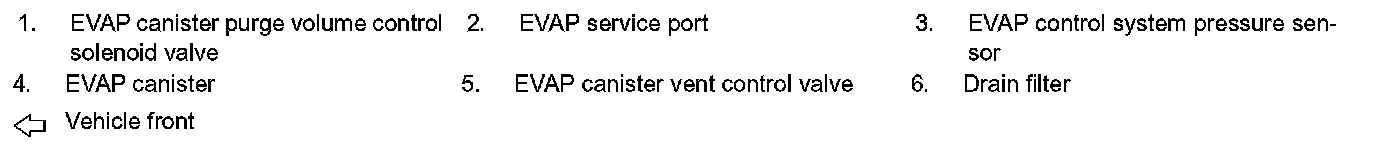

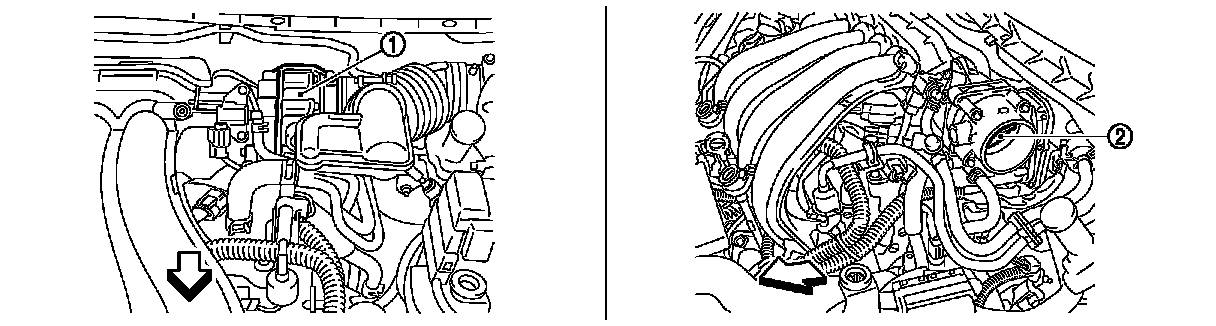

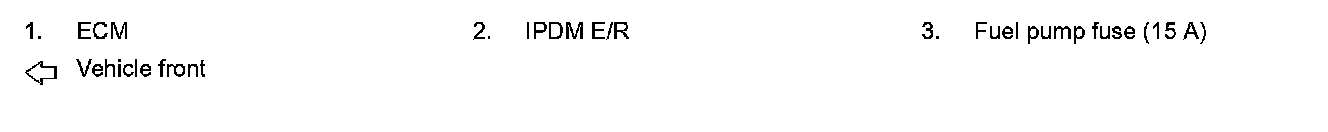

Component Parts Location
