Torque & Sequence

CLUTCH DISC AND CLUTCH COVER

First step 15 N.m (1.5 kg-m, 11 ft-lb)

Final step 25 N.m (2.6 kg-m, 19 ft-lb)

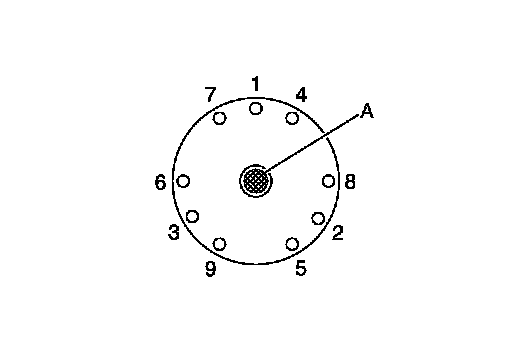

Tighten clutch cover mounting bolts to the specified torque evenly in two steps in the numerical order as shown in the figure.
