Connecting Rod, Engine

Connecting Rod Bolt

Tighten connecting rod cap bolt with the following procedure:

Tighten connecting rod cap bolts.






Completely loosen connecting rod cap bolts.






Tighten connecting rod cap bolts.






Then turn all connecting rod cap bolts 60 degrees clockwise (angle tightening).

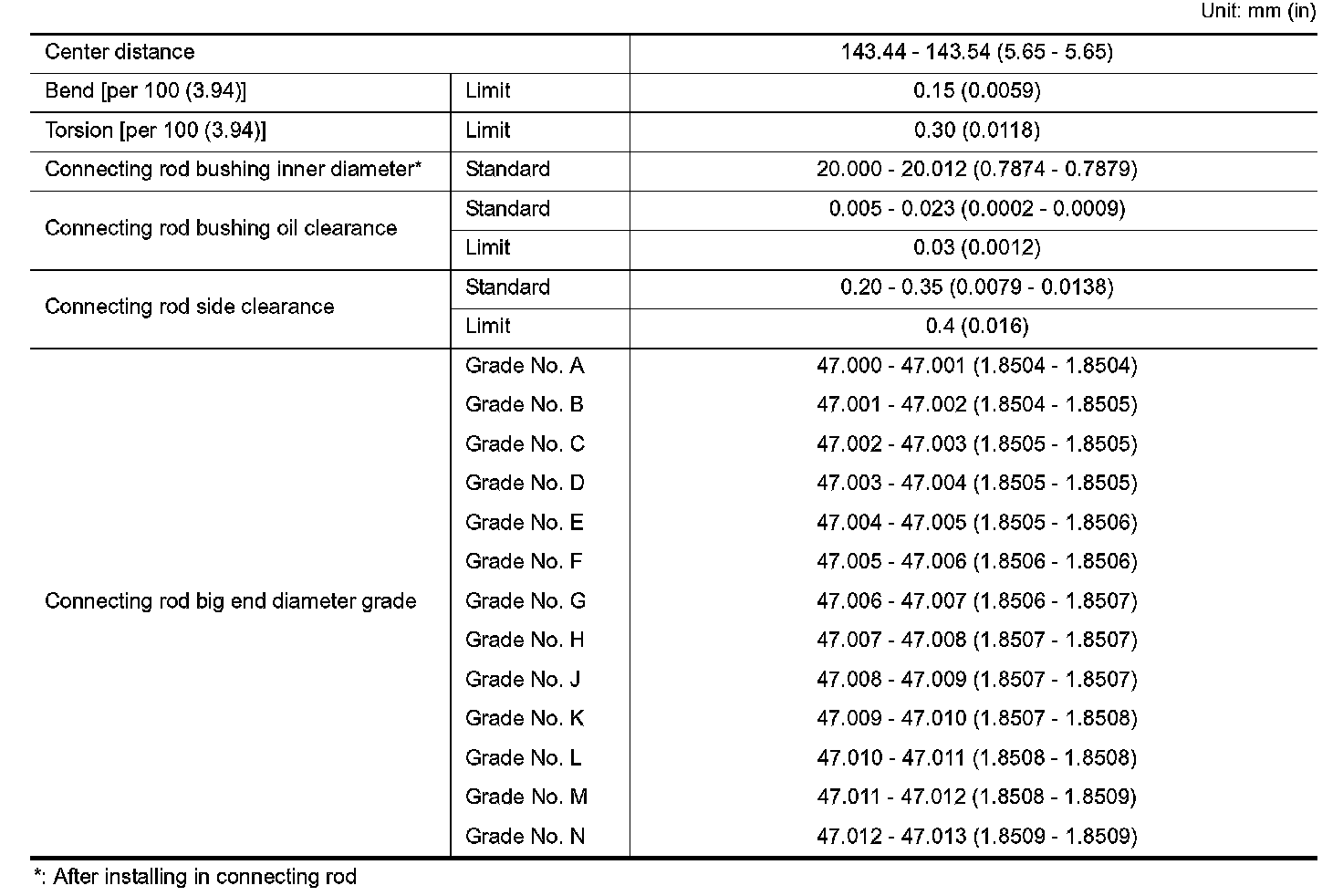

CONNECTING ROD
