U1244

U1244 GPS ANTENNA

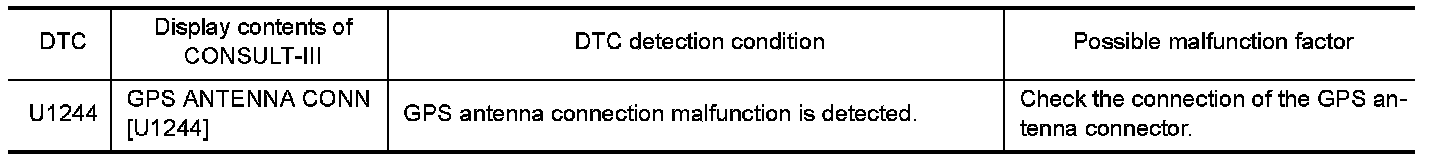

DTC Logic









Diagnosis Procedure
Regarding Wiring Diagram information, Bose Audio With Color Display With Navigation System Bose W/ Color Display W/ Navi.
1.GPS ANTENNA CHECK
Inspect GPS antenna and antenna feeder for damage or poor connection.
Is the GPS antenna and feeder clean and undamaged?
YES - GO TO 2.
NO - Repair or replace malfunctioning parts.
2.CHECK AV CONTROL UNIT VOLTAGE





1. Turn ignition switch ON.
2. Check voltage between AV control unit connector M165 terminal 105 and ground.





Is the voltage reading as specified?
YES - Replace GPS antenna. Service and Repair.
NO - Replace AV control unit. Removal And Installation Bose With Color Display With Navi.
