Grille: Service and Repair

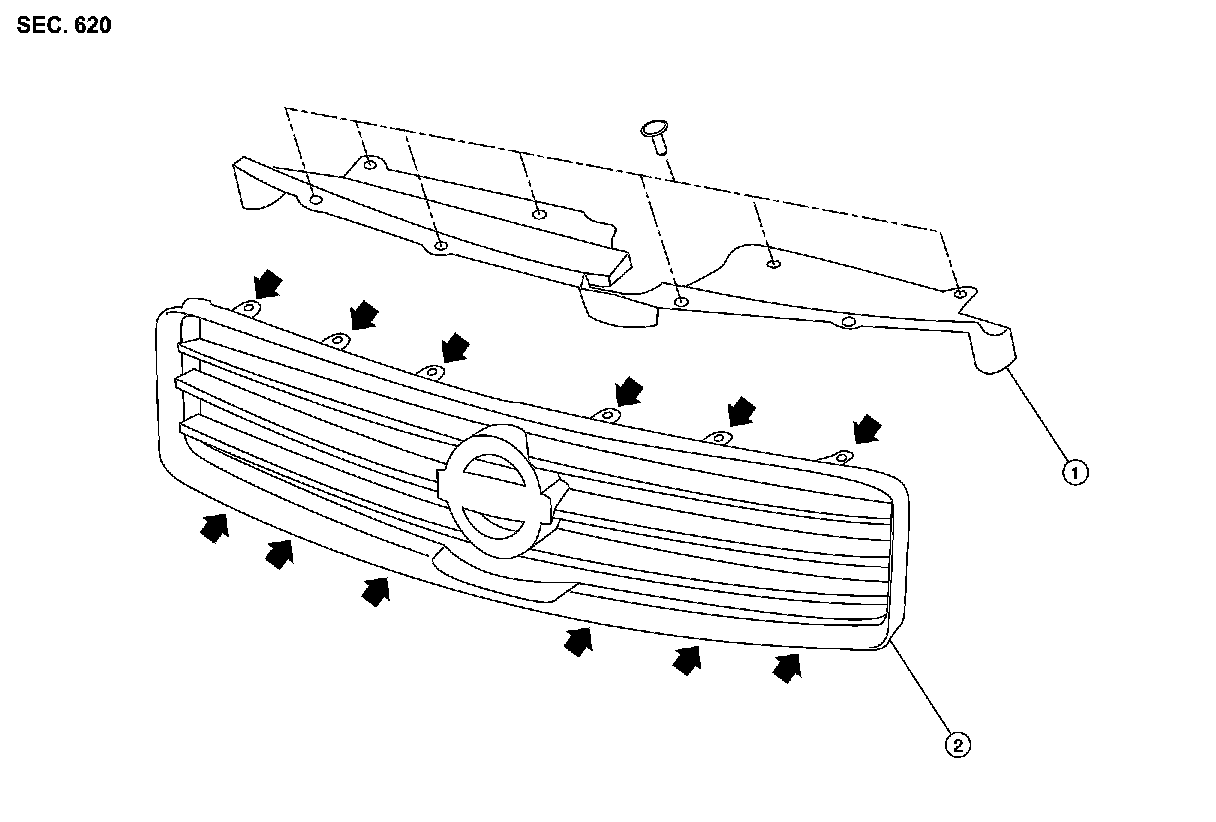

FRONT GRILLE


Removal and Installation












REMOVAL
1. Remove the core support cover clips, then remove core support cover.
2. Release the front air guide clips, then remove front air guide.
3. Release the front grille tabs from behind and push outward, then remove front grille.

INSTALLATION
Installation is in the reverse order of removal.
