Heater Core: Service and Repair

HEATER & COOLING UNIT ASSEMBLY


HEATER CORE : Removal and Installation

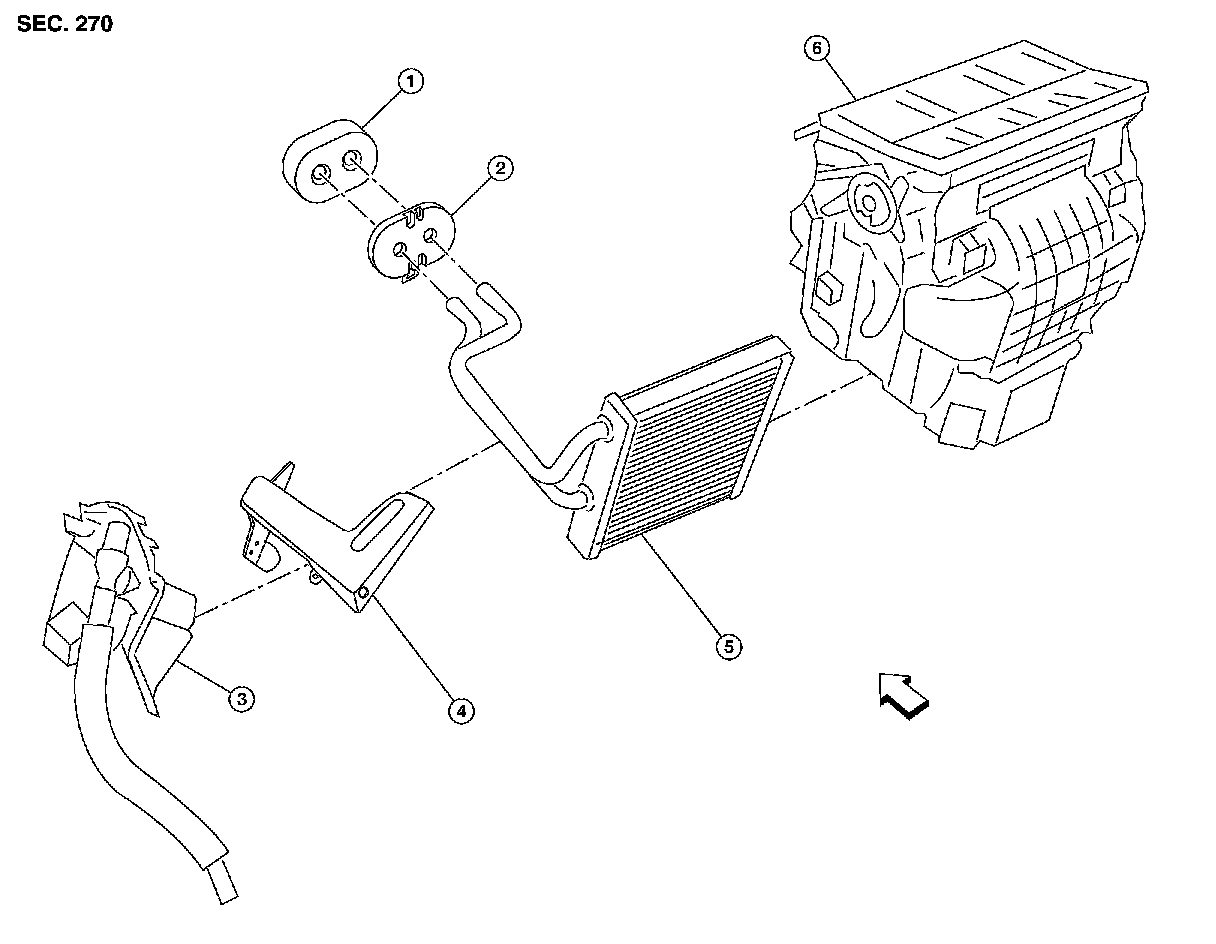

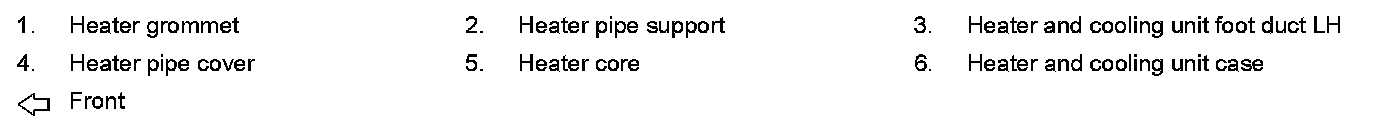

COMPONENTS











REMOVAL
1. Remove the heater and cooling unit assembly. .
2. Remove the heater and cooling unit foot duct LH.
3. Remove the heater grommet, heater pipe support and heater pipe cover.
4. Remove the heater core.

INSTALLATION
Installation is in the reverse order of removal.
- Make sure that the aspirator hose is securely attached to the aspirator on the heater and cooling unit foot duct LH.
