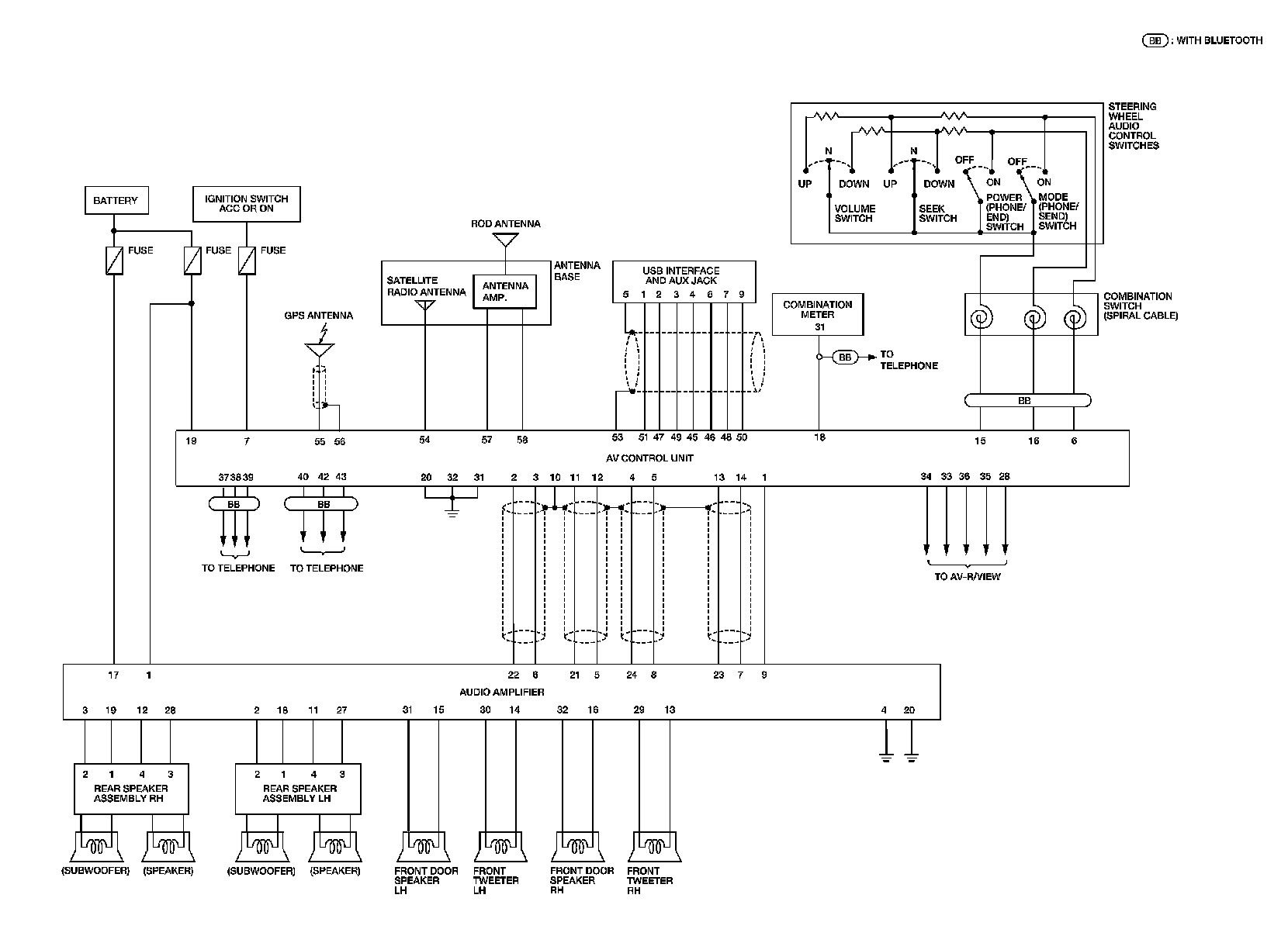

Schematic Audio With Navigation





AUDIO


Schematic


WITHOUT ROCKFORD FOSGATE






WITH ROCKFORD FOSGATE
