Schematic Audio Without Navigation





AUDIO


Schematic

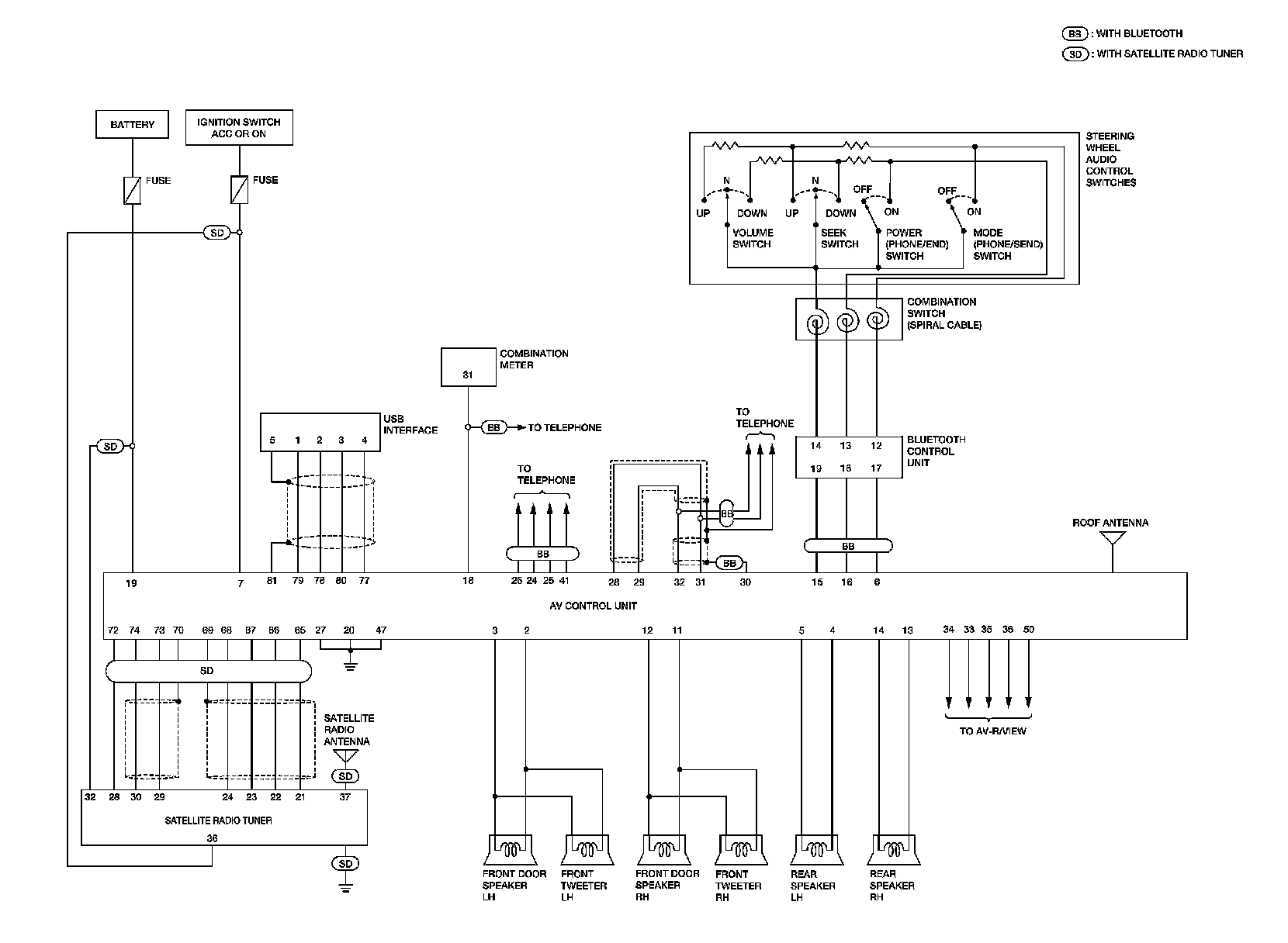

MID SYSTEM

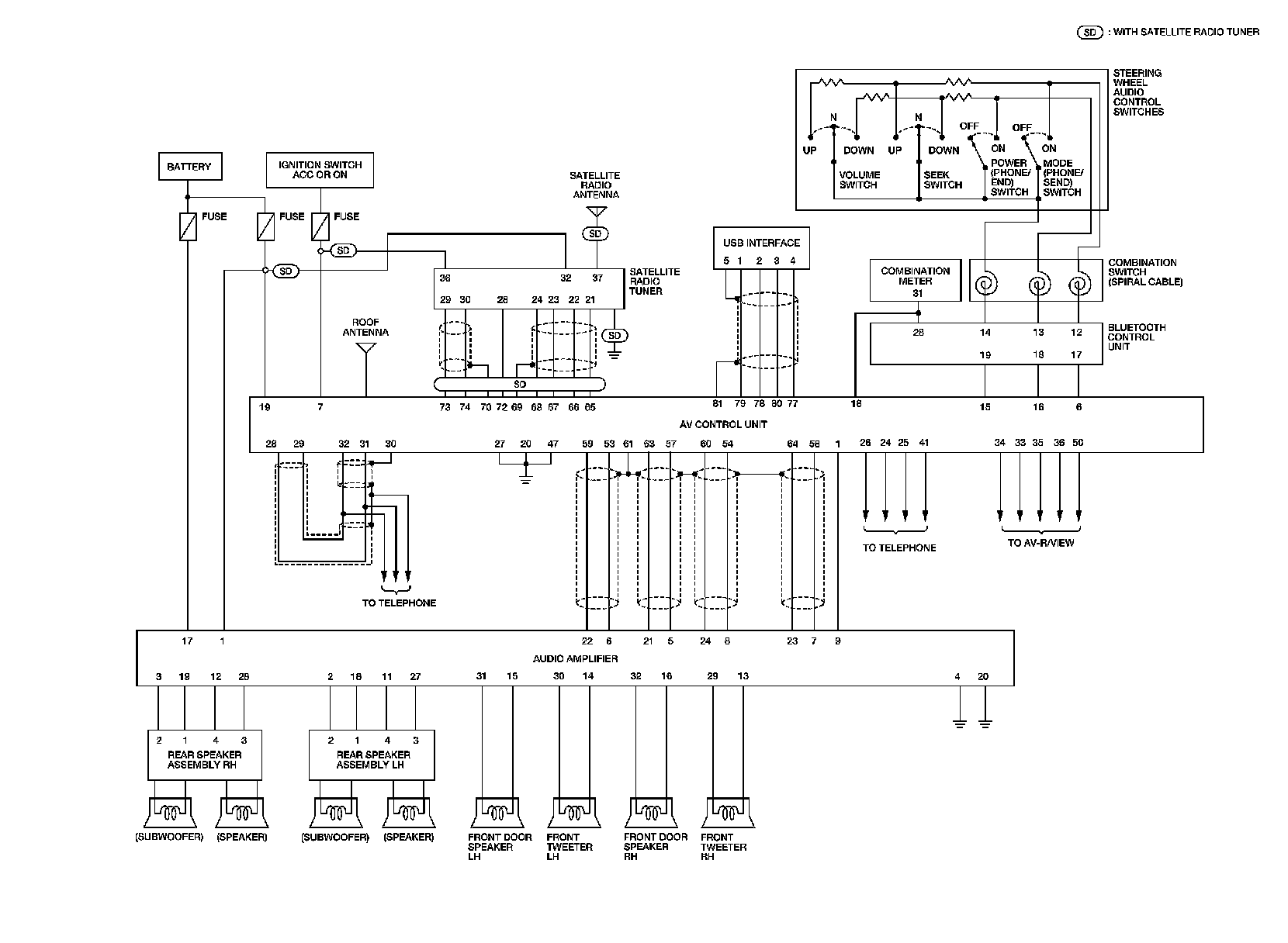

PREMIUM SYSTEM (WITHOUT ROCKFORD FOSGATE)

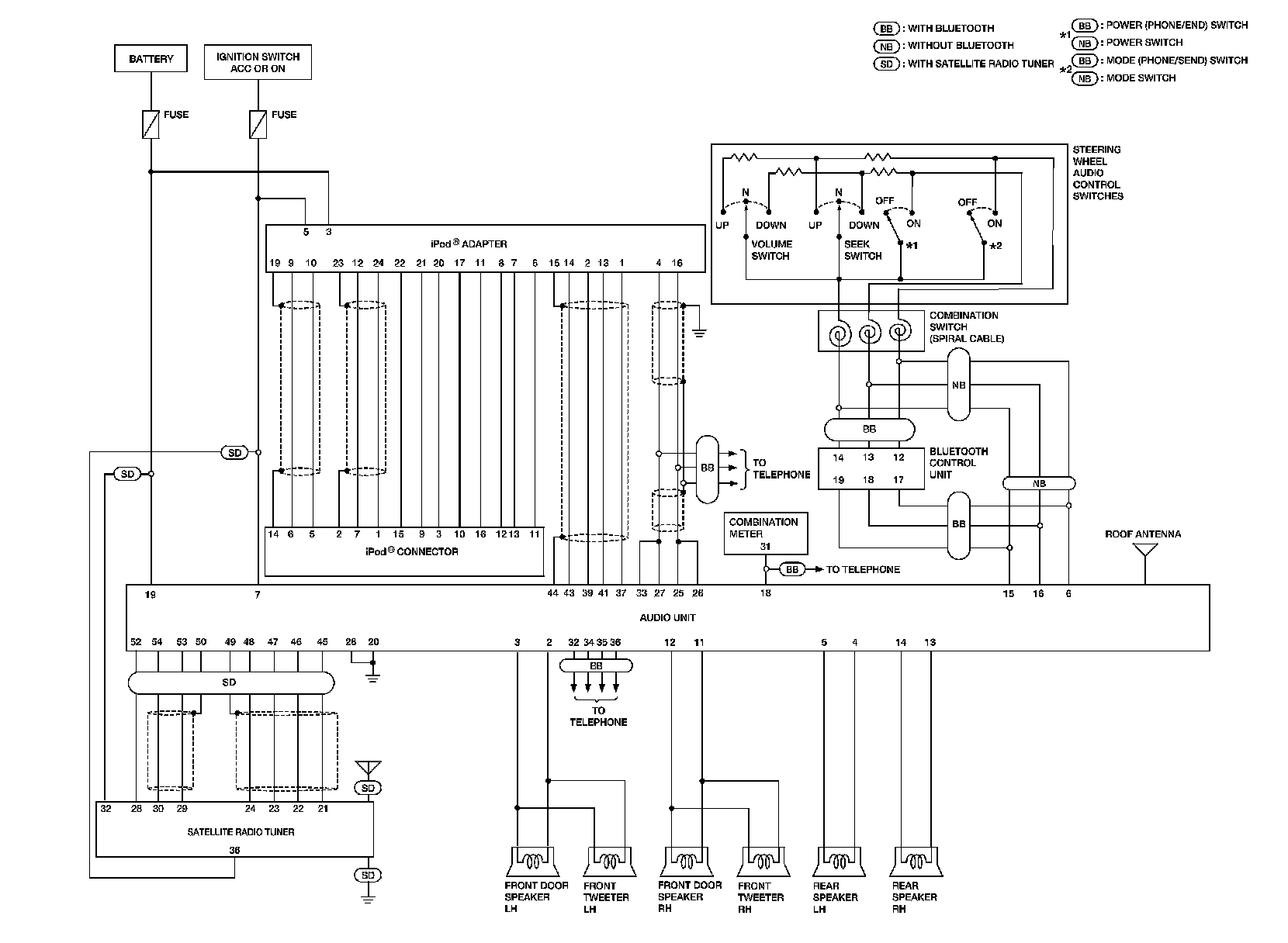

PREMIUM SYSTEM (WITH ROCKFORD FOSGATE)
