Connectors





HARNESS


Harness Layout


HOW TO READ HARNESS LAYOUT





The following Harness Layouts use a map style grid to help locate connectors on the drawings:
- Main Harness, Hazard Switch Sub-harness, Console Switch Subharness and Console Sub-harness
- Engine Room Harness
- Engine Room Harness Passenger Compartment and EPS Subharness
- Engine Control Harness (MR20DE) and Engine Control Harness
(QR25DE)
- Body Harness, Tail Sub-harness and Tail No. 2 Sub-harness
- Room Lamp Harness and Sunroof Sub-harness

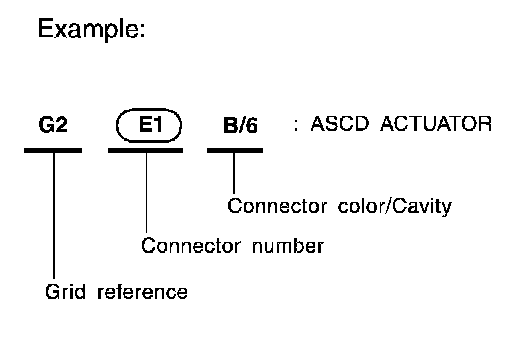

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line to the connector.

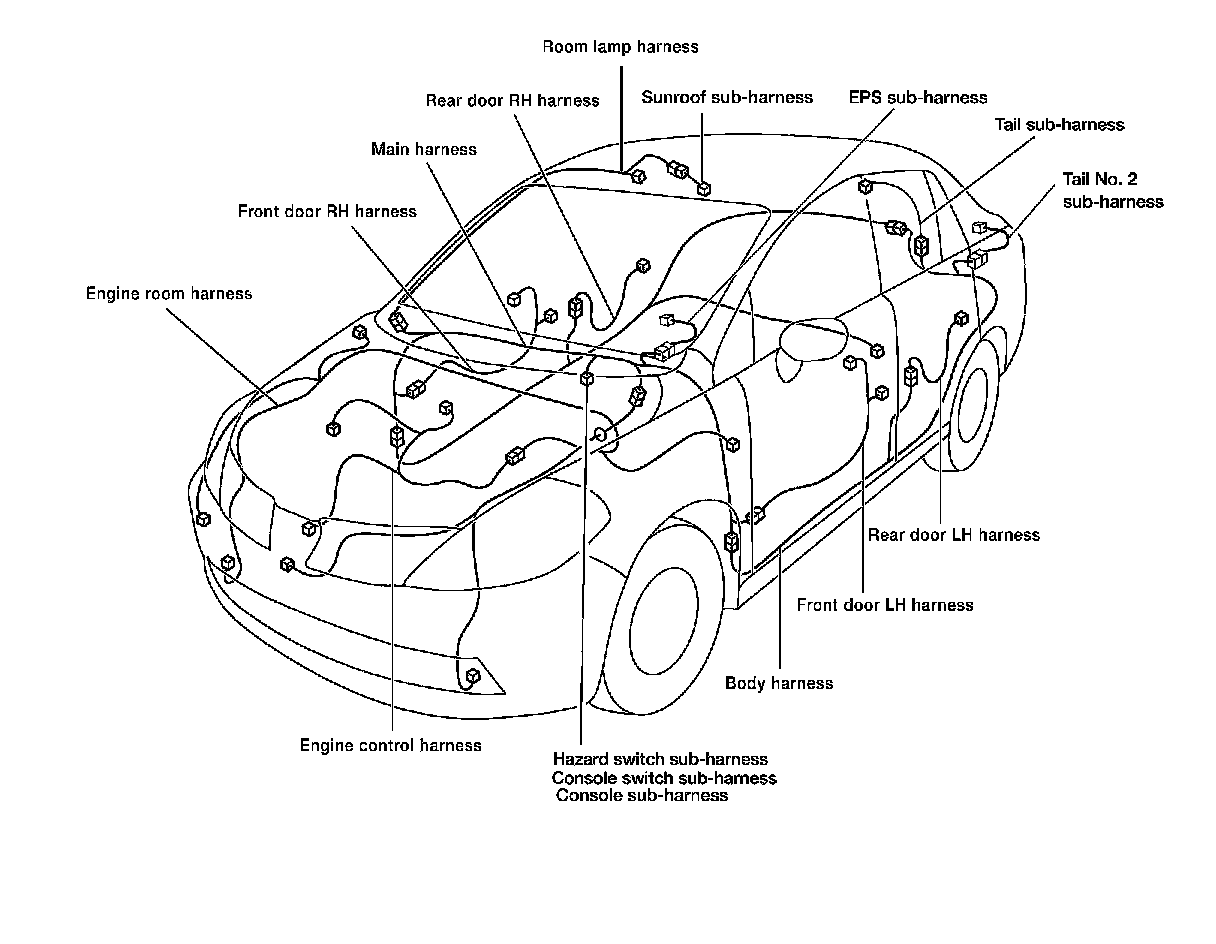

OUTLINE

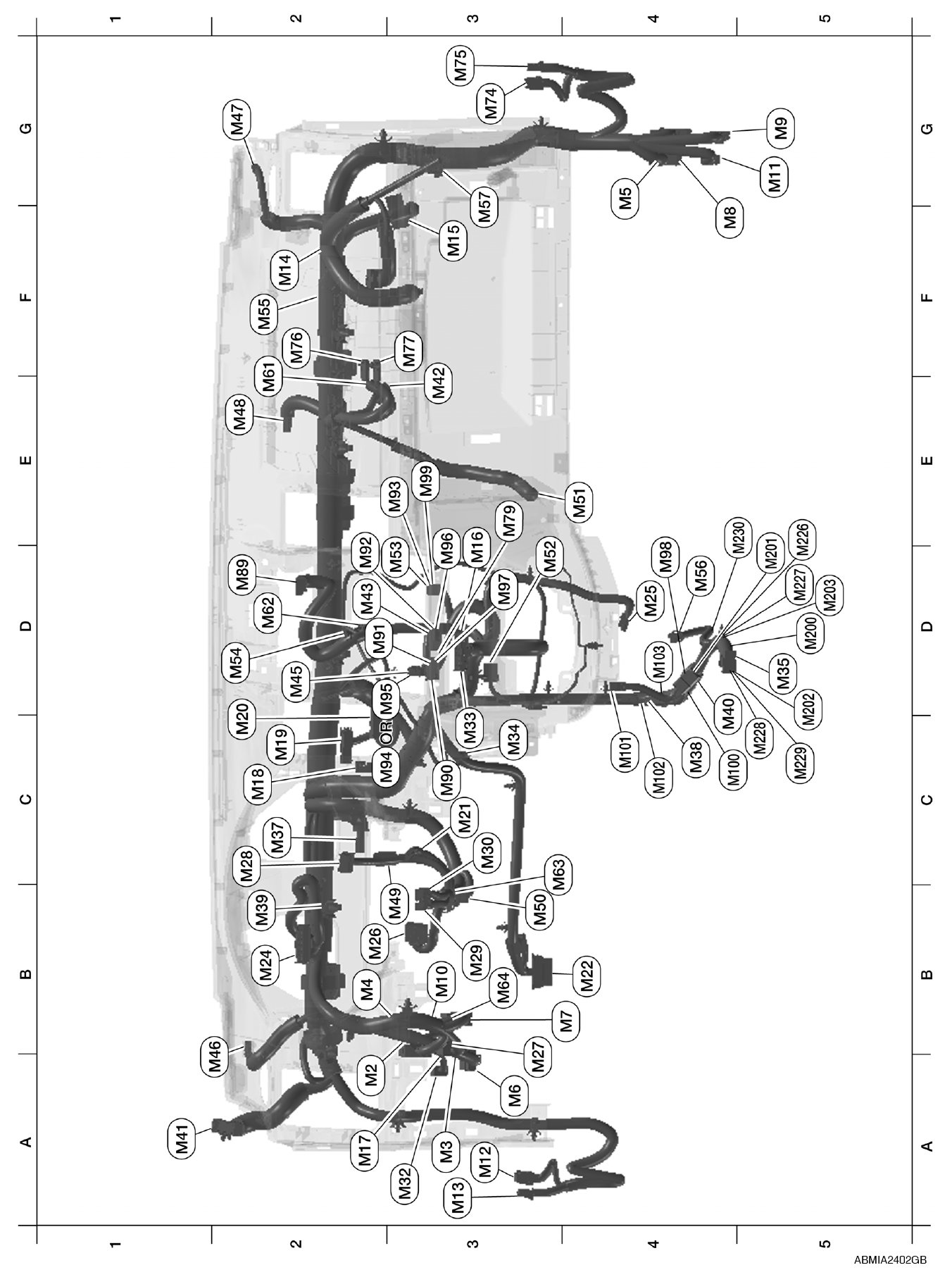

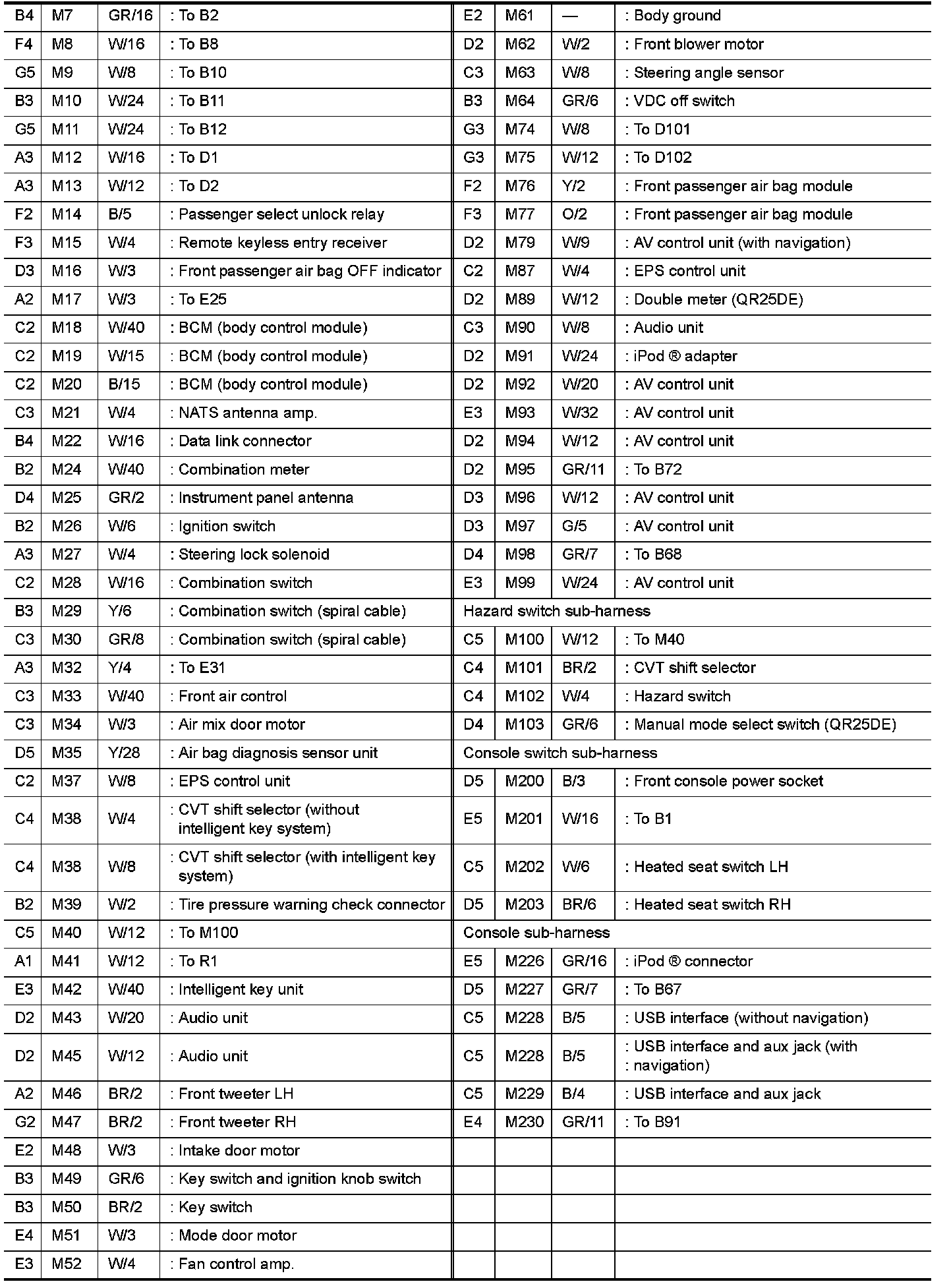

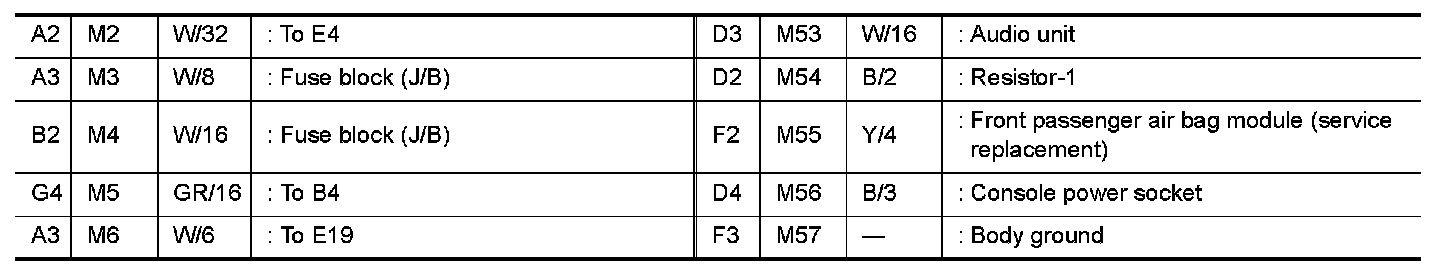

MAIN HARNESS

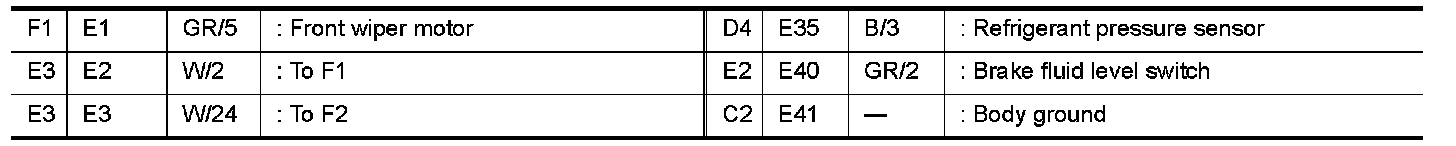

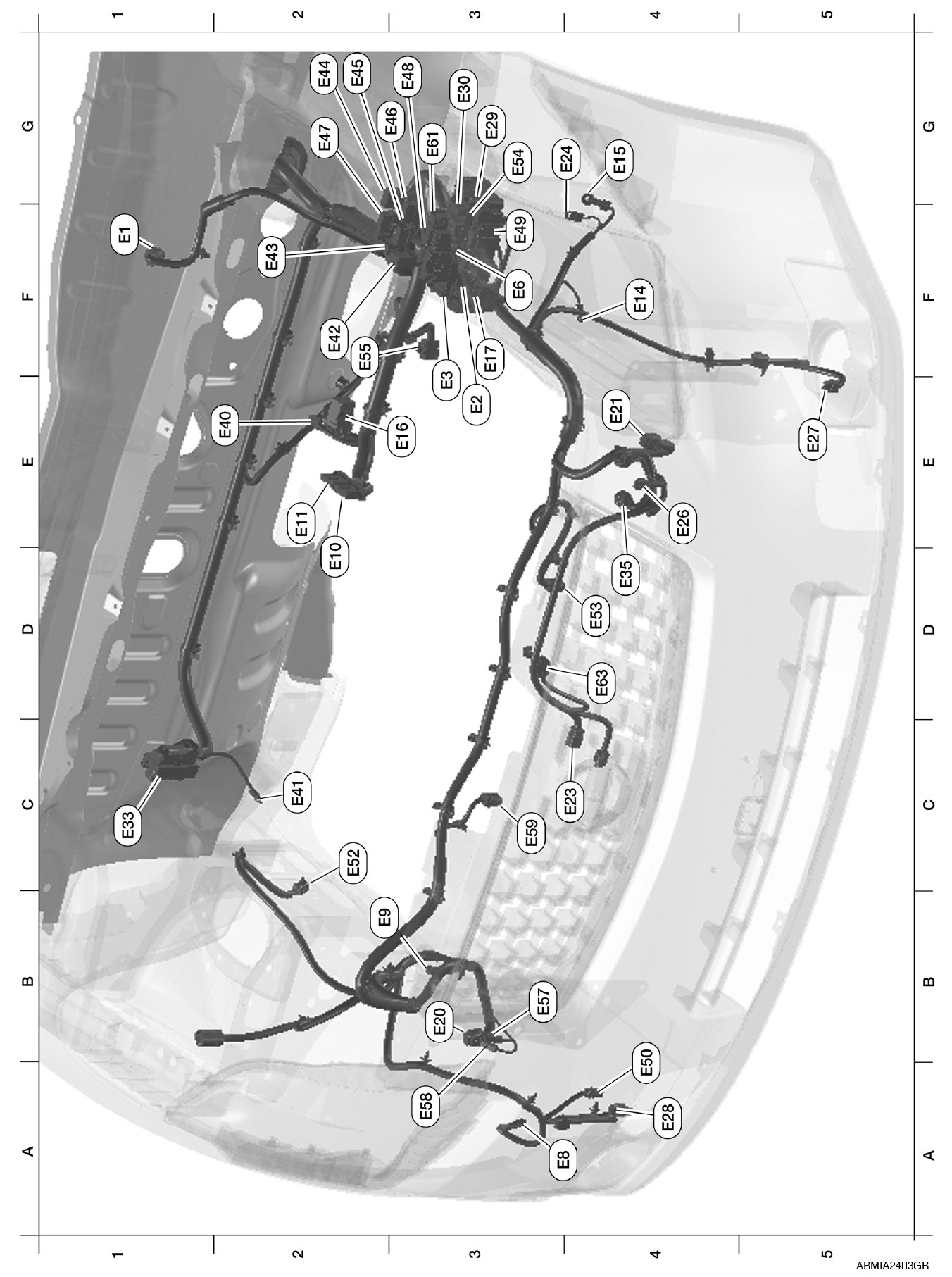

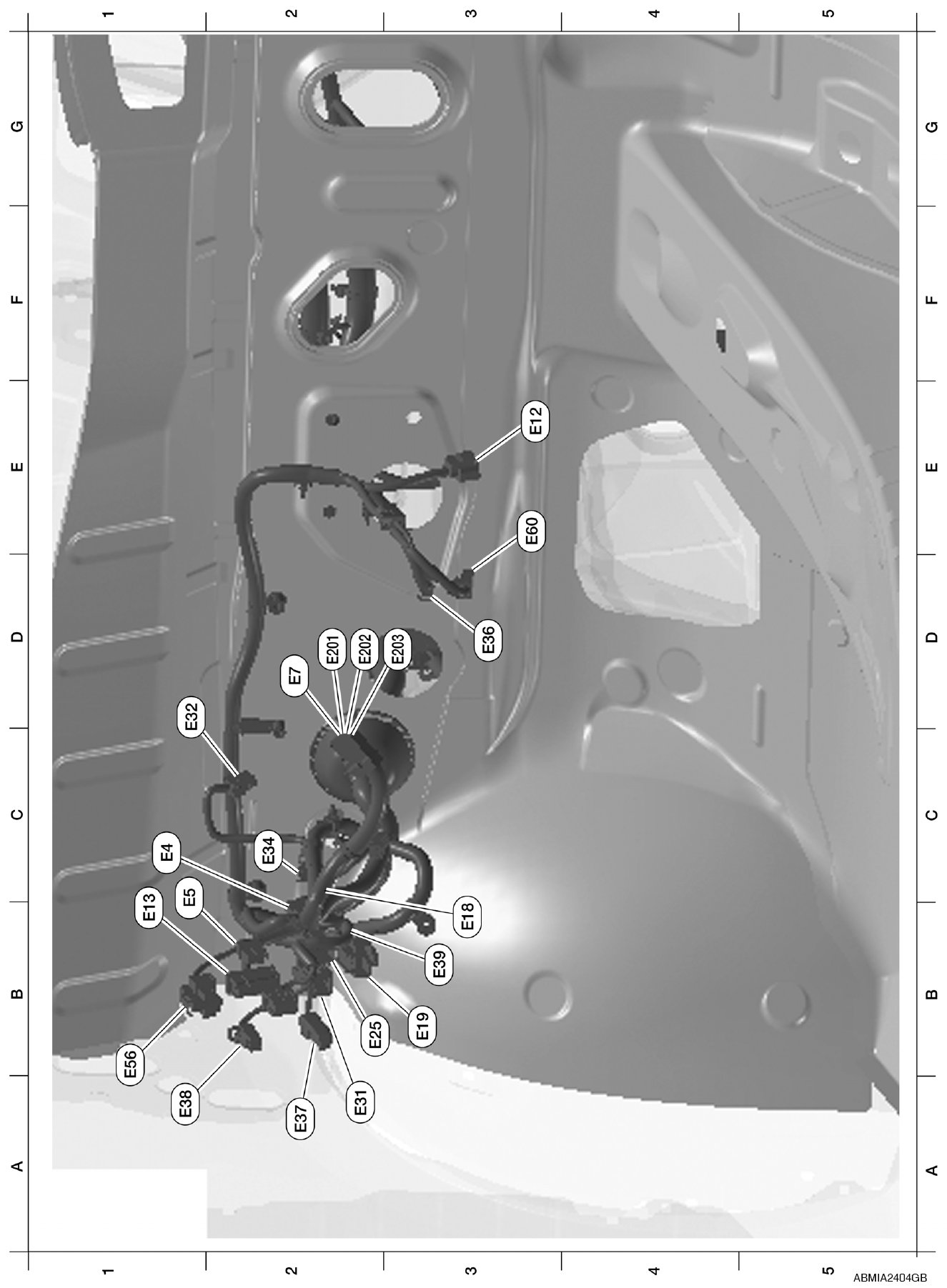

ENGINE ROOM HARNESS





Refer to "PASSENGER COMPARTMENT" for continuation of engine room harness.

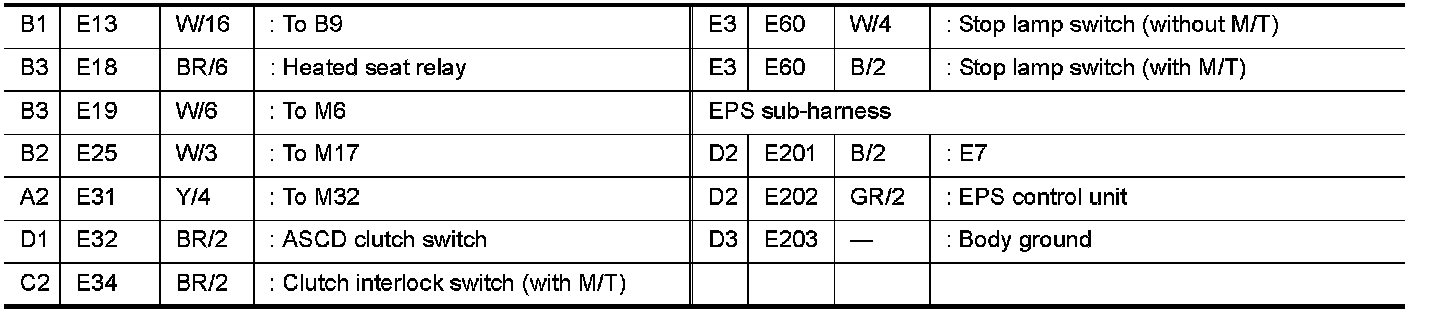

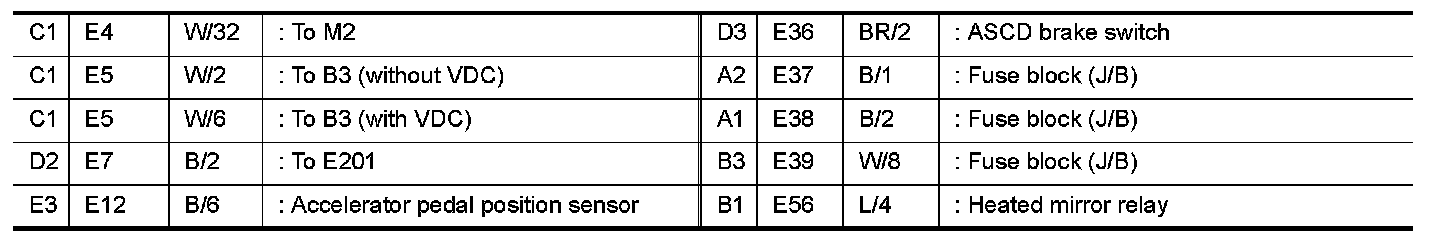

PASSENGER COMPARTMENT





Refer to "ENGINE ROOM HARNESS" for continuation of engine room harness.

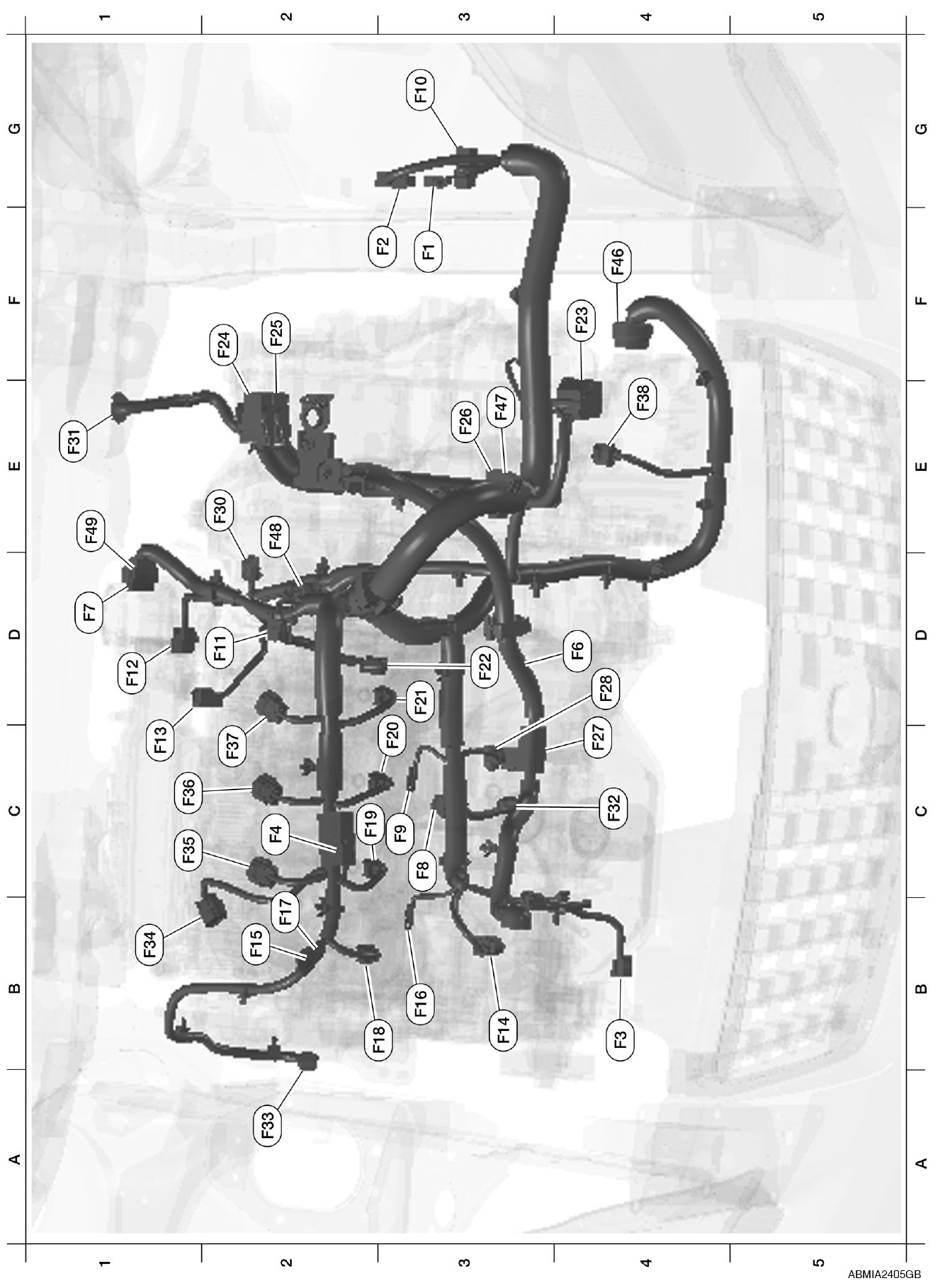

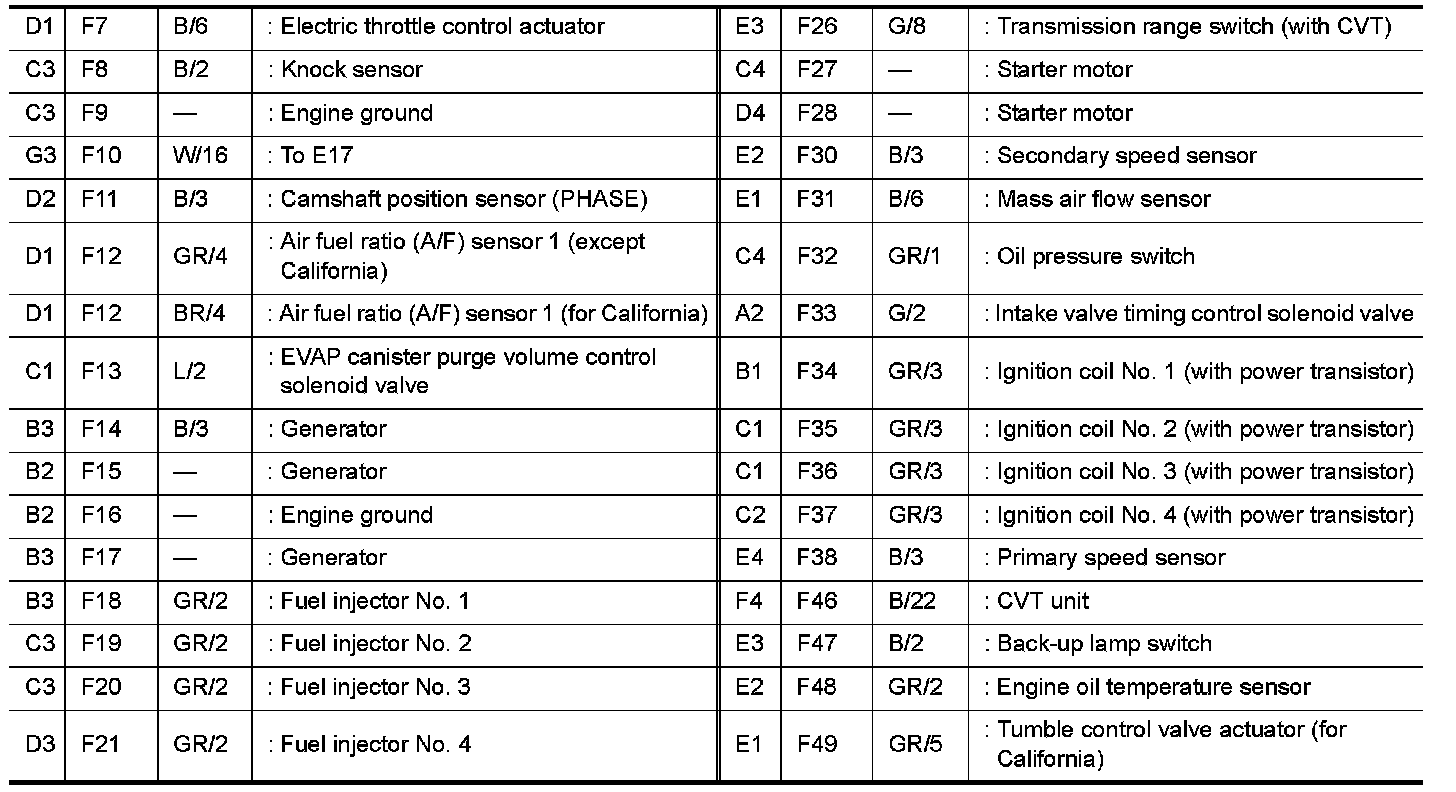

ENGINE CONTROL HARNESS (MR20DE)

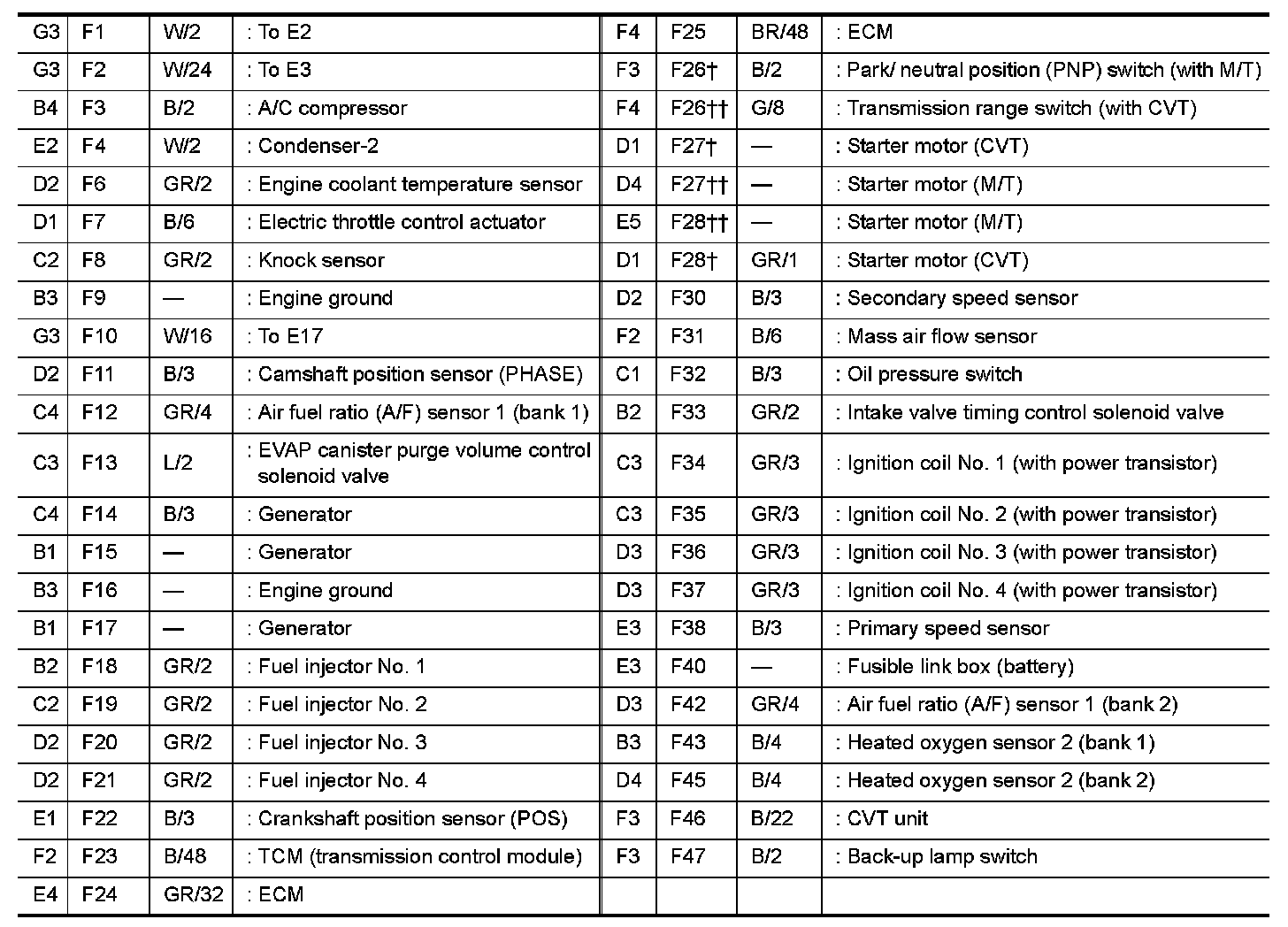

ENGINE CONTROL HARNESS (QR25DE)

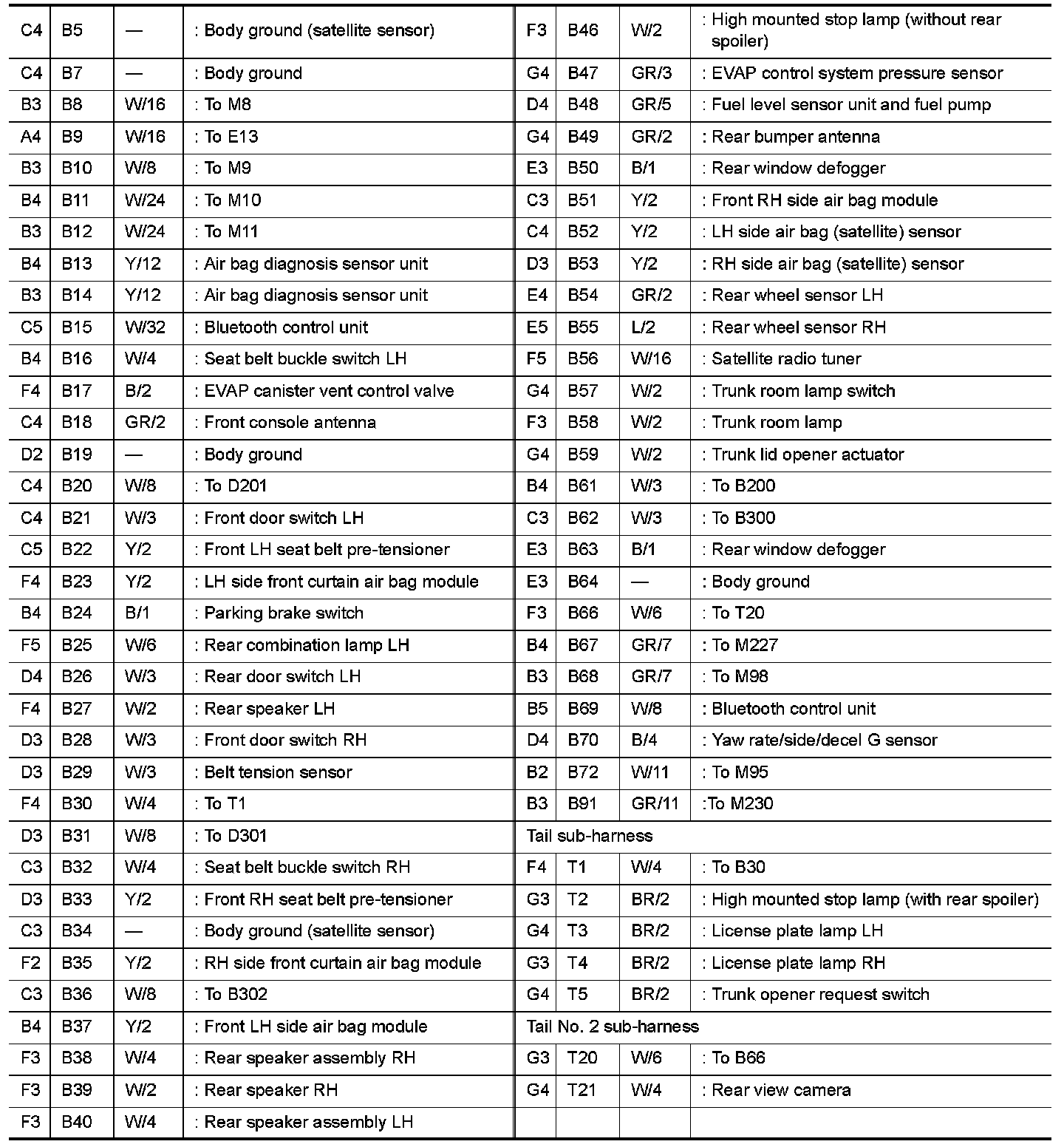

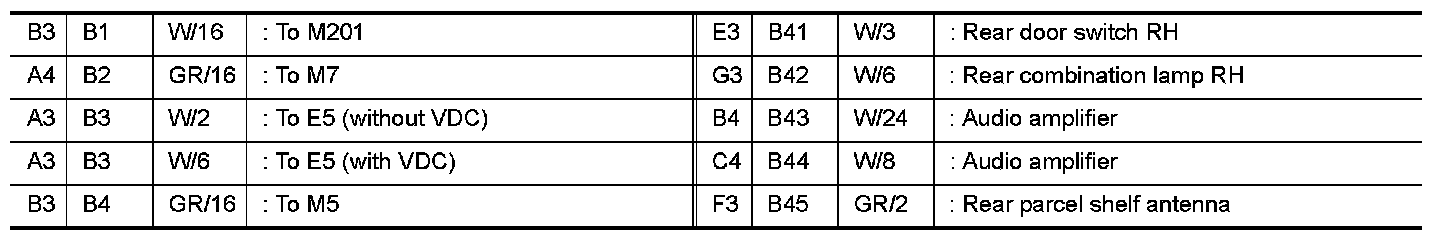

BODY HARNESS

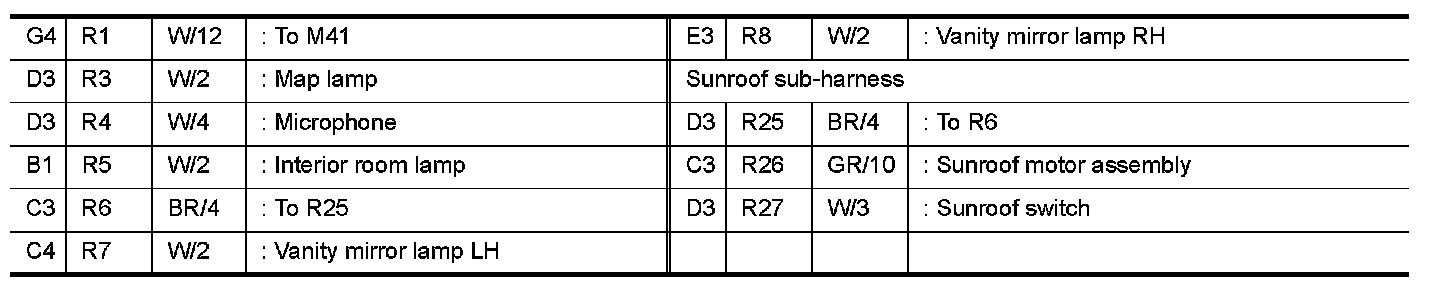

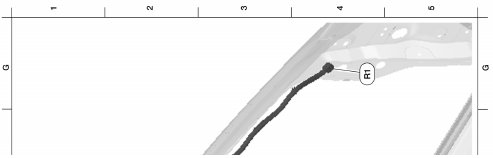

ROOM LAMP HARNESS

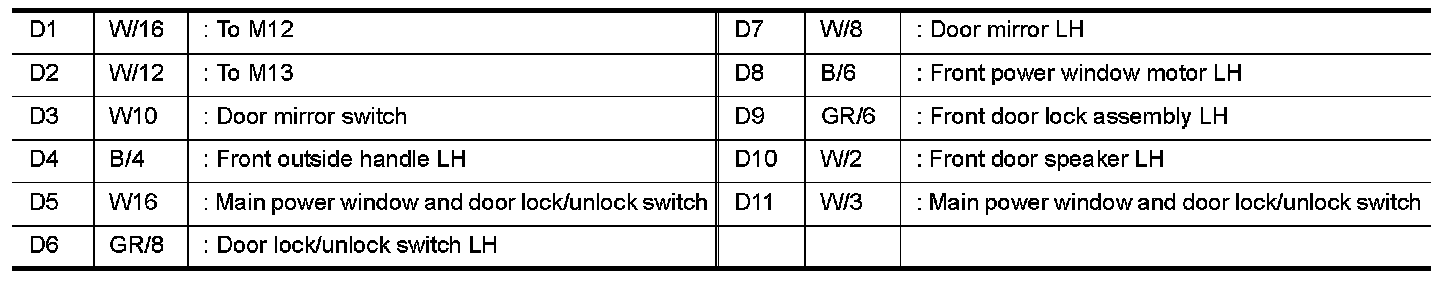

FRONT DOOR LH HARNESS

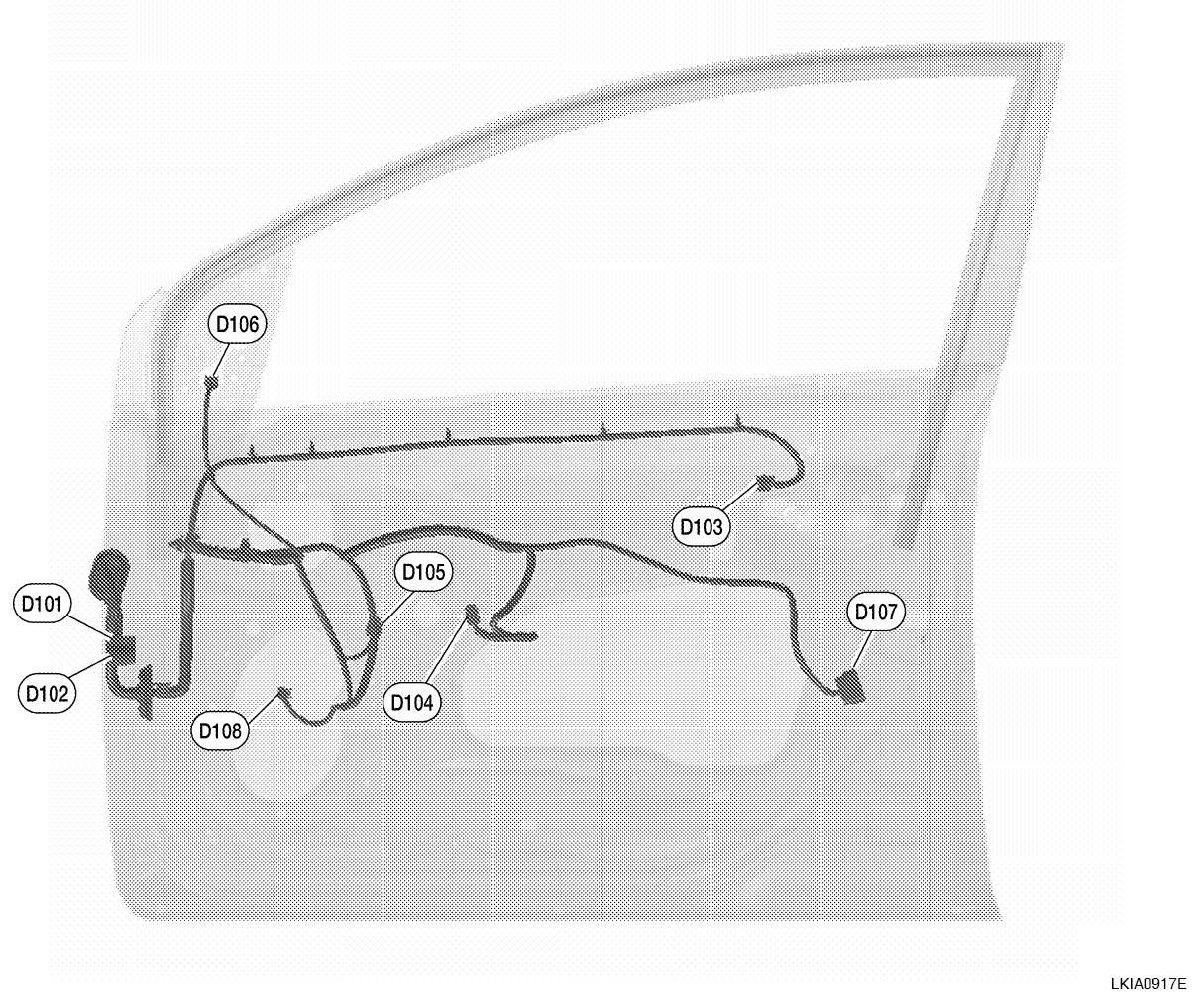

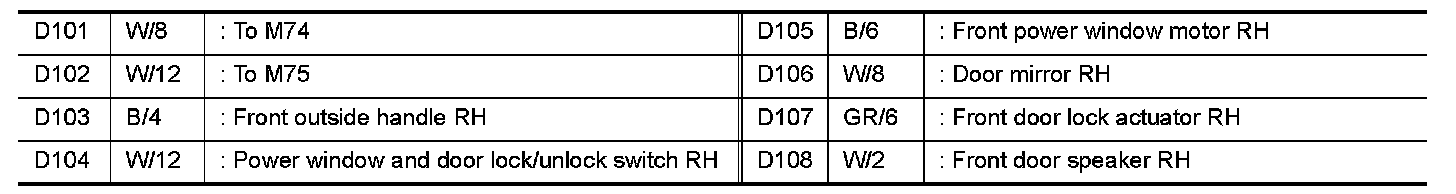

FRONT DOOR RH HARNESS











REAR DOOR LH HARNESS

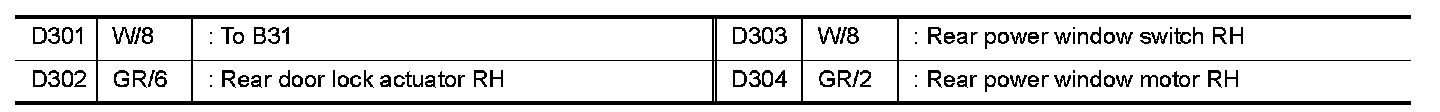

REAR DOOR RH HARNESS
