Cellular Phone
>>
Telephone Audio Without Navigation
Telephone Audio Without Navigation
TELEPHONE

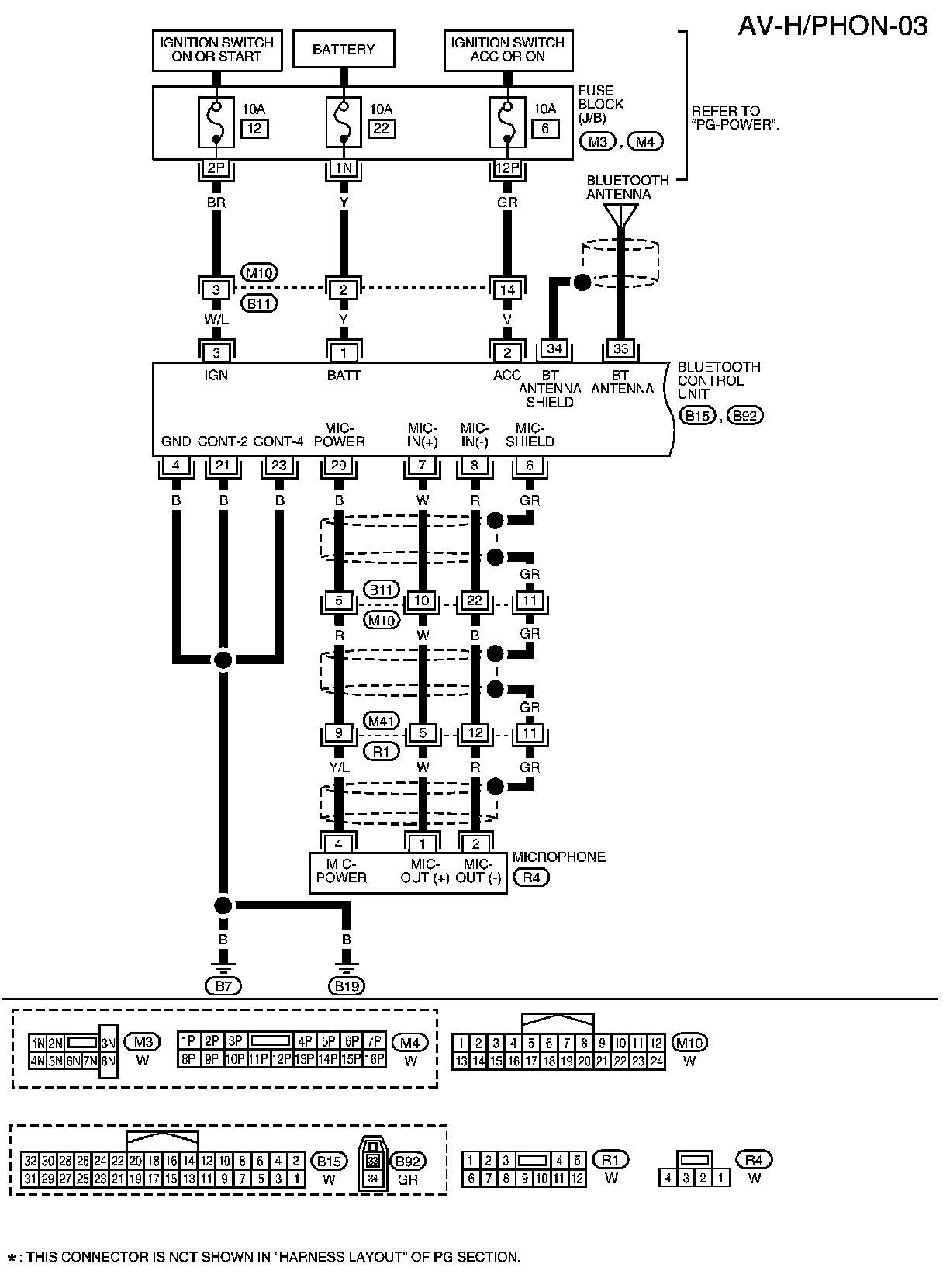

Wiring Diagram - H/PHON -
MID SYSTEM
PREMIUM SYSTEM
