Audio With Navigation





AUDIO

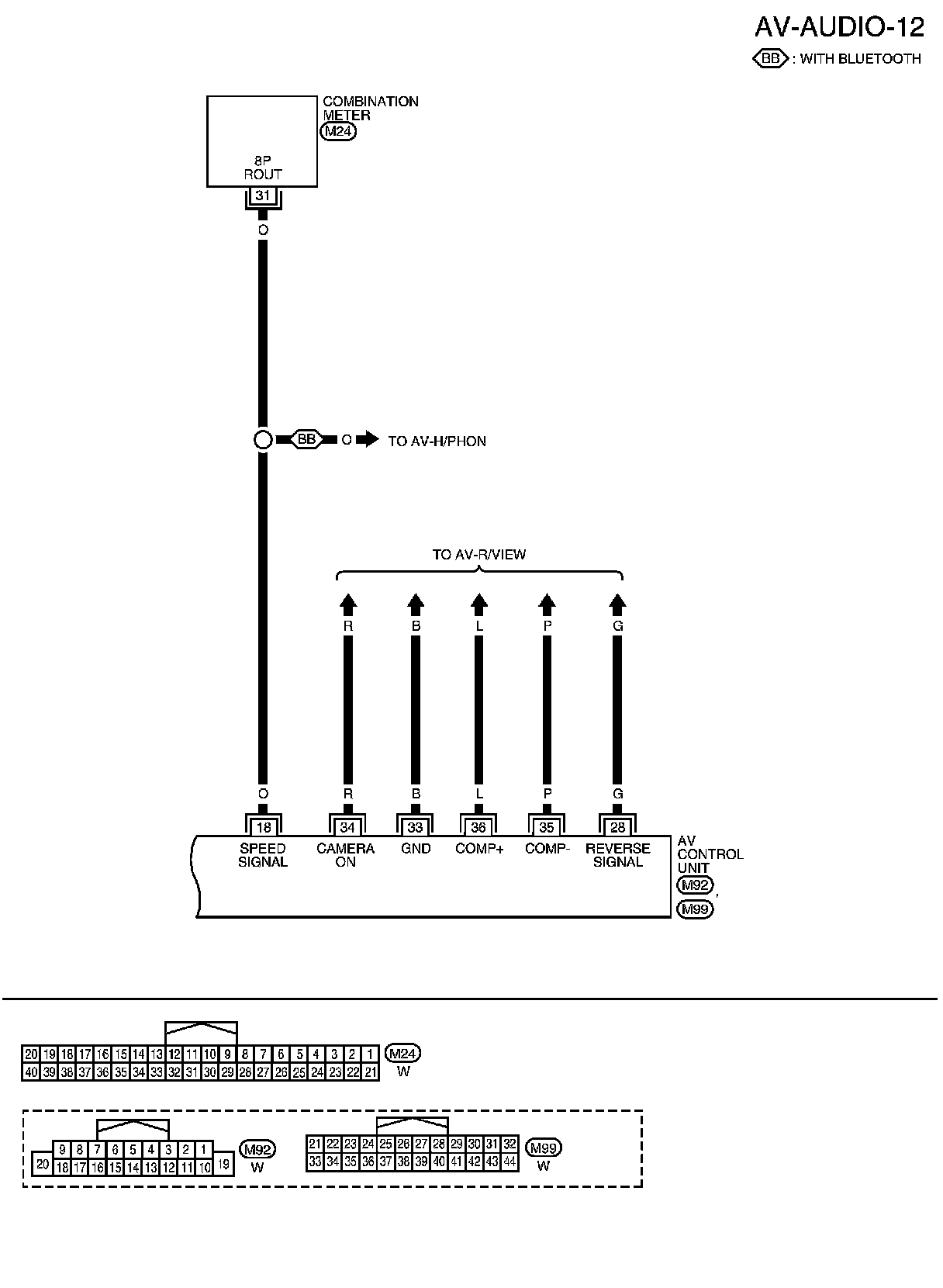

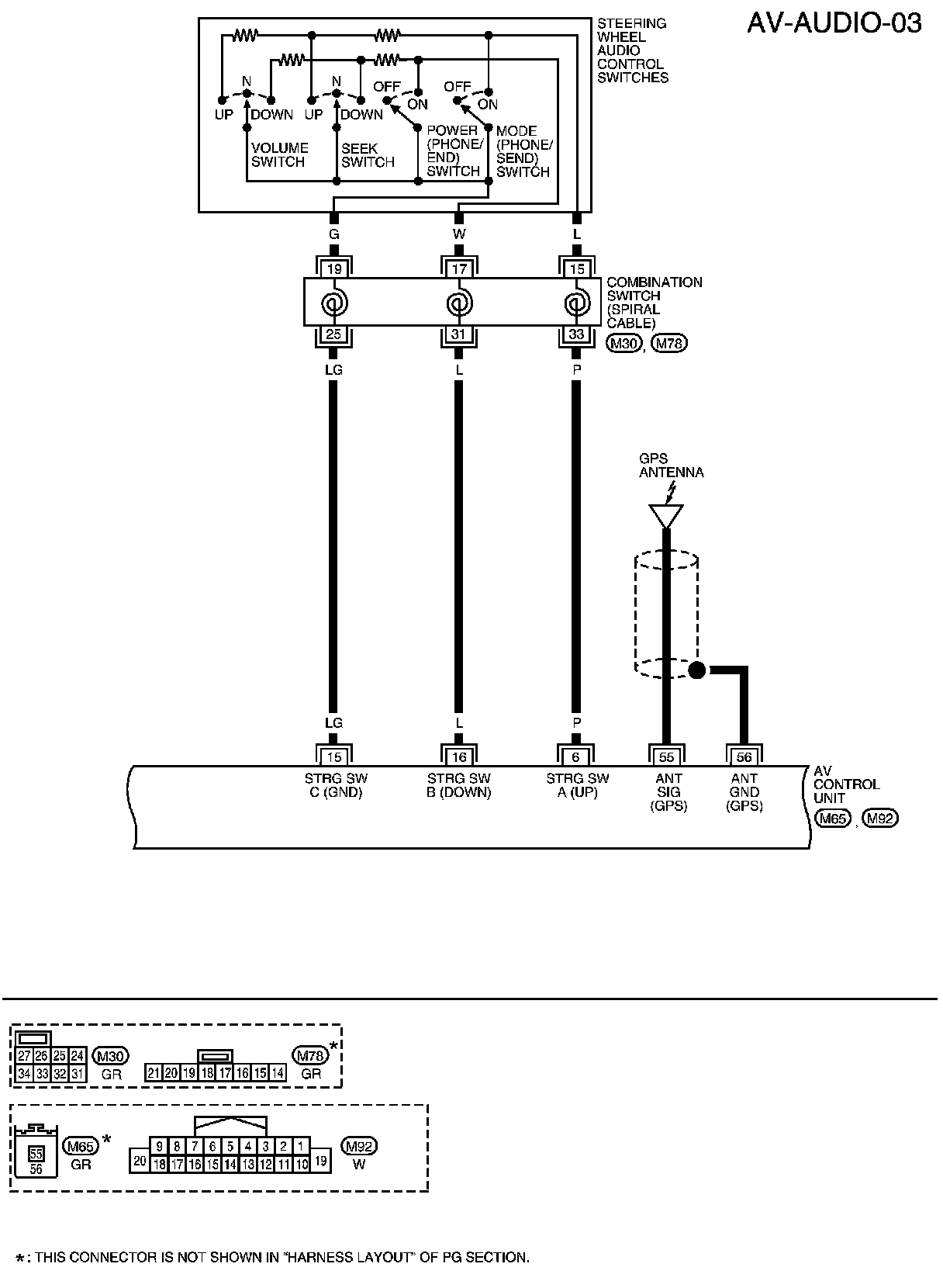

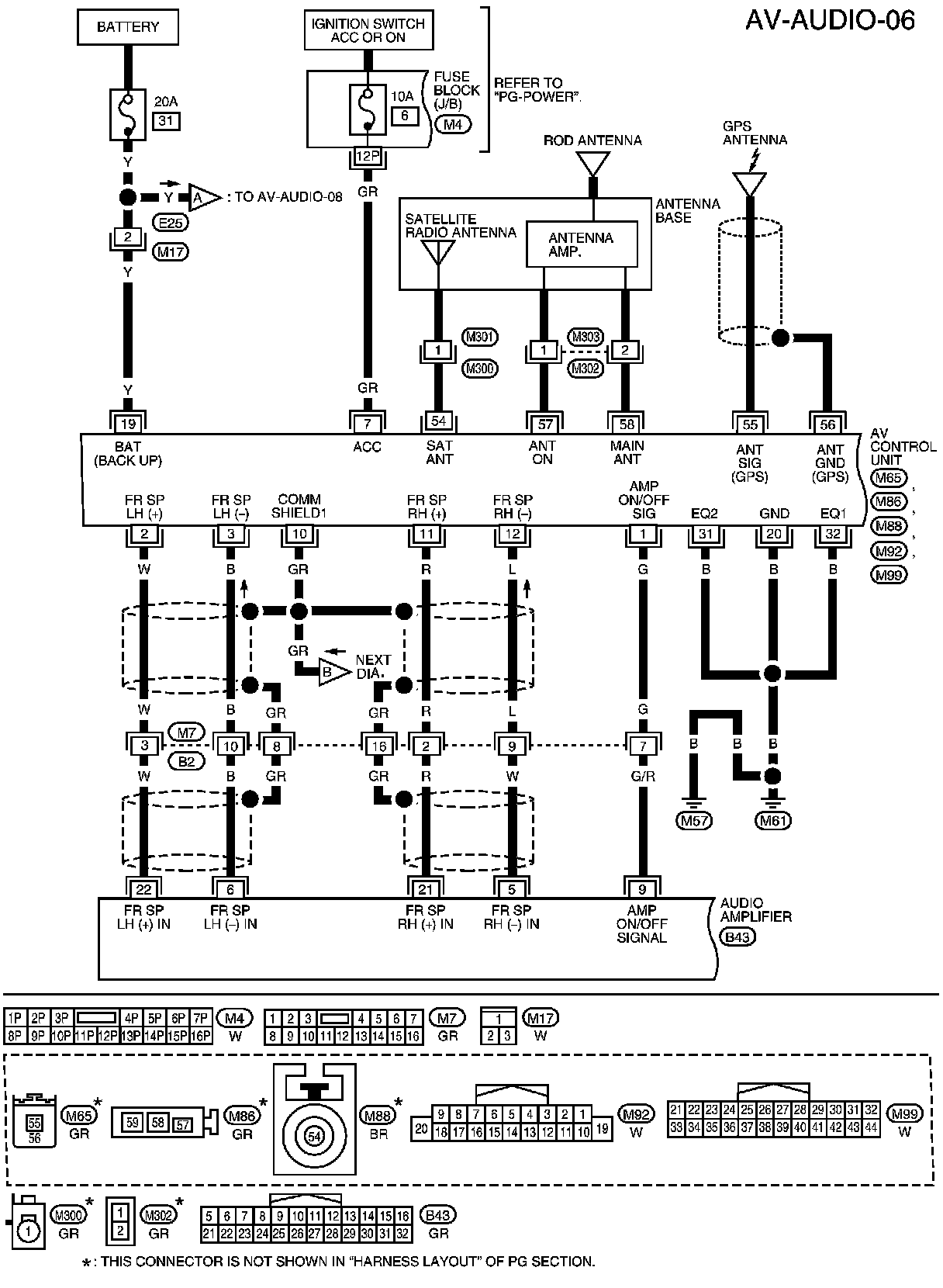

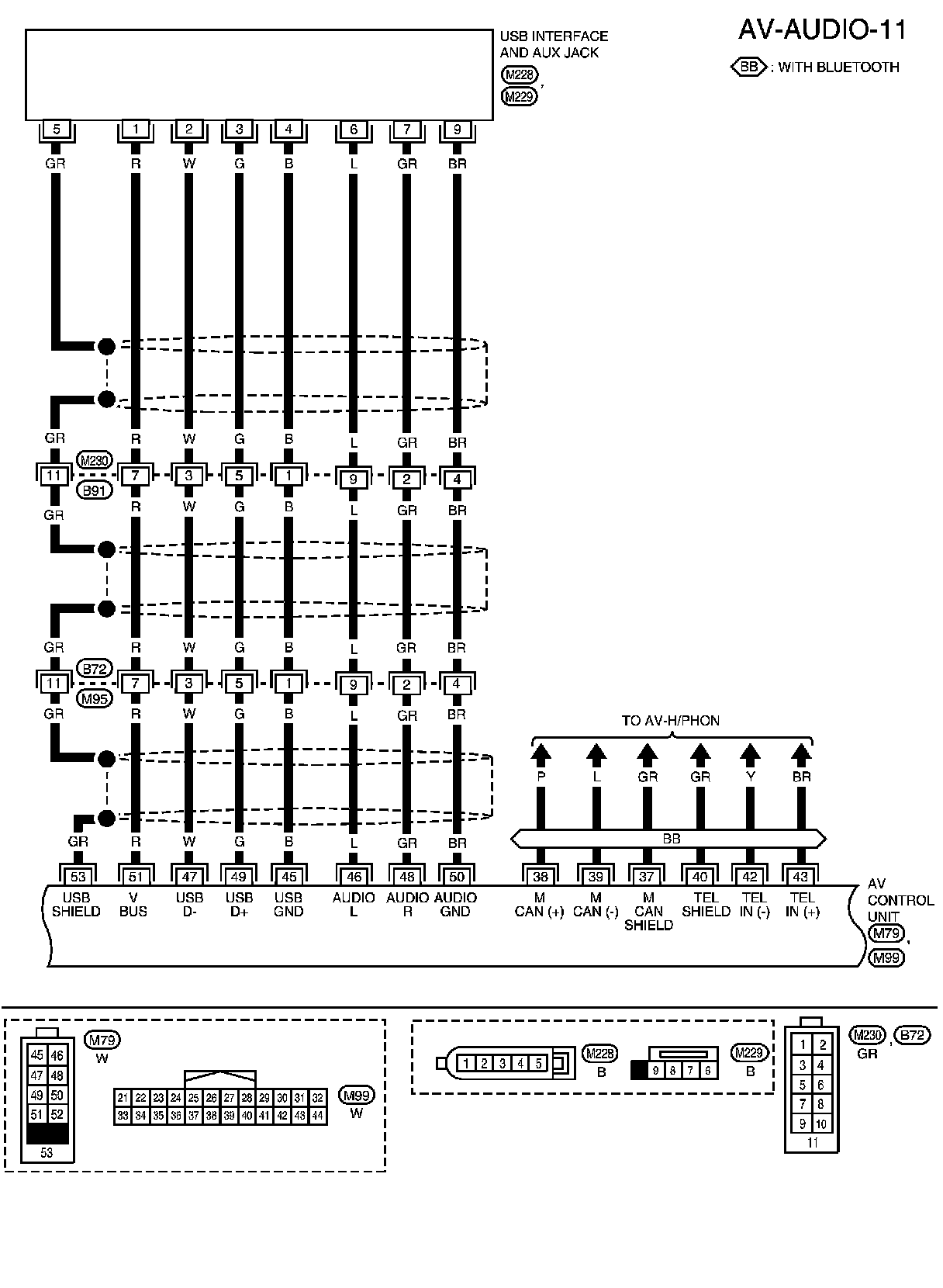

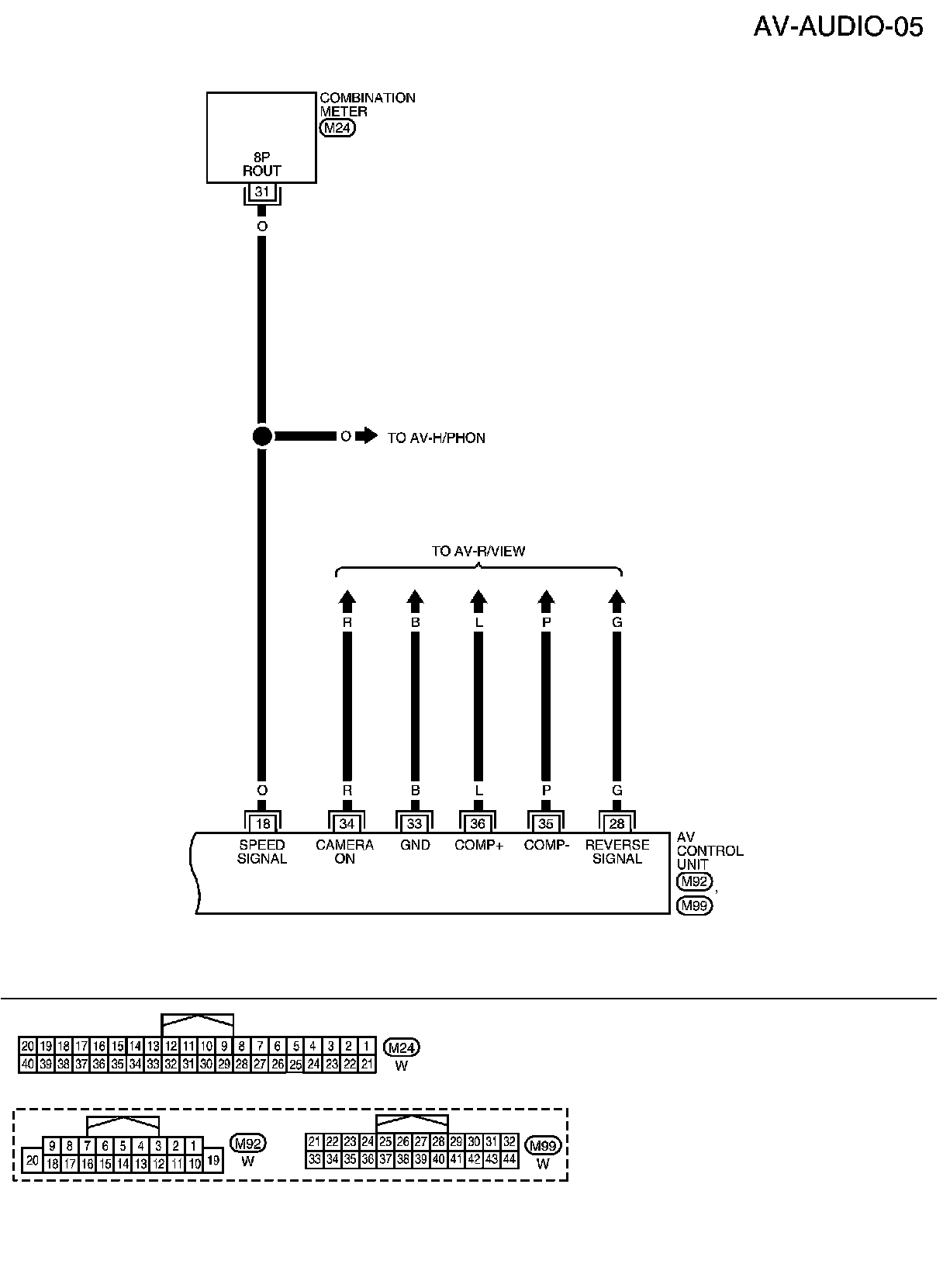

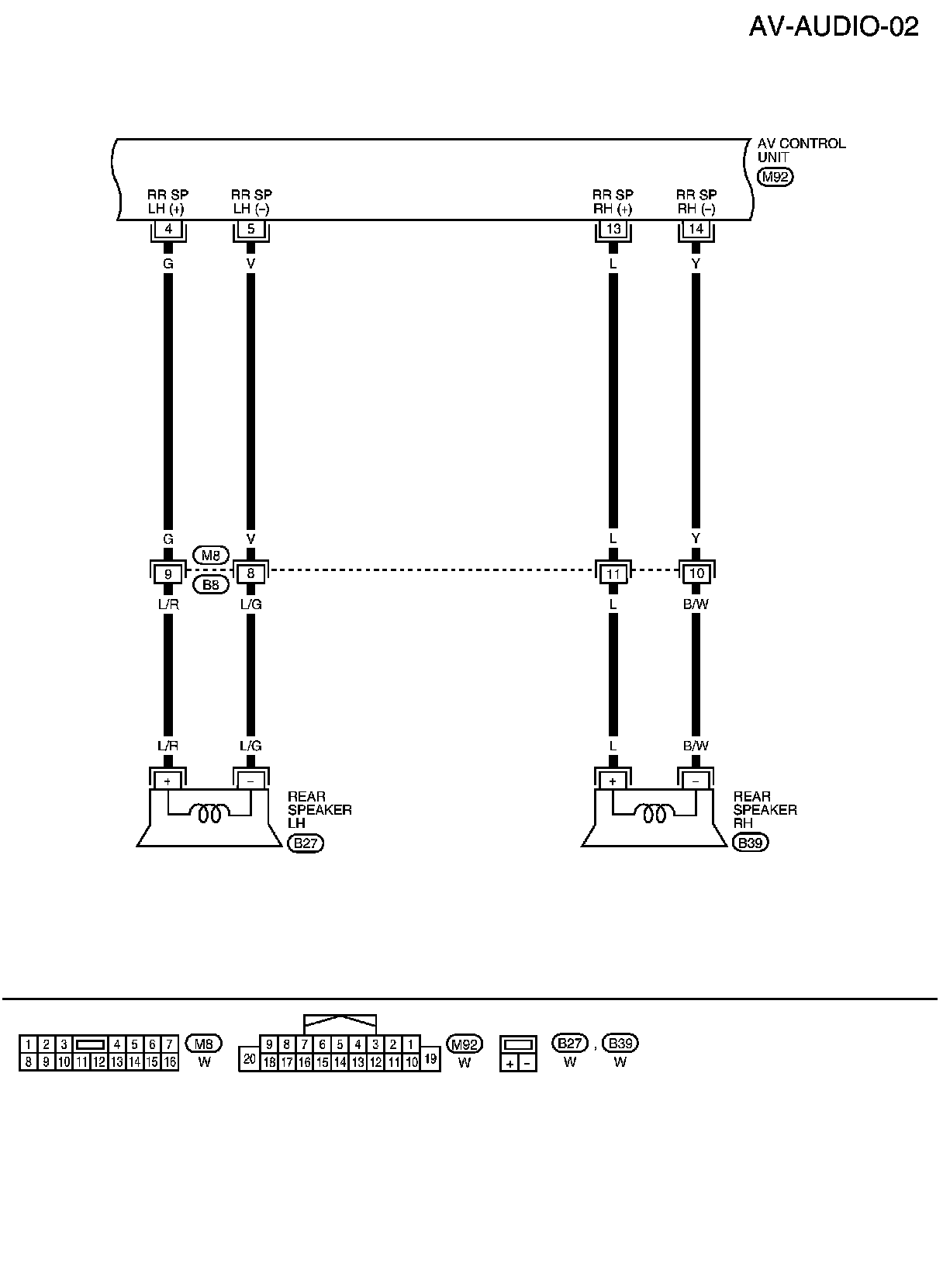

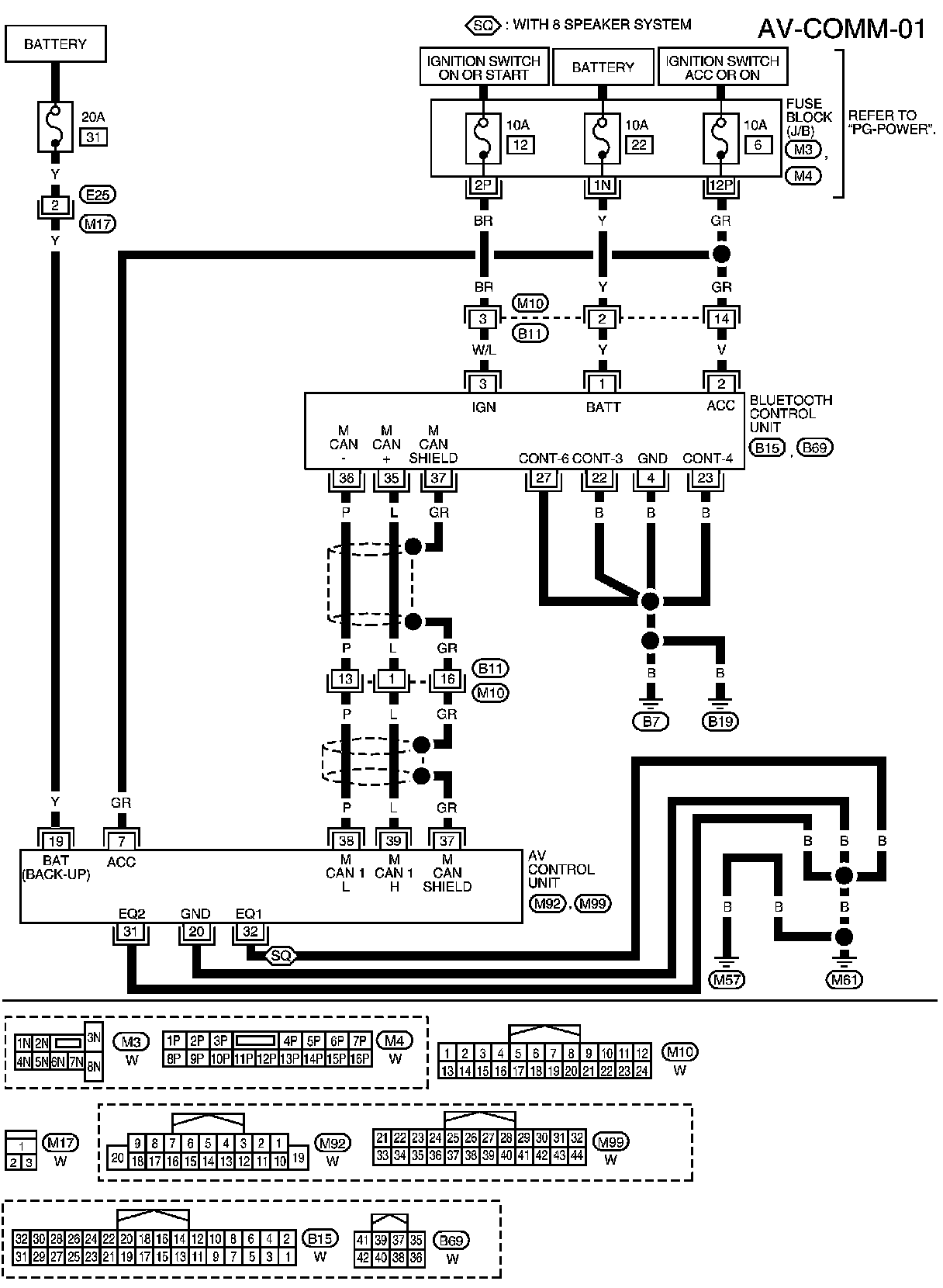

Wiring Diagram - AUDIO -


WITHOUT ROCKFORD FOSGATE

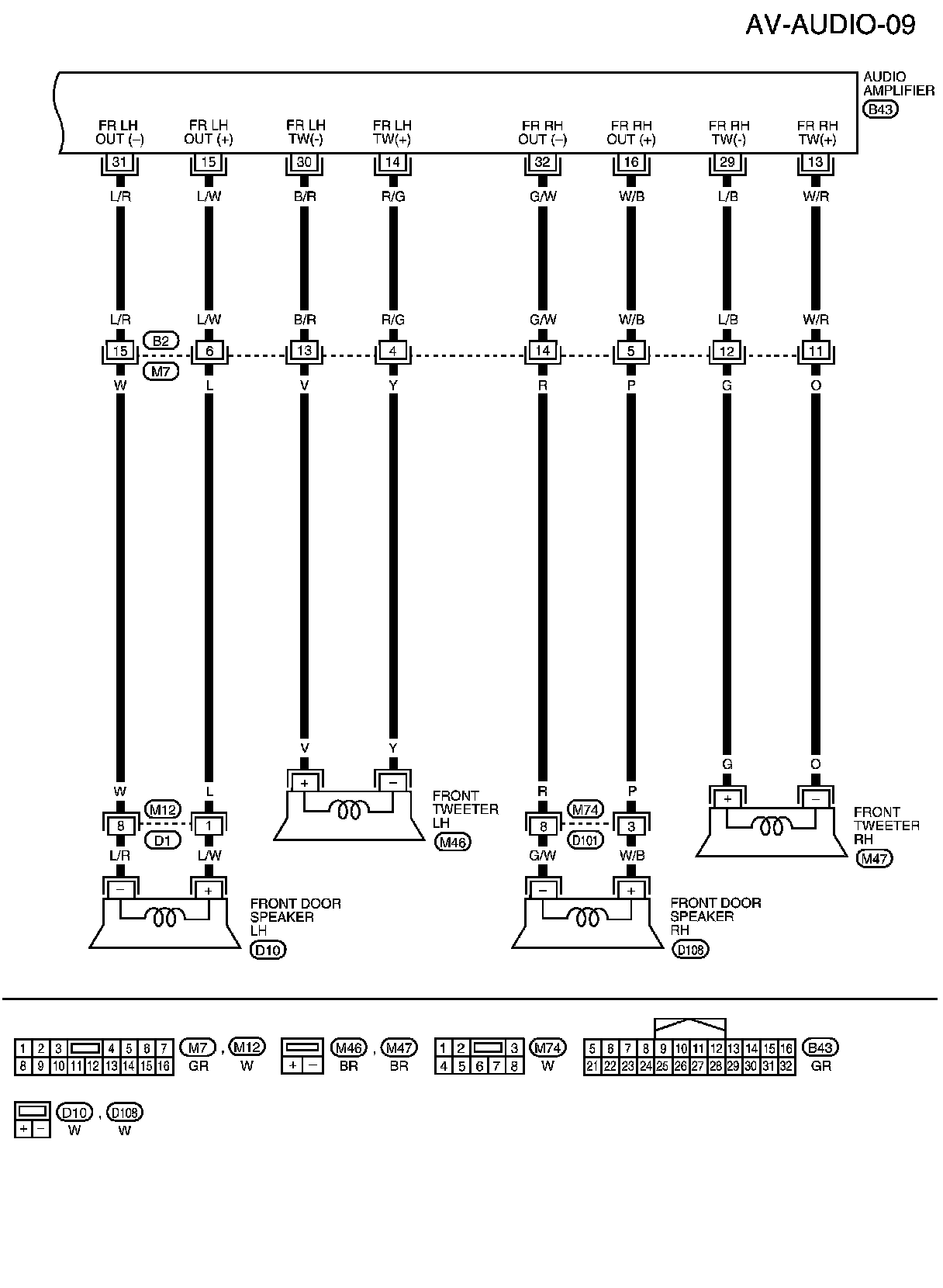

WITH ROCKFORD FOSGATE
