Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER


Removal and Installation

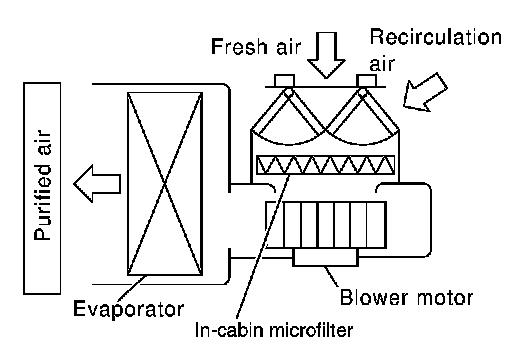

FUNCTION





Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into heater and cooling unit assembly.

REPLACEMENT TIMING
Replace the in-cabin microfilter as recommended.


REPLACEMENT PROCEDURES















1. Remove the filter cover.

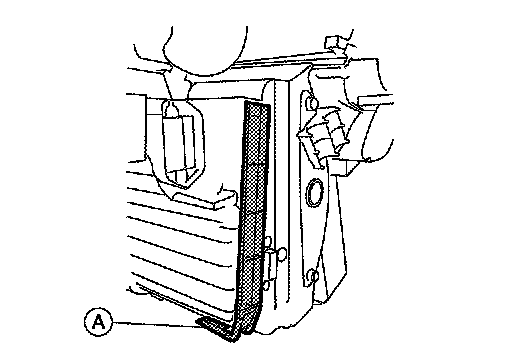

a. Release the filter cover tab (A) the pull the bottom of the filter cover out tilting it at an angle
b. Pull down the filter cover to disengage the hook at the top and remove the filter cover.

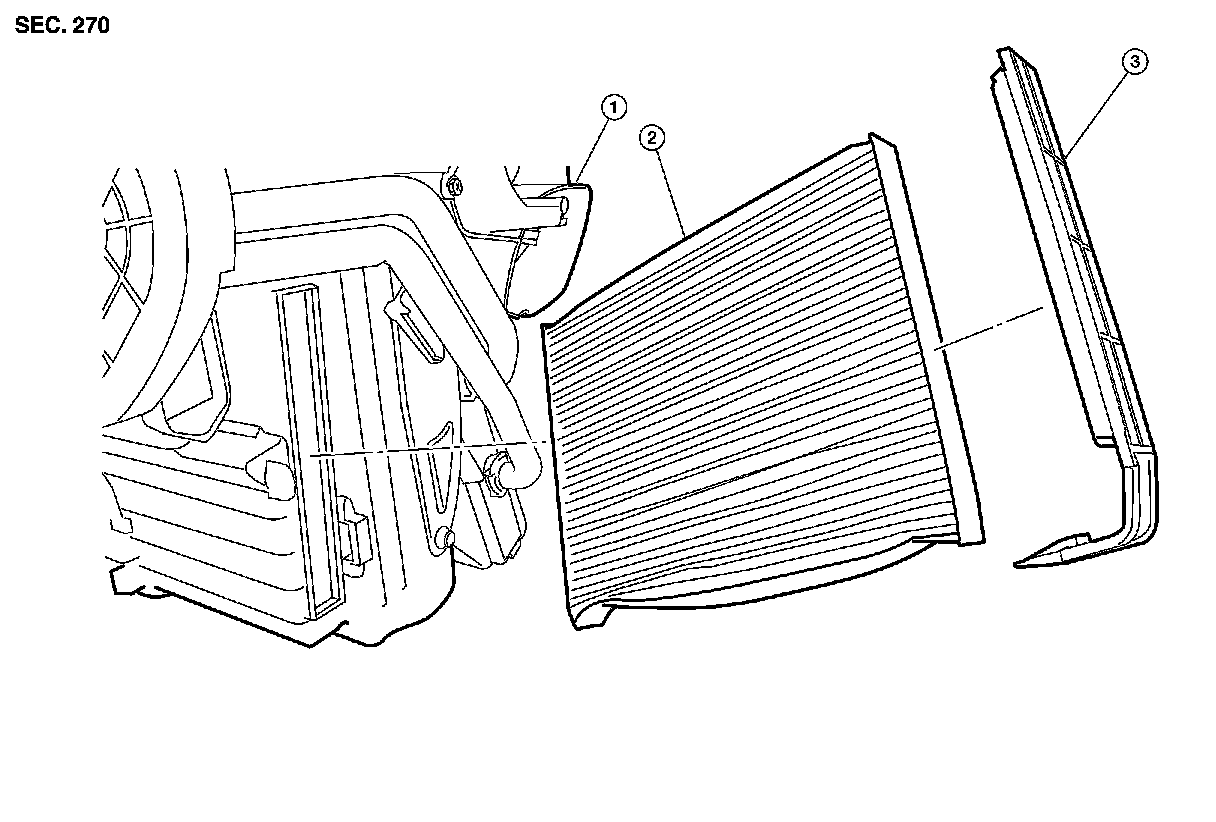

2. Remove the in-cabin microfilter.
3. Install the new in-cabin microfilter.

CAUTION:
- Insert the new filter with the "UP" arrow in the correct orientation.
- Insert the new filter with the "UP" arrow side of the filter facing the front of the vehicle.
4. Install the filter cover.
a. Insert the hook at the top of the filter cover into the heater and cooling unit case.





b. Swing the filter cover into the heater and cooling unit case until the filter cover tab (A) snaps securely on the heater and cooling unit case.

CAUTION:
Check the filter cover to make sure it is securely fastened to the heater and cooling unit case.
