Evaporator Core: Service and Repair

REFRIGERANT LINES


Removal and Installation for Evaporator












REMOVAL
1. Remove the expansion valve. Service and Repair.
2. Remove the instrument lower cover RH. Component Parts.
3. Remove the glove box. Removal And Installation.

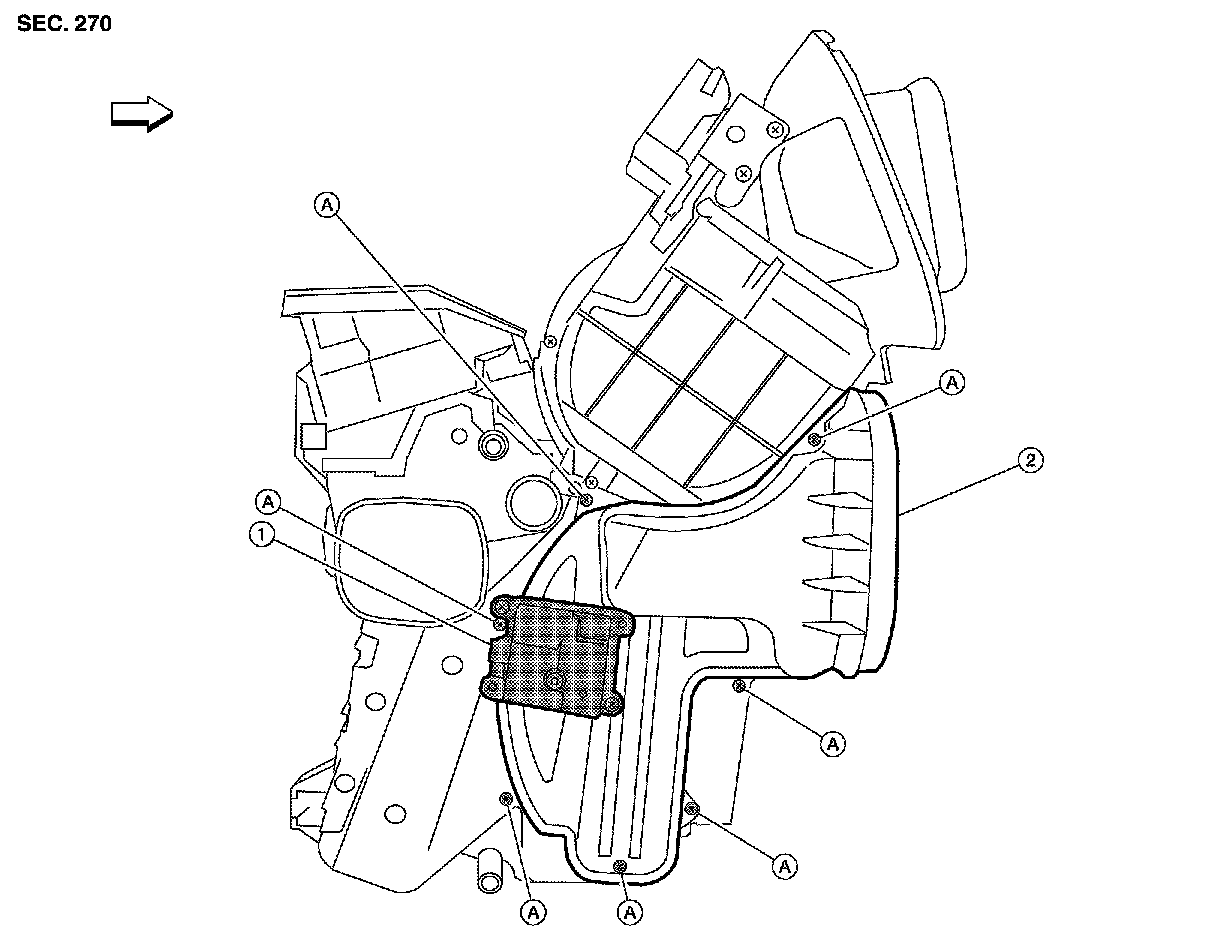

4. Remove the evaporator cover (1).
5. Remove the evaporator (2).

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- Replace the O-rings with new ones, then apply compressor oil to them when installing them.
