Parking, License Plate and Tail Lamps Do Not Illuminate

PARKING, LICENSE PLATE AND TAIL LAMPS


Parking, License Plate and Tail Lamps Do Not Illuminate

1.CHECK TAIL LAMP FUSE
Inspect tail lamp 10A fuses (No. 36 and 37, located in IPDM E/R).
OK or NG
OK - GO TO 2.
NG - Repair harness.
2.CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-III
1. Select "BCM" on CONSULT-III. Select "HEAD LAMP" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR". Make sure "LIGHT SW 1ST" turns ON-OFF linked with operation of combination switch (lighting and turn signal switch).






Without CONSULT-III
Combination Switch Inspection .
OK or NG
OK - GO TO 3.
NG - Check combination switch (lighting and turn signal switch). Combination Switch Inspection .
3.ACTIVE TEST
With CONSULT-III
1. Select "IPDM E/R" on CONSULT-III, and select "ACTIVE TEST".
2. Select "TAIL LAMP" on "SELECT TEST ITEM" screen.
3. Touch "ON" on "ACTIVE TEST" screen.
4. Make sure parking, license plate and tail lamps operate.






Without CONSULT-III
1. Start auto active test. Auto Active Test .
2. Make sure parking, license plate and tail lamps operate.






OK or NG
OK - GO TO 4.
NG - Replace the IPDM E/R if the parking, license and tail lamps do not start operating after resetting connector. Service and Repair .
4.CHECK IPDM E/R
1. Select "IPDM E/R" on CONSULT-III, and select "DATA MONITOR".

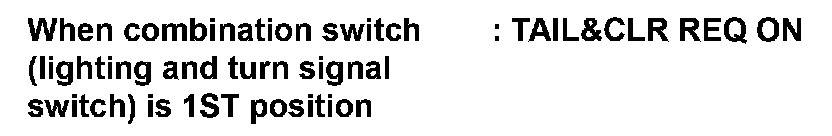

2. Make sure "TAIL&CLR REQ" turns ON when combination switch (lighting and turn signal switch) is in 1ST position.






OK or NG
OK - Replace IPDM E/R. Service and Repair .
NG - Replace BCM. Service and Repair.
