Restraints - Side Air Bag Service Parts

Classification:
RS12-005

Reference
NTB12-102

Date:
December 4, 2012

2007-2012 SENTRA;
SIDE AIR BAG SERVICE PARTS

APPLIED VEHICLES:
2007-2012 Sentra (B16)

SERVICE INFORMATION

If you confirm there is a need to replace the driver and/or front passenger seat side air bag module in an Applied Vehicle for any reason:

^ Do not replace the entire seatback assembly if only the side air bag needs to be replaced. The side air bag module is now available as a separate service part.

^ Refer to the SE section of the applicable Electronic Service Manual (ESM) for seatback disassembly and assembly instructions.

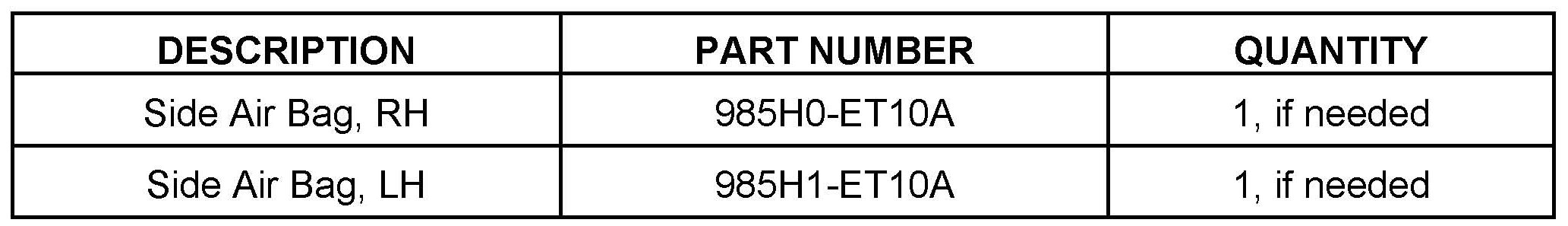

PARTS INFORMATION





Disclaimer
