Harmonic Balancer - Crankshaft Pulley

Crankshaft Pulley

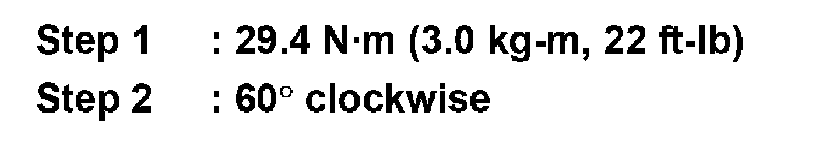

Tighten crankshaft pulley bolt in two steps.

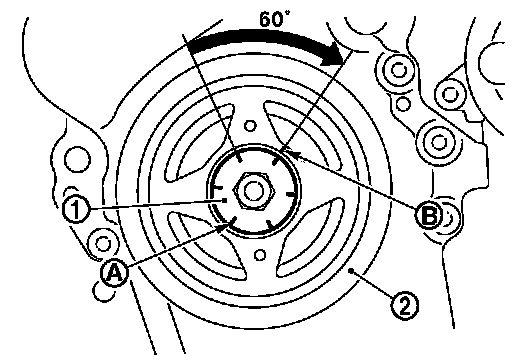

For angle tightening, put a paint mark (B) on crankshaft pulley (2), matching with any one of six easy to recognize angle marks (A) on crankshaft pulley bolt (1) flange.

Turn 60 degrees clockwise (angle tightening).

Check the tightening angle with movement of one angle mark.
