Home >> Nissan-Datsun >> 2011 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams

Electrical Diagrams





STARTING SYSTEM


Wiring Diagram - START -

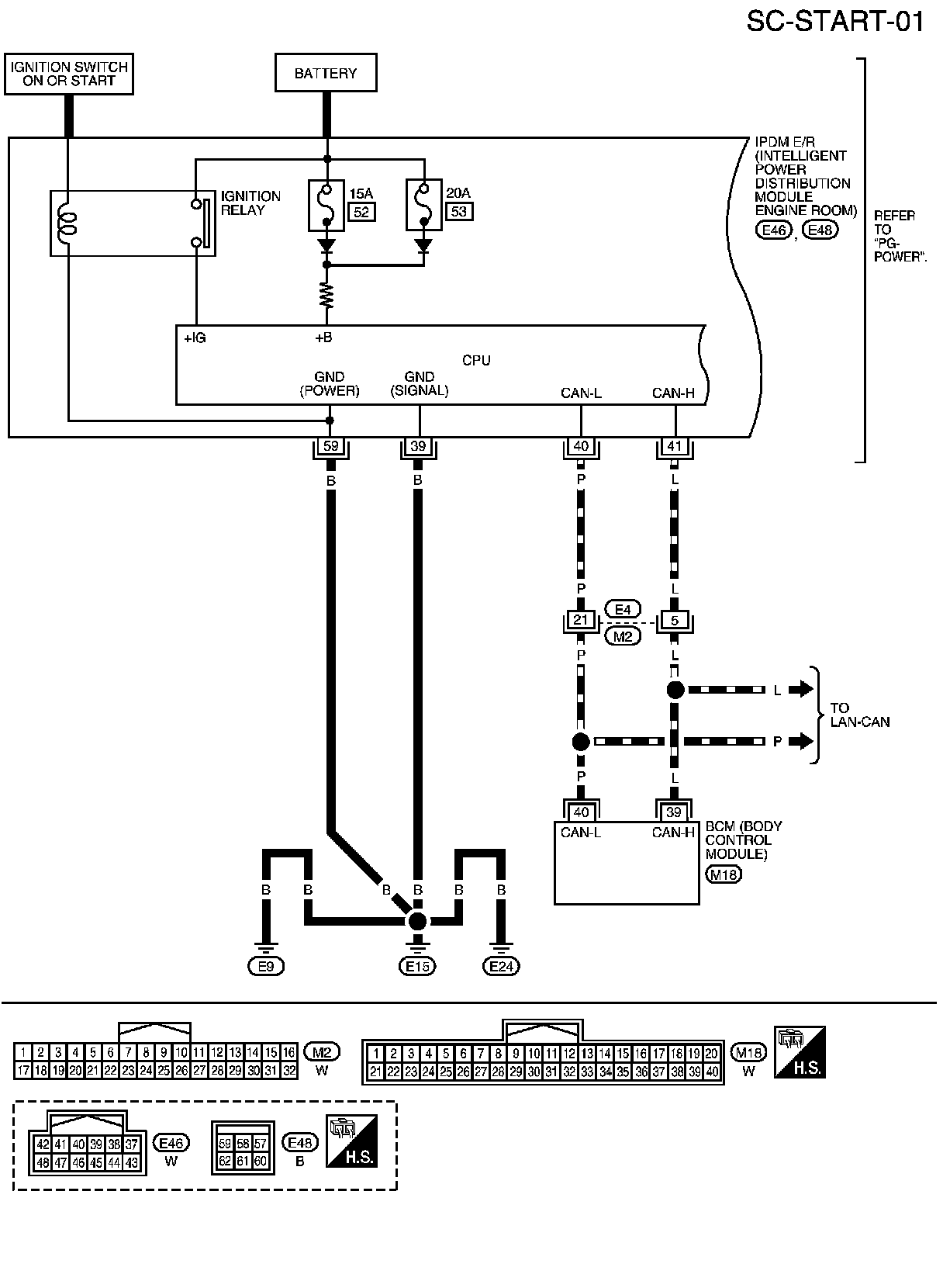

M/T Models - MR20DE

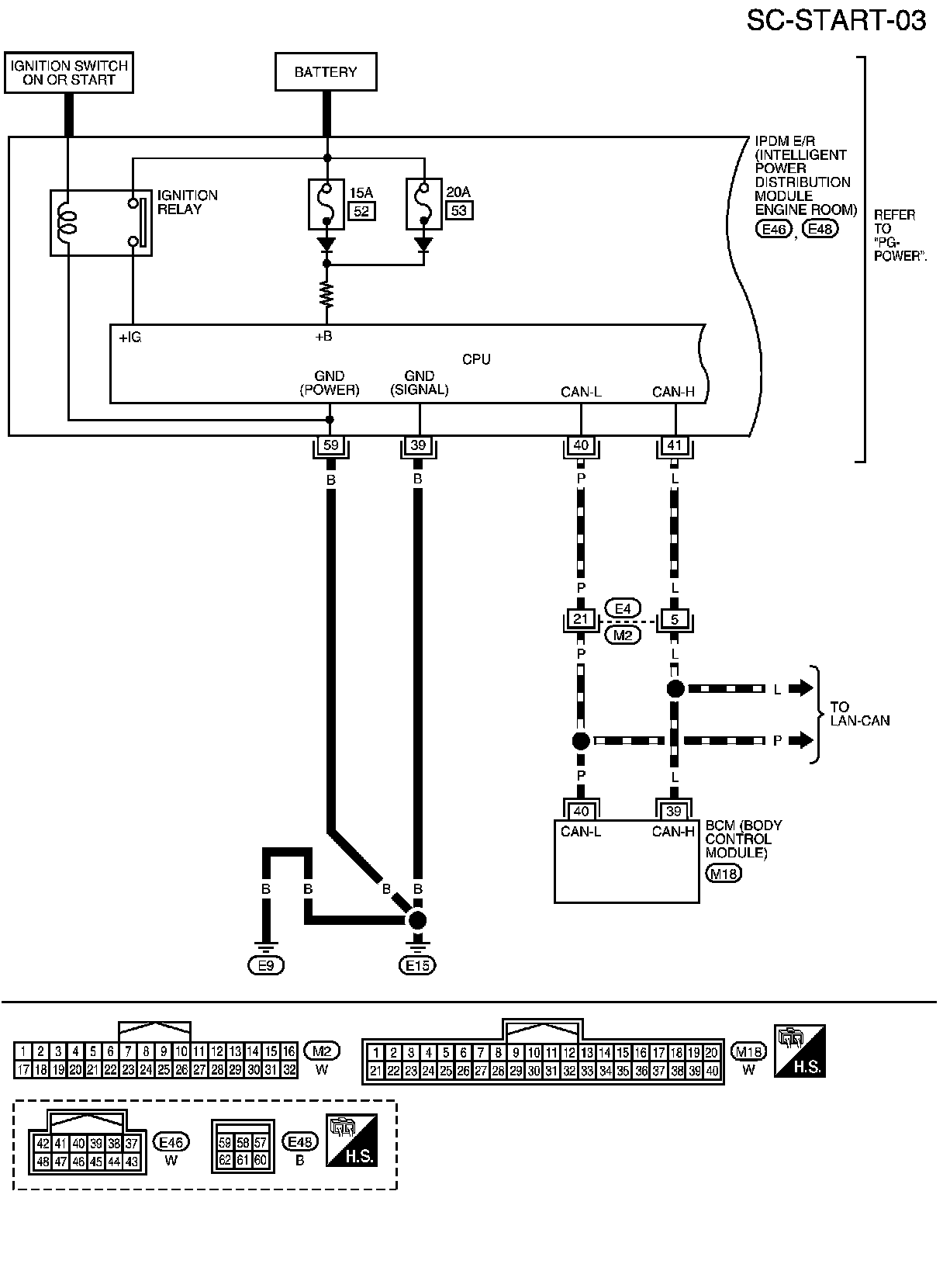

M/T Models - QR25DE

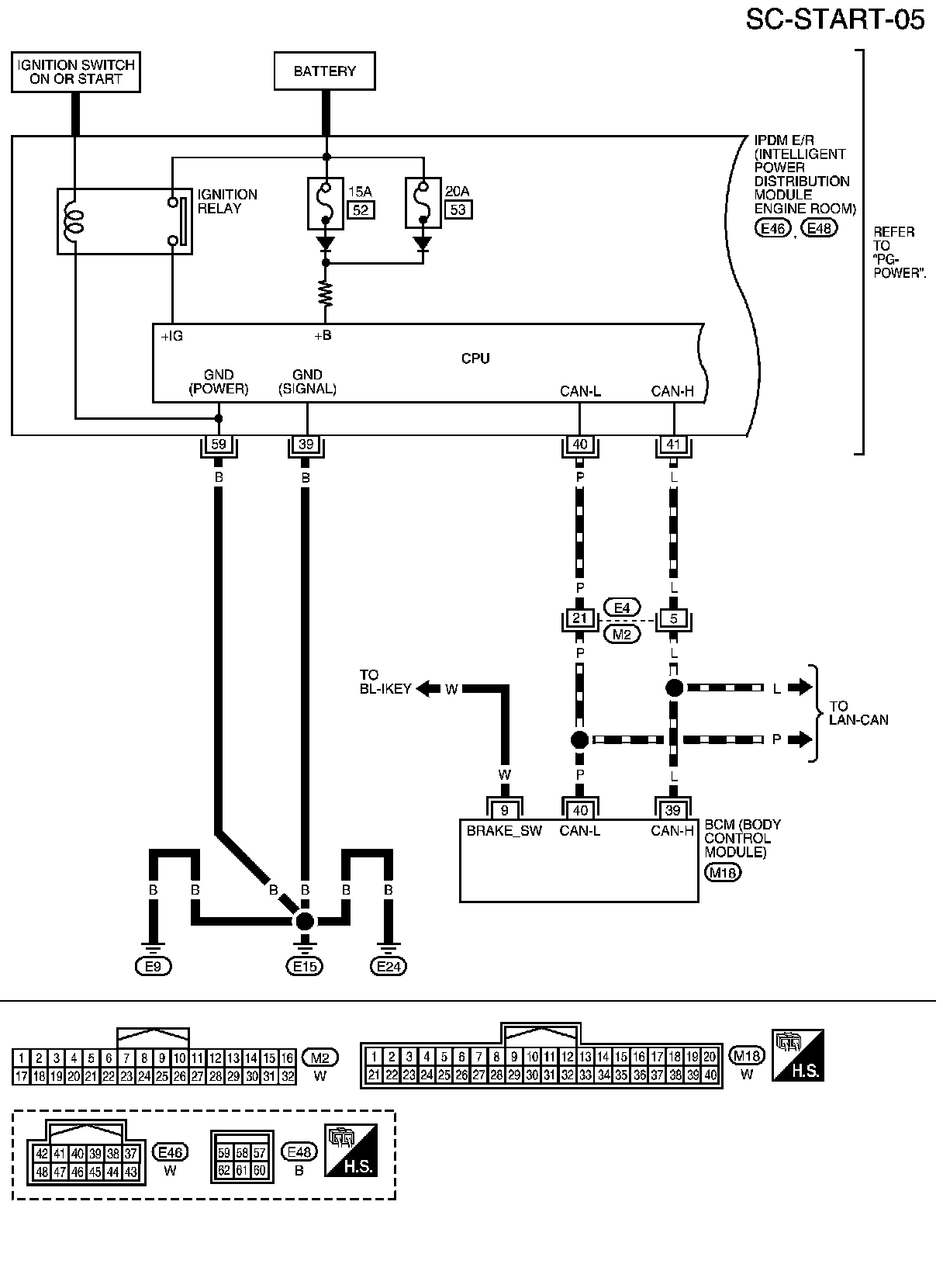

CVT Models - MR20DE











CVT Models - QR25DE
