Instruments - Cluster Illumination Is Dim

Classification: EL11-033

Reference; NTB11-087

Date: September 14, 2011

2011-2012 SENTRA;
COMBINATION METER ILLUMINATION DIM

APPLIED VEHICLES: 2011 and 2012 Sentra (B16)

IF YOU CONFIRM:

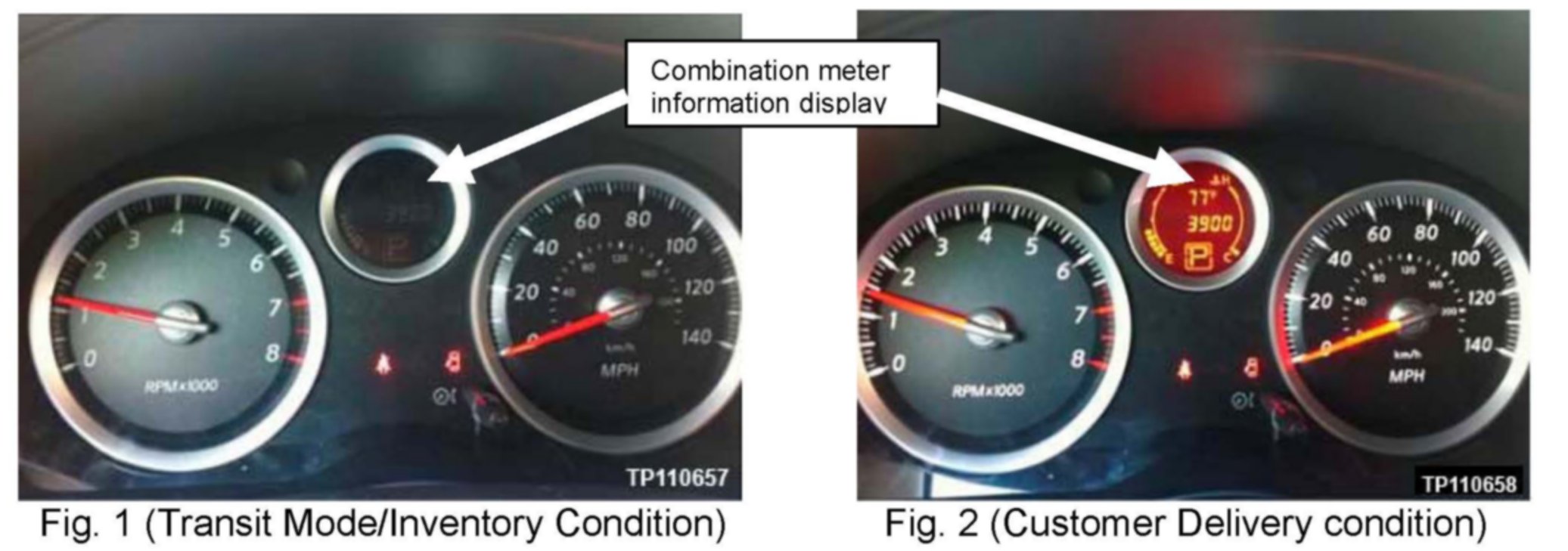

Combination meter information display is dimly lit. (See Fig. 1 above)

NOTE:
This can be normal operation if in Transit Mode/Inventory Condition (see below).

ACTIONS:

1. Before performing any repairs, make sure:

a. Vehicle is not in "Transit Mode" (if equipped).

^ Refer to NIB10-124 for "Transit Mode" details.

b. The "Extended Storage Switch" is not in the "Inventory Condition" position (if equipped).

^ Refer to NTB10-124 for "Extended Storage Switch" details.

2. If the above items check OK (vehicle is in "Customer Delivery" condition), perform repairs per the Service Manual.
