Windshield Washer Pump: Service and Repair

FRONT WIPER AND WASHER SYSTEM


Removal and Installation of Front Washer Motor


REMOVAL
1. Position aside the front fender protector RH. Component.

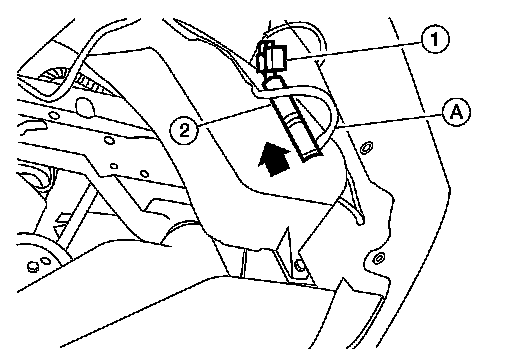

2. Disconnect washer motor connector (1) and detach the washer tube (A).
3. Pull out washer motor (2) in the direction shown. Remove the washer motor (2) from washer fluid reservoir.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
When installing washer motor, there should be no hose twists.
